THE SENTINEL DAC

---

---

The Ultimate Expression of Digital Audio - Three Steps to Hi-Fi Heaven

The MSB Technology Sentinel DAC is not just a digital-to-analog converter—it’s a revolution in high-end audio engineering. Designed for those who demand absolute sonic perfection, the Sentinel DAC represents MSB’s most ambitious project to date, combining cutting-edge technology, uncompromising craftsmanship, and decades of expertise to deliver an experience that transcends traditional boundaries.

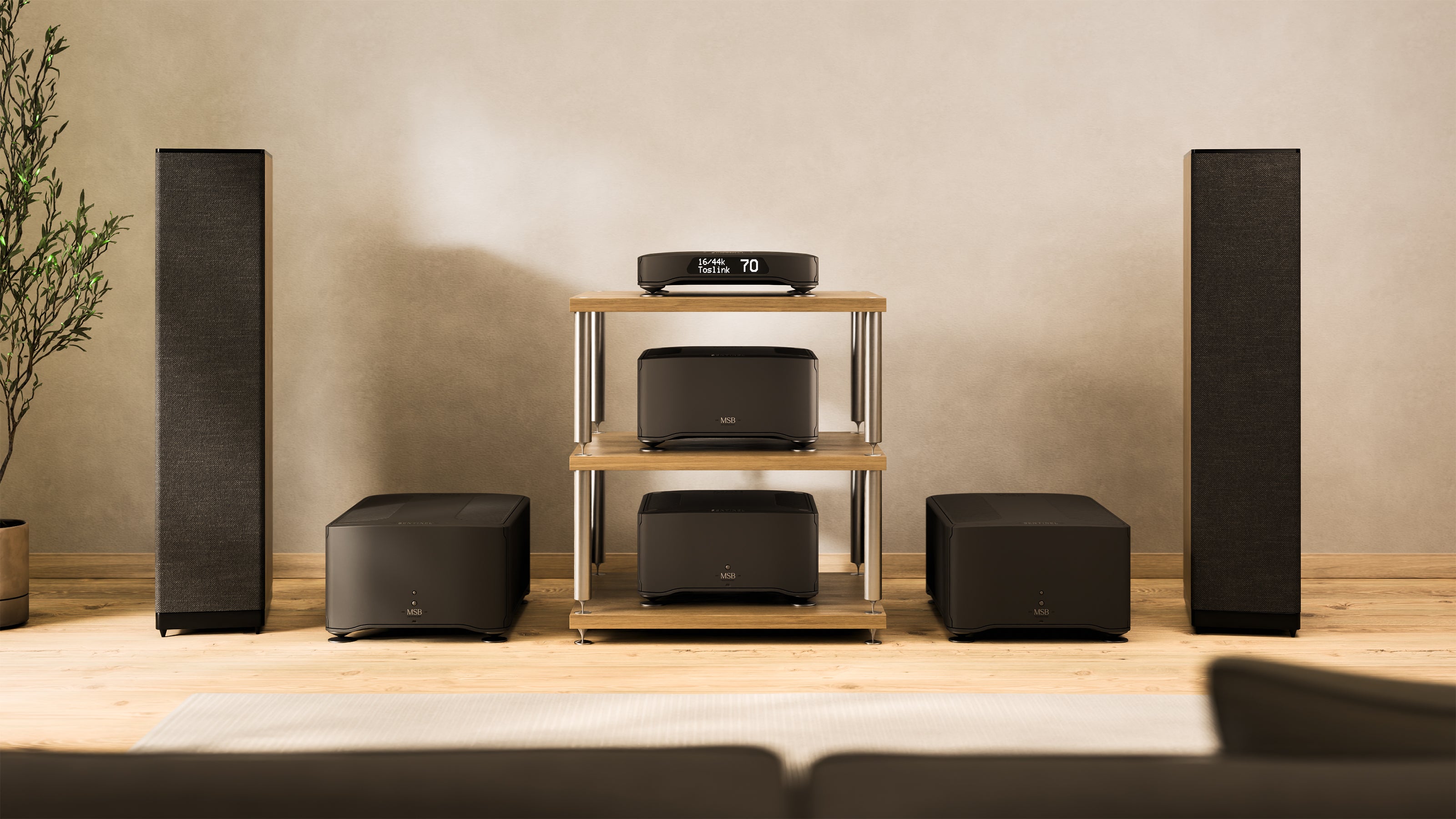

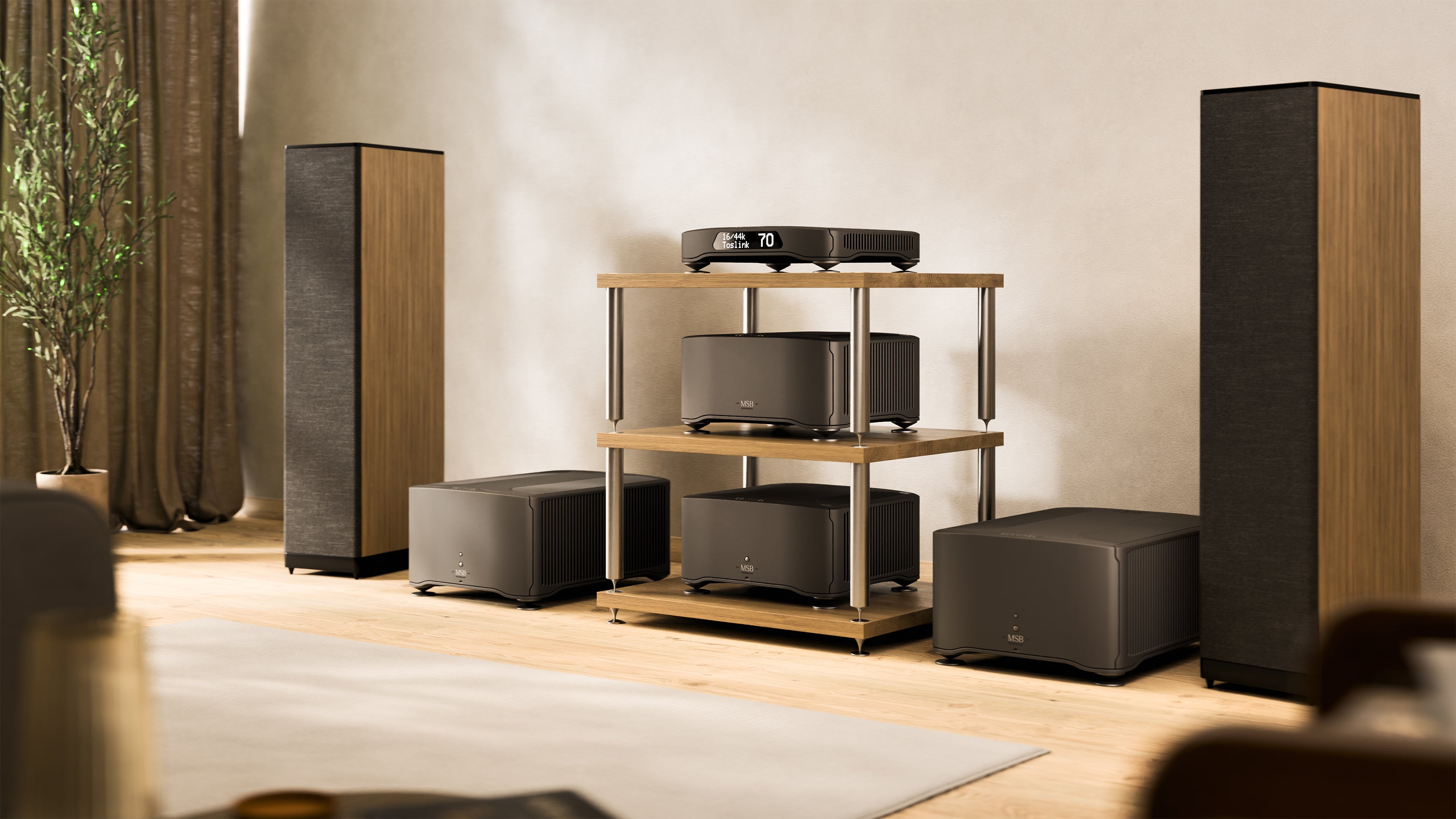

A Monumental Three-Chassis Design

The Sentinel DAC system is built around a three-chassis architecture, each component purpose-built for optimal performance and synergy:

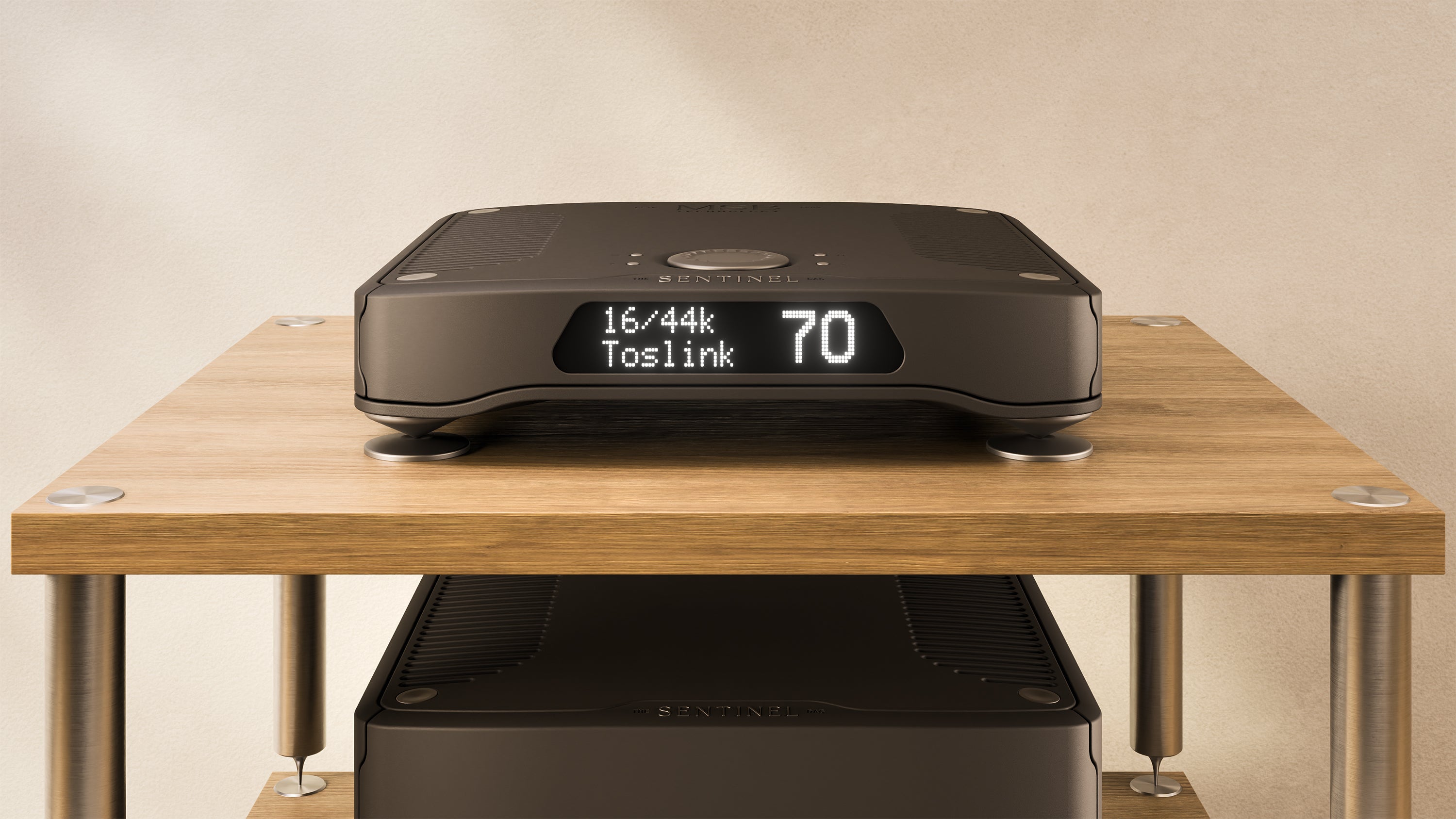

Digital Director

Handles all digital processing and user interaction. Equipped with a large, intuitive display and customizable input modules, it outputs a conversion-ready signal via fully isolated fiber optic Sentinel-Link to the Analog Converter, ensuring complete electrical isolation between digital and analog domains.

Analog Converter

Houses 32 Hybrid DAC MKII modules in a Dual Mono configuration—16 per channel—paired with the Sentinel Clock and an analog preamplifier. This design eliminates digital interference and focuses solely on meticulous analog conversion for breathtaking realism.

Power Supply

Features three independent ultra-low-noise modules: two dedicated to the left and right Mono DACs and one exclusively for the Sentinel Clock. Six custom-wound shielded toroidal transformers ensure pristine power delivery.

Breakthrough Technologies for Audiophiles

32 Hybrid DAC MKII Modules

Quadrupling previous designs from 8 to 32 modules dramatically increases signal accuracy, dynamic range, and stereo imaging. Each channel operates independently for perfect channel separation.

Bit Diffusion Technology (BDT)

Proprietary MSB innovation that distributes digital artifacts and background noise across all DAC channels, creating a holographic soundstage, fatigue-free listening, and analog-like musicality.

Sentinel Clock

Developed with a crystal wafer manufacturer, this custom ovenized oscillator is mounted on tuned, isolated platforms to minimize jitter and mechanical interference, delivering unprecedented timing precision.

Fiber Optic Sentinel-Link Isolation

Complete electrical separation between digital and analog domains ensures pristine signal integrity—no interference, no compromise.

Precision Craftsmanship

Every detail of the Sentinel DAC reflects MSB’s obsession with perfection:

• Billet Aluminum Chassis crafted using advanced 5-axis machining for structural integrity and thermal stability.


• Stainless steel nameplate engraved with a 0.02” endmill—microscopic precision that exemplifies MSB’s commitment to detail.


• Hidden 3D circuit layouts for optimal electrical synergy and heat management.

Audiophile Listening Experience

The Sentinel DAC delivers music with breathtaking realism—effortless dynamics, infinite resolution, and a sound so pure it feels like analog perfection. Owners describe it as a musical masterpiece, offering an expansive soundstage, lifelike imaging, and fatigue-free listening for hours.

Technical Highlights

---

---

The Sentinel Digital Director

• Includes:
  • 4 Digital Input Modules configured for each owner and system
  • Easy-to-read system display and intuitive user controls
  • Chassis Dimensions: 17.5in x 16.5in x 4.3in (444.5mm x 419.1mm x 108mm)
  • 15A IEC Power Input

The Sentinel Analog Converter

• Dual Mono DAC design
  • Each Mono DAC receives a unique digital signal over the monaural fiber optic Sentinel-Link.
  • Includes 16 Hybrid DAC MKII Modules per channel.


• Fully independent left / right analog preamp.
  • 2 XLR Analog Inputs
  • 2 RCA Analog Inputs
  • 2 XLR Analog outputs per channel (2 per channel)
  • Confluence Output for The Sentinel Amp


• Biamping Modes
  • Two XLR Analog outputs per Mono 16-DAC channel, one for each Amp.
  • One XLR Analog output per four 8-DAC channels, one DAC for each Amp output.


• Chassis Dimensions: 17.5in x 16.5in x 9.43in (444.5mm x 419.1mm x 239.6mm)


• Power is supplied by the Sentinel Power Supply.

The Sentinel Power Supply

• Three independent Power supplies each with independent outputs
  • Left Mono DAC Power Supply
  • Right Mono DAC Power Supply
  • Clock Power supply


• Power transmitted to the Analog Converter over three Summit Power Cables


• Six Ultra-low noise custom wound shielded toroidal transformers


• Chassis Dimensions: 17.5in x 16.5in x 9.43in (444.5mm x 419.1mm x 239.6mm)


• 15A IEC Power Input

A Note on Setup:

The Sentinel System is extremely high-powered compared to other DACs. These units must be placed in a well-ventilated space and out of direct sunlight. In hotter climates, air conditioning will help extend the life of electrical components. For best results, do not stack this system. Instead, place each unit on an individual shelf or surface with plenty of clearance to the sides and above each chassis to allow airflow.
