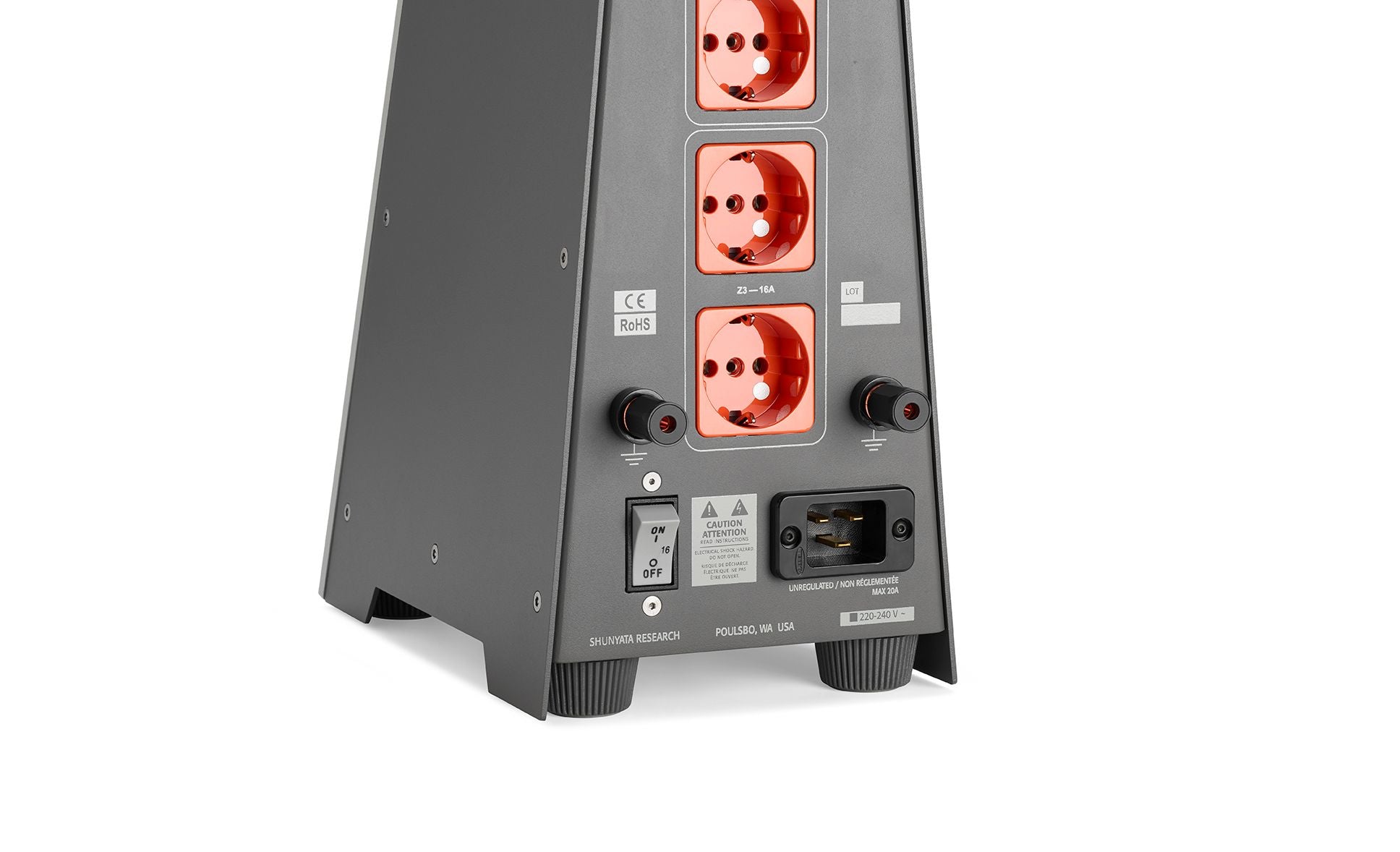

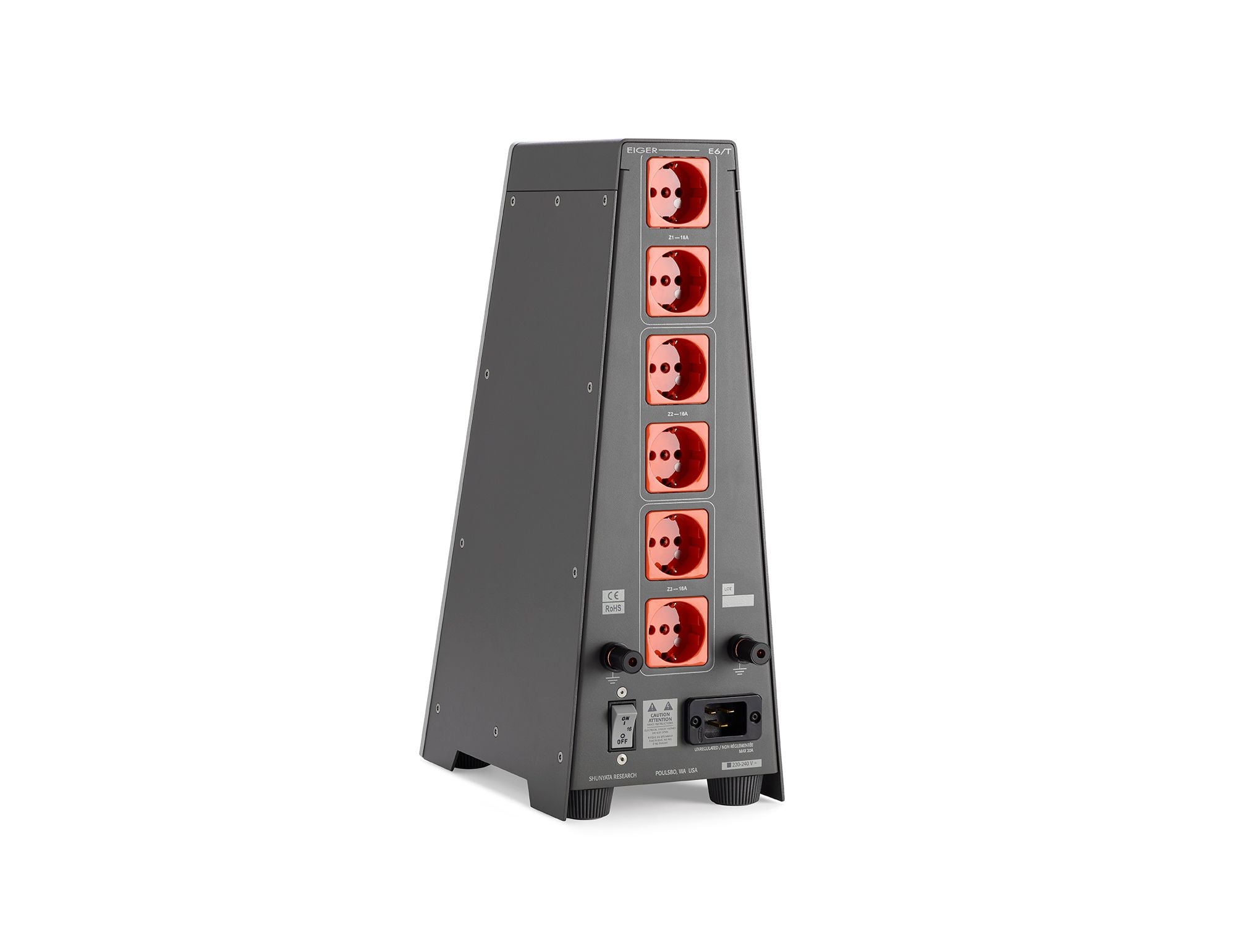

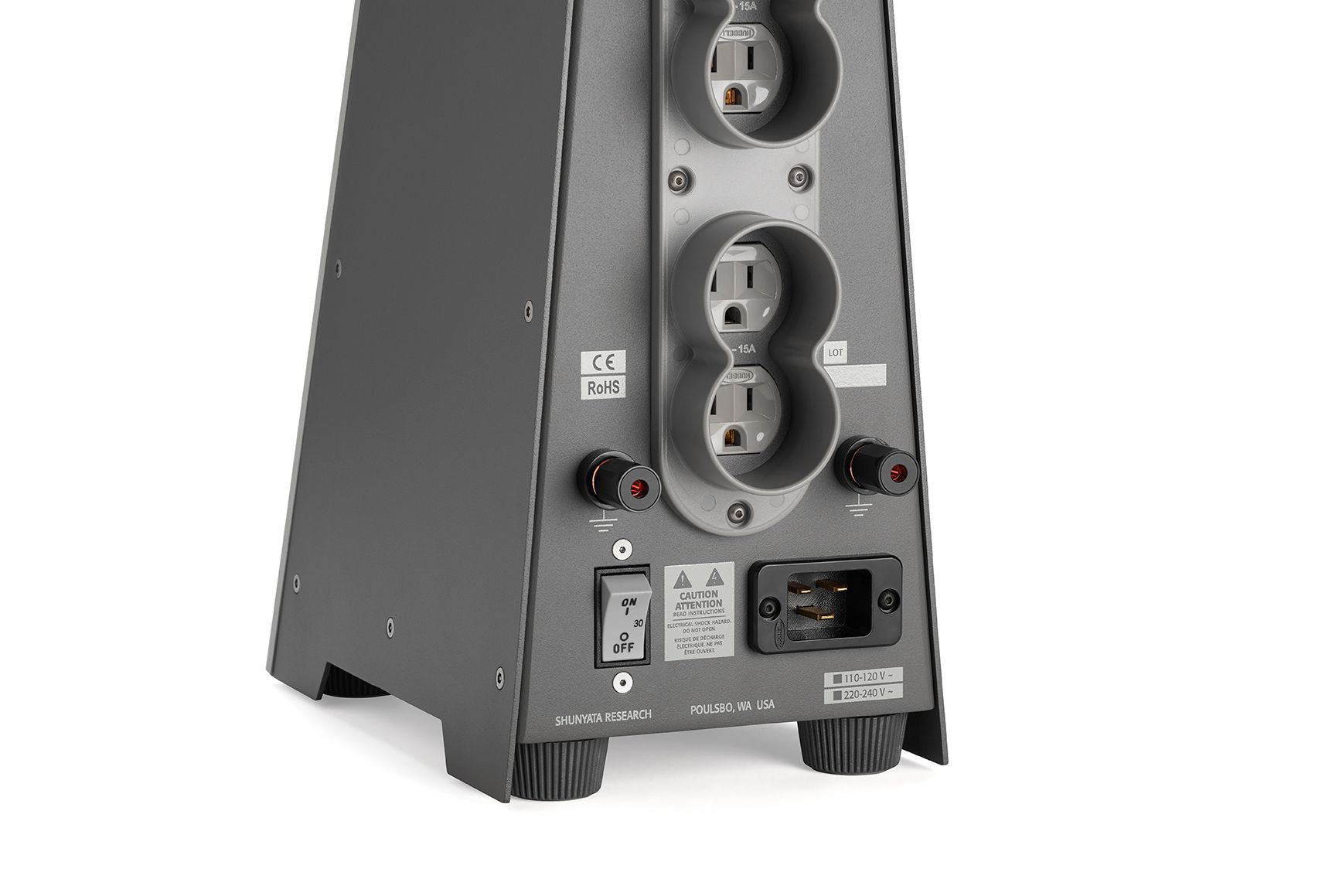

EIGER 6T

---

INNOVATION & EXPANDED RANGE

At essentially half the size and half the price, while retaining 80% of the performance of the Everest, the EIGER is the solution to that quandary.

The EIGER’s iconic pyramidal tower shape has a narrow front profile allowing it to be placed alongside an audio rack without taking up valuable shelf space. The close proximity to the audio equipment allows for shorter and tidier AC power cable routing.

EIGER is designed using the patented technologies that have revolutionized performance in the world’s finest heart-surgery labs and recording studios. QR/BB™ technology, a non current-limiting electromagnetic breaker, and massive internal wiring allow it to power entire systems, including high-powered amplifiers. Its proprietary CCI™ medical-grade filters reduce noise by an astounding –50db.

In an age where prices for the finest in audio-visual performance continue to rise, EIGER distinguishes itself by delivering reference-caliber performance and cutting edge technology at a price that’s within many system budgets.

TECHNOLOGY

	DYNAMIC TRANSIENT CURRENT DELIVERY DTCD™ Analysis is a technique that measures instantaneous current through low impedance electrical conductors and contacts.  Shunyata Research uses it to optimize the design, specification and construction of parts and materials to ensure maximum current delivery performance.  Each part, conductor, noise circuit and material allows for maximum throughput of instantaneous current. Listeners will experience earth-shaking low-frequency performance from even the highest-current amplifiers as well as dynamic contrasts unheard of outside of a live event.  More than any other design parameter, Shunyata Research’s skill in eliminating resistance and maximizing peak-current delivery is unmatched.
	‌‌CCI™ filters have the unique ability to reduce component-generated power line noise without inhibiting DTCD® (dynamic transient current delivery). This unique filter element prevents power line noise from one component contaminating the other adjacent electronic components. Shunyata Research’s ‌‌CCI™ filter modules consist of proprietary multi-stage filters that reduce power supply-generated noise without the use of heavy transformers, coils or large capacitors.
	The ‌‌QR/BB™ is a patented device which dramatically enhances the perception of dynamic impact and timing when connected to amplifiers or other high-current electronics. The ‌‌QR/BB™ is unique in that it provides a local reserve of energy, or Coulomb charge, that mitigates the inductive reactance of the AC power line without using coils, transformers or capacitors. The ‌‌QR/BB™ acts as an instantaneous energy reserve when placed in-line with an AC power supply. — Patent Number: US 10,031,536 —
	The ‌‌NIC™ (‌‌Noise Isolation Chamber) is a patented Shunyata Research device that reduces high frequency power line noise. It employs a ferroelectric substance that actually absorbs high frequency noise without any of the reactive negatives associated with transformers and large capacitors as used in conventional power conditioners. ~ Patent US 8,658,892 ~
	KPIP v2™ Shunyata Research’s proprietary Kinetic Phase Inversion Process includes four days of continuous KPIP v2™ processing which refines conductor metals at a molecular level. This dramatically reduces burn-in time and significantly improves sonic performance, delivering a relaxed and life-like presentation. When compared to the original process, KPIP v2™ represents a dramatic performance upgrade on par with a component-level upgrade.
	After years of research into the negative effects of vibration, Shunyata Research developed its own ‌vibration isolation using sub-miniature accelerometers that accurately measure the effects of floor and airborne sound waves. We use it in the development of vibration absorbing materials such as energy absorbing footers, AC outlet gaskets and chassis dampeners that reduce resonant vibration. Recognizing that vibration control is important to overall performance, our chassis are made with optimally dampened steel and aluminum, rather than plastic or thin-wall sheet metals.

FEATURES

ZONES OF ISOLATION

The EIGER features three zones of isolation. The EIGER is configured in such a way that each duplex is individually isolated. This design allows for significant reduction of CCI™ regardless of system configuration.

ArNi® CONDUCTORS

Shunyata Research has developed a proprietary line of ArNi® conductors. They are made with certified OFE C10100 (Certified ASTM F68) copper. The wire strands are arrayed in a proprietary hollow tube VTX™ geometry that reduces skin effects. ArNi® conductors are treated with Shunyata Research’s exclusive Kinetic Phase Inversion ProcessTM (KPIP™) for a period of 4 days.


HIGH CURRENT CAPABILITY

The EIGER series power distributors have a 20-Amp continuous rating, ensuring unfettered power delivery to entire systems, including high-powered amplifiers. Advanced electromagnetic breakers combined with massive 8-gauge ArNi® wiring maximize dynamic contrast and bass impact.

HYDRAULIC ELECTROMAGNETIC BREAKER

Common power conditioners use fuses or thermal breakers for over-current protection. When heavily loaded, those devices cause voltage drops, increased contact impedance, thermal noise, excessive heat generation, and current-limiting effects. The EIGER uses a more advanced solution called a hydraulic electromagnetic breaker that can operate right up to the maximum current rating without the limitations of fuses or thermal breakers.

HIGH-QUALITY OUTLETS

The EIGER uses premium Hubbell outlets that use a triple-wipe contact system and have broad contact areas to grip a plug from three different sides, providing superior electrical integrity. Hubbell outlets feature a solid brass back-strap that ensures a reliable ground connection that may reduce noise and hum. The European model EIGER include mains sockets that feature copper alloy contacts designed to accept large-gauge conductors.

CABLE CRADLE SUPPORT SYSTEM

The EIGER includes Shunyata Research’s unique solution for the problem of heavy high-end power cables. The Cable Cradle supports the weight of the power cables, preventing them from pulling away from the outlet. This system is designed to ensure reliable and secure electrical connections. The Cable Cradle is only available on US and Asia models.

VIBRATION MANAGEMENT

Mechanical vibration can be very destructive to system performance. The EIGER was designed from its inception to include advanced forms of vibration control that improve the recovery of subtle musical detail and nuance. All chassis panels and internal structures are treated with vibration dampening panels. Each outlet is isolated from the chassis with a vibration-dampening gasket that reduces vibration conducted through the AC cables. All internal modules, filters, and electronics are encapsulated in a vibration-absorbent compound.

VIBRATION-DAMPENING FOOTER

The EIGER benefits from Shunyata Research’s years of research into the negative effects of vibration. We have developed own own sub-miniature accelerometers to accurately measure the effects of floor and airborne sound waves. We use these in the development of vibration absorbing materials such as energy absorbing footers, AC outlet gaskets and chassis dampeners that reduce resonant vibration. Recognizing that vibration control is important to overall performance, the EIGER chassis are made with dampened steel and aluminum, rather than plastic or thin-wall sheet metals.

KPIP v2™ PROCESSOR

Each EIGER is treated with Shunyata Research’s proprietary Kinetic Phase Inversion Process (KPIP v2™). The KPIP v2™ dramatically reduces burn-in time and significantly improves sonic performance.

CRYOGENIC COMPONENTS

Many of the electrical components in the EIGER are treated in Shunyata Research’s own advanced computer-controlled cryogenics lab. Further cryogenic treatment of the unit is strongly discouraged, and will void your warranty.

SPECIFICATION

Maximum Voltage: 90 – 125 VAC r.m.s. unregulated (US) 220-240 VAC r.m.s. unregulated (EU, AS) Input Current Ratings: Input current maximum (US): 20 A Input current maximum (EU): 16 A Peak instantaneous current @ 10 ms: >1000 A Output Current Ratings: Zone 1 output current max: 20 A Zone 2 output current max: 20 A Zone 3 output current max: 20 A Transient Suppression: Maximum Transient Protection: 40,000 A @ 8/50 μs Over-Current Protection: Hydraulic Electromagnetic Breaker Wiring System: 10 & 8 gauge ArNi® Conductors VTX conductor geometry OFE C10100 copper Ratings: 600 VAC 105° C Noise Reduction TechnologyNIC™ Noise Isolation Chambers (patented) QR/BB™ Module (patented) Trident Transient Protection Module CCI™ v4 Noise Filters (3) KPIP™ Process

Noise Supression Input to Output (100 kHz – 30 MHz): > 50 dB reduction Zone to Zone (100 kHz – 30 MHz): > 30 dB reduction Connectors & Sockets: Input connector: IEC-C19R Outlets (US): 6 NEMA 5-20P Outlets (EU): 6 CEE 7/3 KPIP v2 Processing: 4-days Isolation Zones: 3 individual zones Vibration Control: Shunyata Polymer Isolation Footer Construction: Powder coated steel chassis – 16 gauge Anodized aluminum faceplate GPNR: Length: 127 mm Diameter: 38 mm Dimensions: Width: 6.2 inches (15.75 cm) Depth: 9.1 inches (13.12 cm) Height: 16.7 inches (42.42 cm) Wei
