DELTA-X POWER DISTRIBUTOR

---

The Shunyata Research Delta-X Power Distributor is an eight-outlet high-performance power distributor engineered to reduce multiple forms of high-frequency noise while preserving the instantaneous current delivery demanded by modern audio electronics. Drawing heavily from technologies developed for the award-winning Shunyata Research Everest-X, Delta-X brings advanced power management and exceptional price-to-performance value to high-end audio, professional recording, mastering, and home theater systems.

Rather than relying on conventional power conditioning techniques that can restrict transient current, Delta-X was engineered through scientific measurement and electrical performance analysis to address RFI, EMI, power-line noise, and component-generated noise without compromising dynamic current delivery.

The result is a quieter, cleaner electrical environment that allows amplifiers, DACs, preamplifiers, music servers, source components, and other sensitive electronics to perform at their full potential.

BREAKING NEW GROUND IN POWER DISTRIBUTION

The Delta-X represents a major evolution in high-performance AC power distribution. Its architecture combines Shunyata Research's proprietary technologies with a high-current 8-gauge ArNi® VTX™ buss system and 12-gauge ArNi® VTX™ internal wiring to create an exceptionally low-impedance path between the AC inlet and connected components.

With four isolated zones, Delta-X helps prevent noise generated by one component from contaminating other electronics connected to the same power distributor.

This approach makes Delta-X particularly effective in complex audio systems where multiple digital, analog, amplification, and networking components share the same AC environment.

THE TRUE SOUND OF SILENCE

Power-line noise is not limited to audible hum, buzz, or hiss. High-frequency electrical noise can also obscure low-level detail, compromise timing, and reduce the dimensionality of reproduced music.

The Delta-X addresses these less obvious forms of electrical contamination, creating a quieter operating environment for connected components.

The result can be heard as:

• Lower perceived background noise


• Greater micro-detail and resolution


• Improved timing and transient precision


• More focused imaging


• Greater soundstage depth and dimensionality


• Increased dynamic contrast


• More impactful bass and transient energy


• A more natural and immersive presentation

By reducing the electrical noise floor without sacrificing dynamic current delivery, Delta-X allows familiar recordings to reveal previously masked layers of musical and spatial information.

FOUR ZONES OF ELECTRICAL ISOLATION

Delta-X incorporates four isolated zones to help prevent noise from one connected component from spreading through the power distribution system.

This is particularly valuable in sophisticated systems that combine:

• Power amplifiers


• Integrated amplifiers


• Preamplifiers


• DACs


• Network streamers


• Music servers


• CD transports


• Phono stages


• Home theater electronics

By controlling component-generated noise at the power distribution level, Delta-X helps create a cleaner environment for sensitive electronics.

PREMIUM MECHANICAL CONSTRUCTION

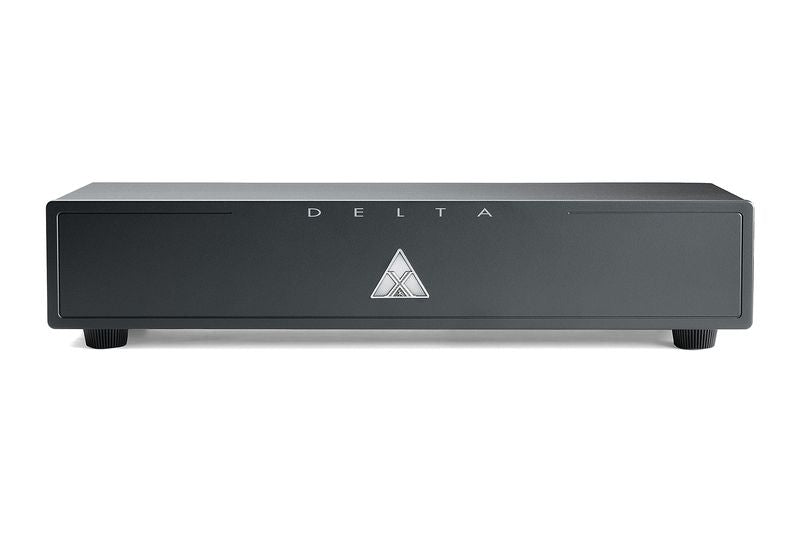

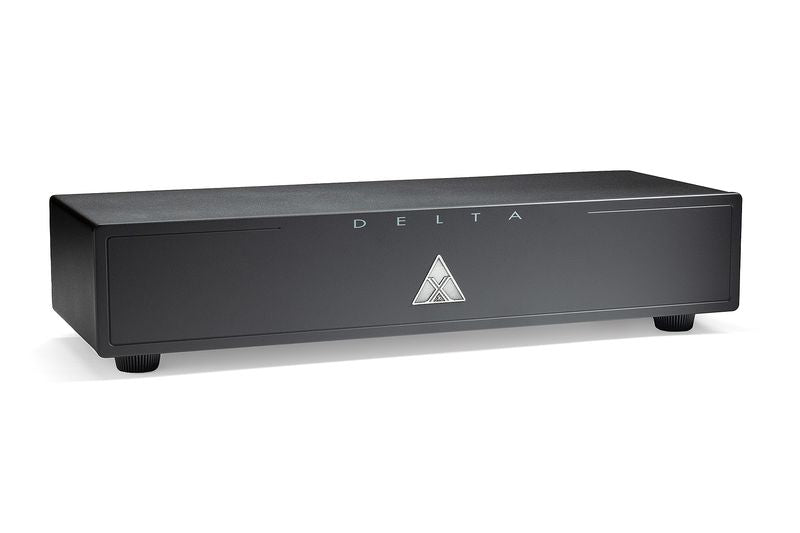

The Delta-X is housed in a robust all-aluminum chassis with an anodized aluminum faceplate, providing a combination of mechanical stability, durability, and understated premium aesthetics.

Shunyata Research also incorporates vibration-control measures throughout the design, including:

• Internal vibration-dampening panels


• AC outlet dampening gaskets on US/AS versions


• Shunyata Polymer Footers

These mechanical refinements help isolate sensitive components from unwanted vibration while complementing the Delta-X's electrical engineering.

BUILT FOR HIGH END AUDIO SYSTEMS

The Shunyata Research Delta-X is designed for demanding applications where power quality can have a meaningful effect on system performance.

It is ideally suited for:

High-End Stereo Systems

Improve the electrical environment surrounding amplifiers, DACs, preamplifiers, and source components.

Audiophile Music Streaming Systems

Reduce network and digital component-generated noise while preserving the transient performance required by high-resolution playback.

Recording and Mastering Studios

Provide high-performance AC power distribution for critical monitoring, recording, and mastering equipment.

Professional Audio Systems

Support sensitive electronics in demanding production environments.

Home Theater Systems

Reduce power-line noise while maintaining the high-current delivery required by powerful AV and amplification systems.

TECHNOLOGY

	TAPc (Transverse Axial Polarizer) is a patent-pending technology that couples to the electromagnetic fields surrounding electrical or signal conductors. TAPc behaves like a polarizer, passively reducing electromagnetic distortion that presents as a type of glare or compression on sound or images.
	QR/BB™ is a patented technology which acts as an instantaneous energy reserve when placed in-line with an AC power supply. It dramatically enhances the perception of dynamic impact, timing and scale in sound when connected to amplifiers or other analog-output electronics. ~ Patent: US 10,031,536 ~
	Shunyata Research’s proprietary Kinetic Phase Inversion Process (KPIP v2™) refines conductor and terminal metals at the atomic level. This dramatically reduces burn-in time and significantly improves sonic performance, delivering a relaxed and life-like presentation.
	The NIC™ (Noise Isolation Chamber) is a patented technology that reduces high frequency power line noise. It absorbs high frequency noise without any of the reactive negatives associated with transformers, chokes, coils or large capacitors used in more conventional power conditioners. ~ Patent US 8,658,892 ~
	GPNR (Ground Plane Noise Reduction) is an advanced ground noise filtering system derived from our Altaira ground hubs. GPNR provides continuous ground-plane noise reduction and dramatically lowers the system’s noise floor, preserving clarity, enhancing timing precision, and revealing subtle musical and spatial detail.
	CCI™ filters have the unique ability to reduce component-generated power line noise without inhibiting DTCD® (Dynamic Transient Current Delivery). This unique micro-filtering approach prevents power line noise from one component from contaminating other electronics in the system.
	DTCD® Analysis is a proprietary measurement technique developed to measure instantaneous current flow through very low impedance electrical conductors and contacts. It is used to optimize the design of electrical parts and materials, ensuring optimal instantaneous current delivery.

SPECIFICATIONS

Maximum Voltage: 90-125 VAC r.m.s. unregulated (US) 220-240 VAC r.m.s. unregulated (EU, AS, AU) Input Current Ratings: Maximum Continuous Current: 20A (US, AS) Maximum Continuous Current: 16A (UK, EU, AU) Output Current Ratings: US/AS: Max Current/Outlet 15A EU: Max Current/Socket 16A AU: Max Current/Socket 10A UK: Max Current/Socket 13A Transient Suppression: Maximum Transient Protection: 40,000 A @ 8/50 μs Over-Current Protection: Hydraulic Electromagnetic Breaker Wiring System: 8 gauge ArNi® VTX™ Buss System 12 gauge ArNi® VTX™ Wiring Ratings: 600 V 105° C Noise Suppression: Input to Output (100 kHz – 30 MHz): > 50 dB reduction Zone to Zone (100 kHz – 30 MHz): > 60 dB reduction

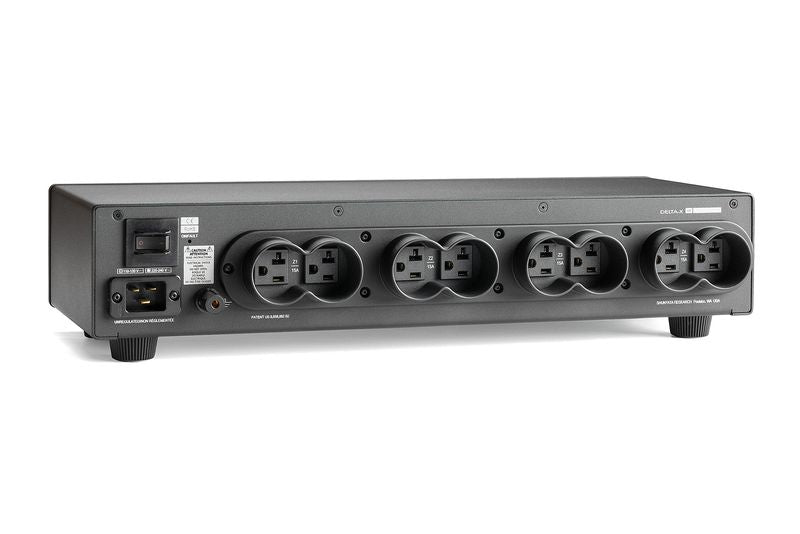

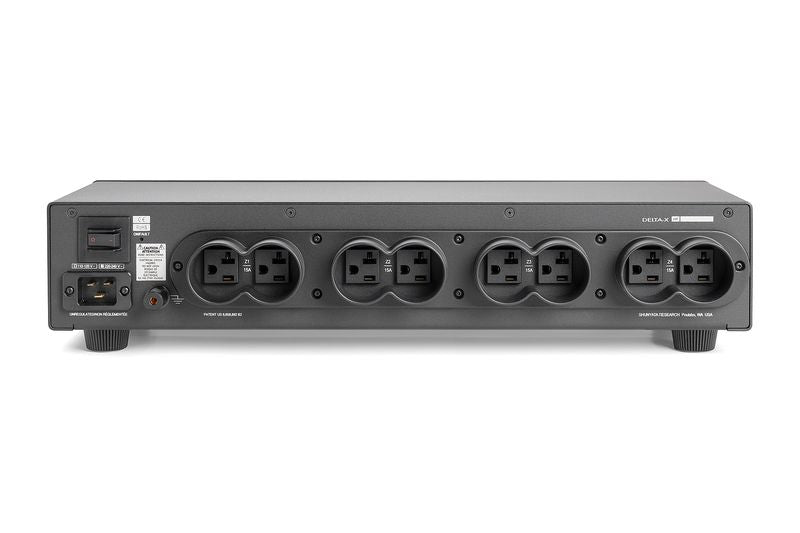

Outlets & Connectors: Inlet: IEC C19R US/AS Outlets: 8 NEMA 5-20R EU Sockets: 8 CEE 7/3 AU Sockets: 8 AS/NZS 31123 UK Sockets: 7 BS-1363 (3 pin) Zones of Isolation: 4 Zones KPIP v2 Processing: 4-days Vibration Control: Vibration dampening panels (internal) AC outlet dampening gaskets (US/AS) Shunyata Polymer Footer Construction: All aluminum chassis Anodized, aluminum faceplate Dimensions: Width: 21.0 inches (53.34 cm) Depth: 9.0 inches (22.86 cm) Height: 4.0 inches (10.16 cm) Weight: 14.2 lbs (6.44 kg)
