REVIVAL AUDIO ATALANTE 3

---

REDEFINE THE LEVEL OF BOOKSHELF LOUDSPEAKERS

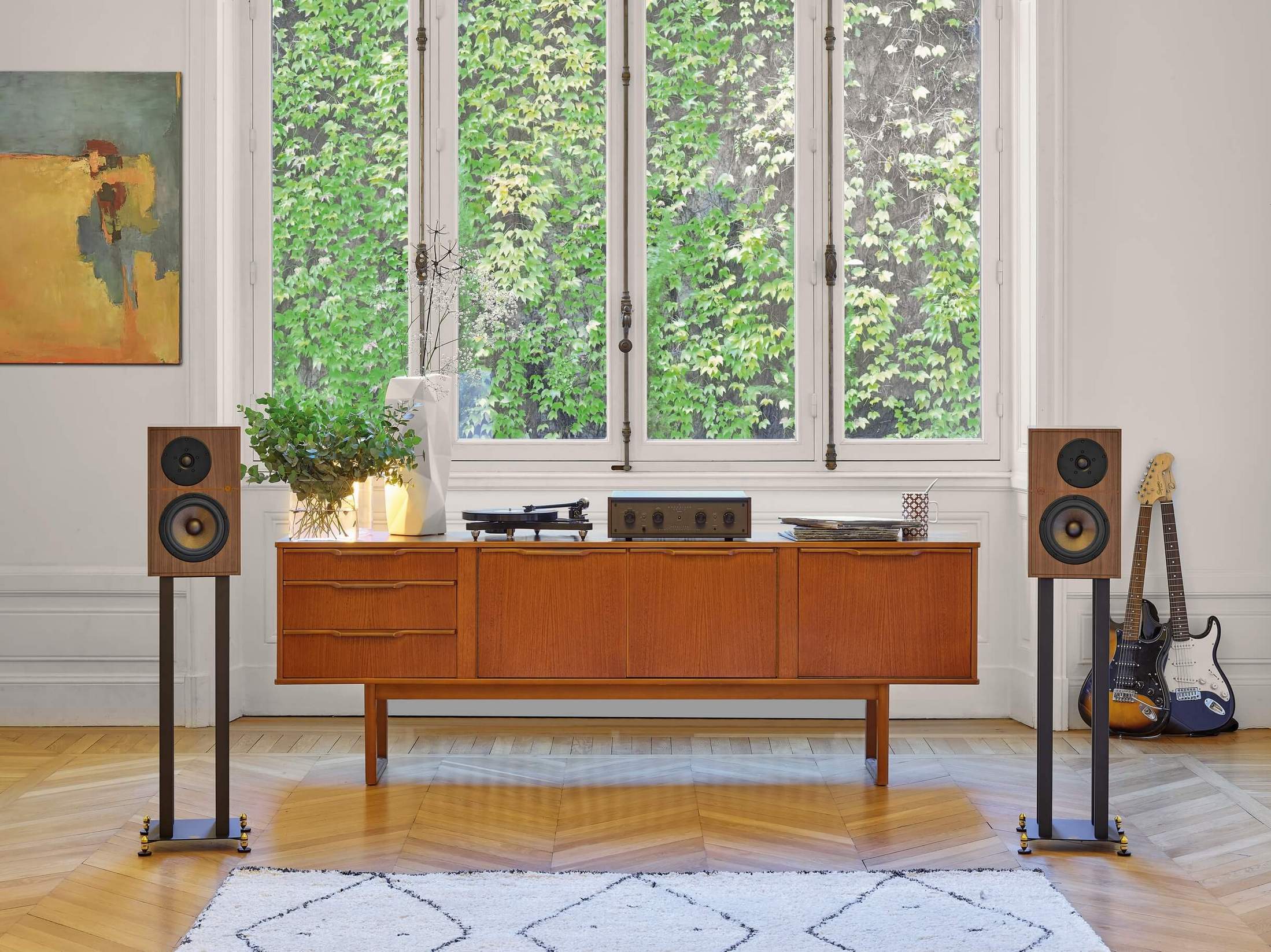

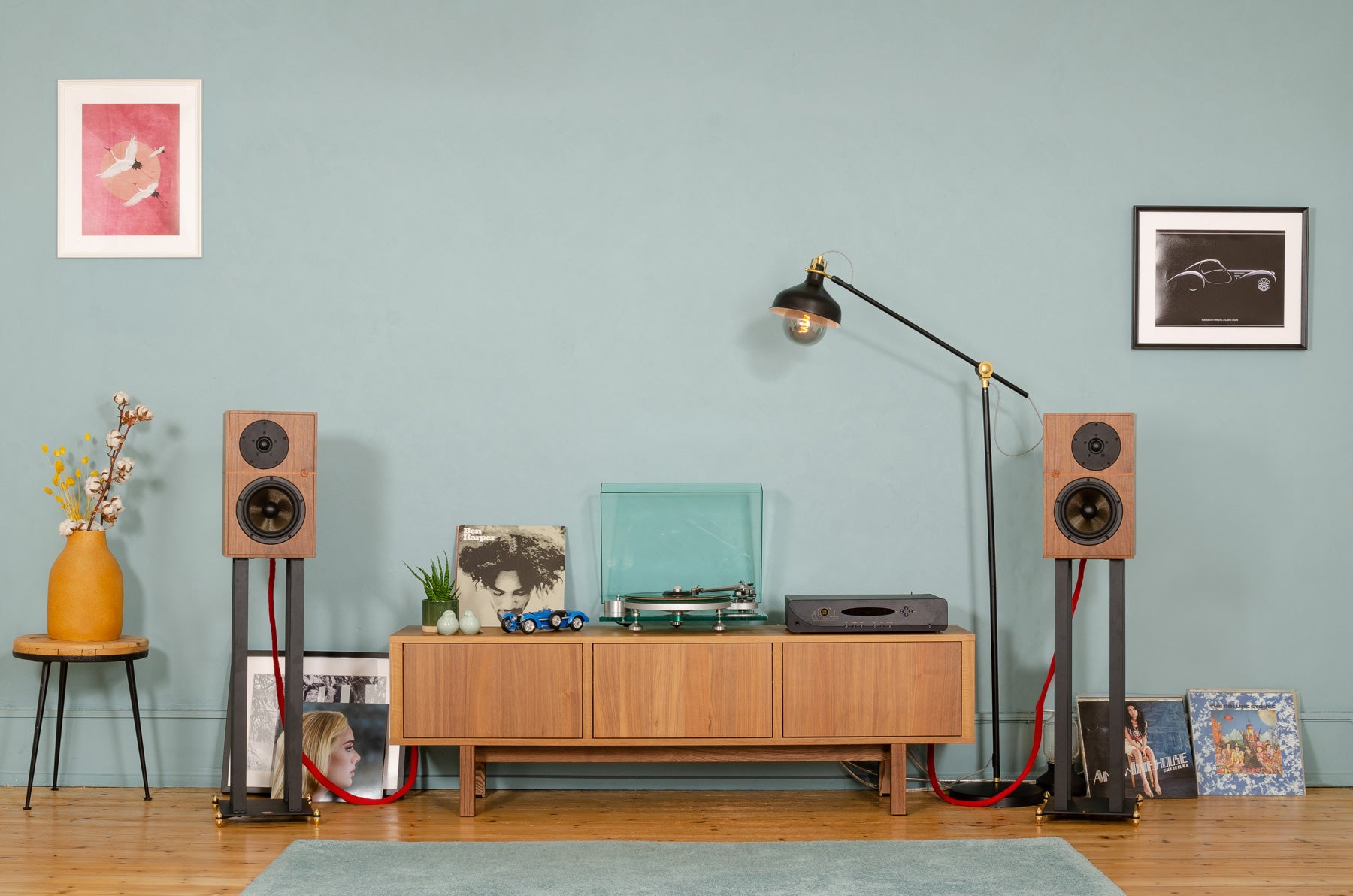

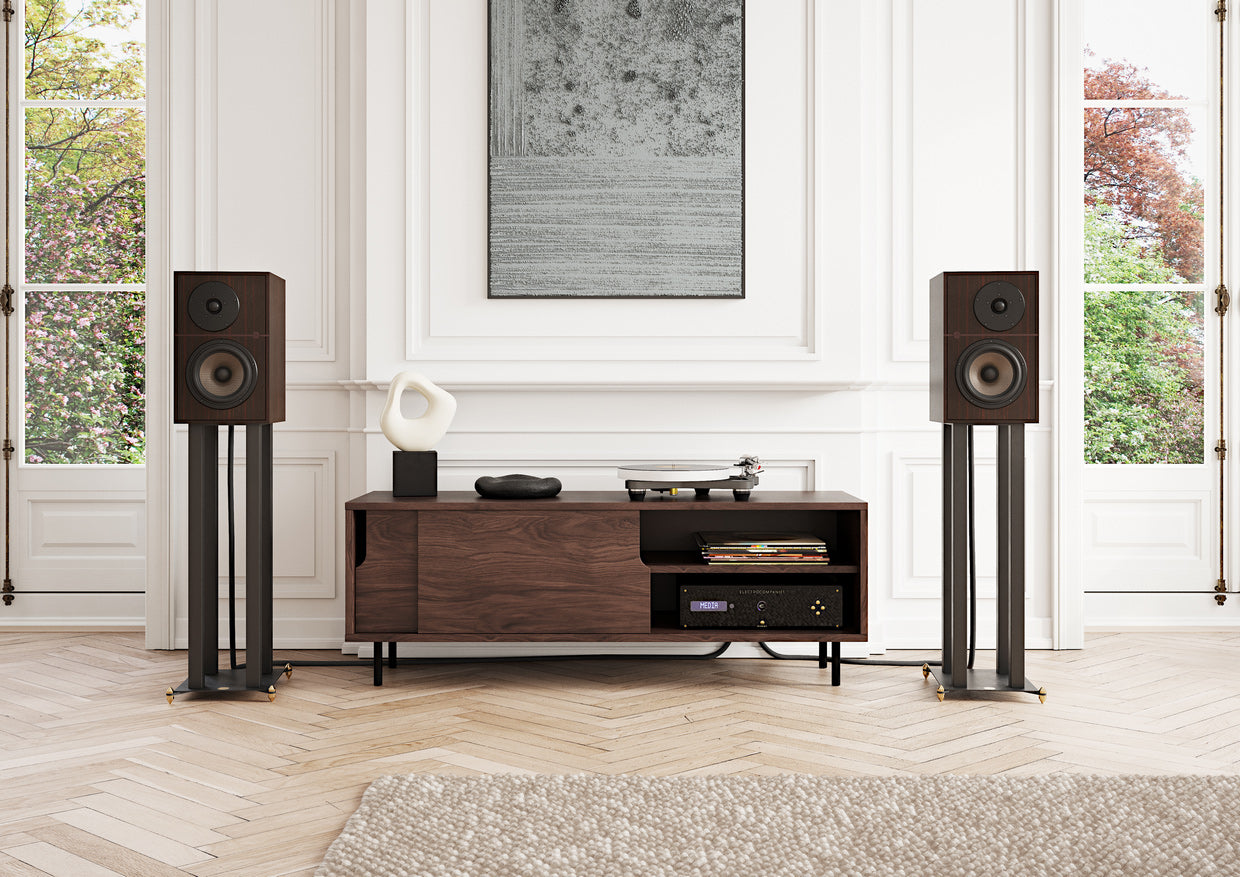

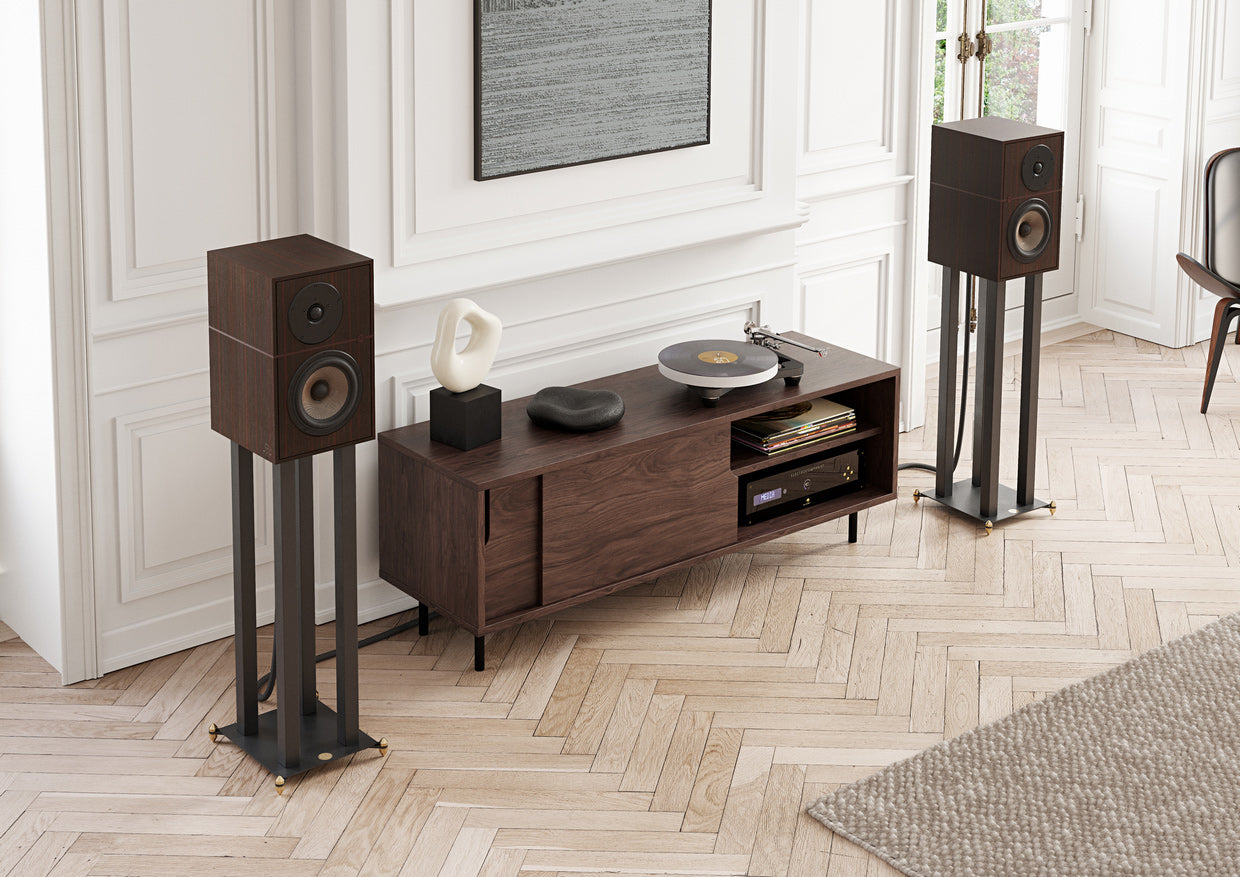

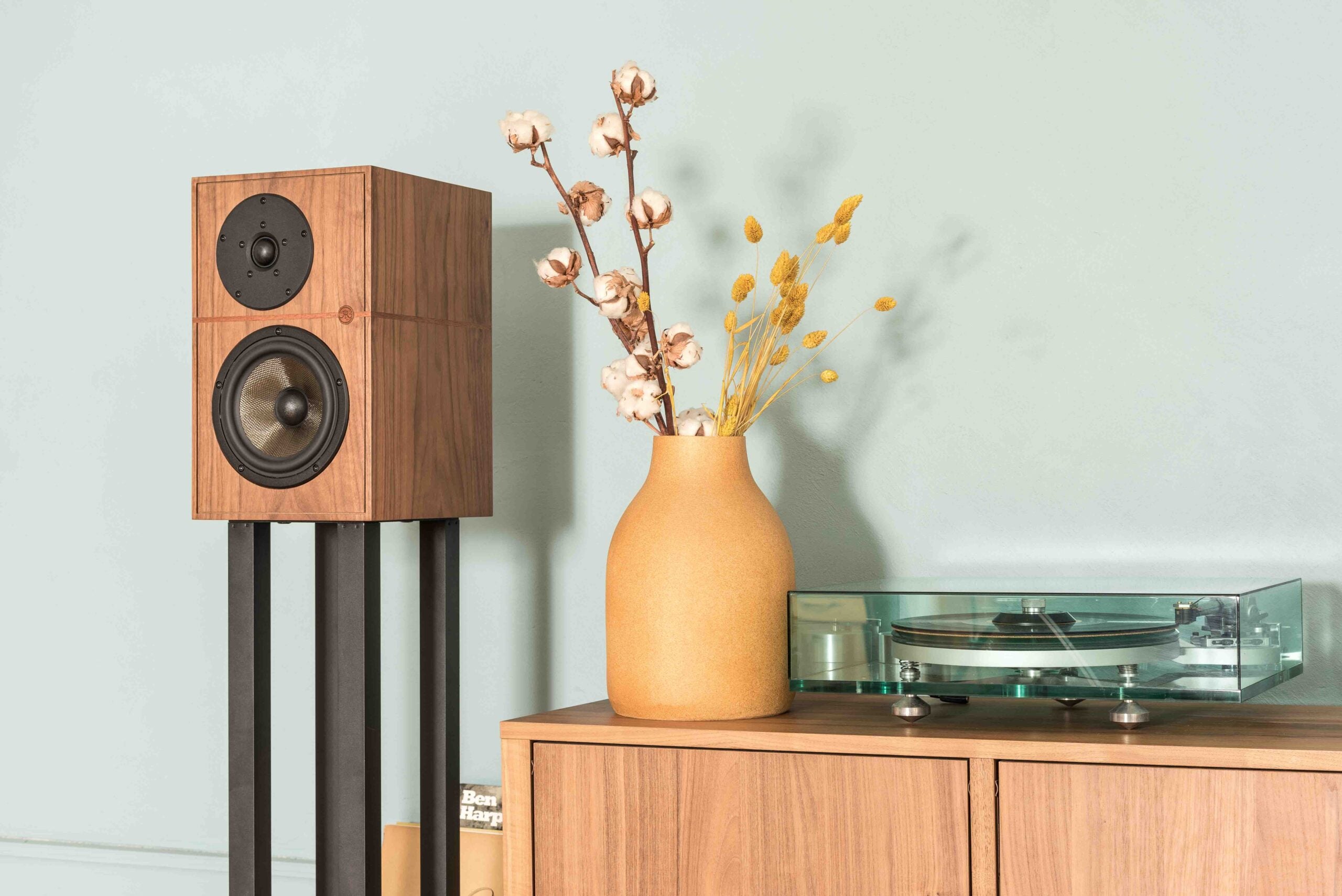

The Revival Audio ATALANTE 3 is a high-end 2-way bookshelf loudspeaker that delivers remarkable scale, detail, and musicality from a compact enclosure. Proudly engineered and manufactured in France, ATALANTE 3 represents Revival Audio’s first loudspeaker model and draws on decades of acoustic engineering expertise.

Designed for audiophiles seeking exceptional performance without the footprint of a large floorstanding speaker, ATALANTE 3 combines Revival Audio’s proprietary RASC™ tweeter, patented ARID™ technology, and innovative BSC™ Basalt Sandwich Construction woofer to deliver a remarkably open, dynamic, and natural presentation.

Compact in size but ambitious in performance, ATALANTE 3 is designed to bring the emotion and realism of high-end audio into a wide range of listening environments.

FRENCH DESIGN AND CRAFTSMANSHIP

The ATALANTE 3 reflects Revival Audio’s philosophy that sound is an art as well as a science.

Its distinctive aesthetic was developed in collaboration with the award-winning A+A COOREN Design Studio in Paris, combining French and Japanese design influences with a refined retro character.

Premium details include a carefully selected walnut veneer, distinctive belt-and-knot styling, a laser-etched Revival Audio logo, and a two-piece grille.

The result is a bookshelf speaker that functions as both a high-performance audio component and an elegant piece of interior design.

RASC™ 28MM SOFT-DOME TWEETER

DETAILED REPRODUCTION BEYOND EXPECTATIONS

At the heart of ATALANTE 3’s high-frequency performance is a 28 mm (1 1/8-inch) RASC™ soft-dome tweeter developed using Revival Audio’s proprietary acoustic technologies.

The tweeter combines an asymmetrical dome suspension, specialized coating, large ferrite magnet system, and a carefully engineered rear chamber to achieve smooth dispersion, controlled resonance, and detailed high-frequency reproduction.

The result is an articulate and natural treble presentation that preserves subtle recording information without becoming aggressive or fatiguing.

ASYMMETRIC DOME SUSPENSION

The RASC™ tweeter uses a custom-shaped asymmetric suspension designed to improve the linearity and dispersion of the dome.

As frequency increases, the behavior of a soft-dome tweeter becomes increasingly dependent on its suspension and surrounding geometry. Revival Audio’s asymmetric design helps the dome transition smoothly while allowing sound waves to disperse naturally across the listening area.

This contributes to a wide, coherent presentation with refined high-frequency detail.

RASC™ COATING TECHNOLOGY

Revival Audio developed its own specialized coating recipe after extensive experimentation to control the break-up behavior of the tweeter dome.

The objective is straightforward: maintain smooth, accurate and controlled high-frequency reproduction while preserving the natural character of vocals, instruments and acoustic recordings.

LARGE FERRITE MAGNET SYSTEM

The RASC™ tweeter incorporates a 100 mm large ferrite magnet system designed to provide strong magnetic force while supporting efficient operation and thermal management.

The substantial magnet structure also contributes to a sensitivity of 87 dB, allowing ATALANTE 3 to work effectively with a broad range of high-quality amplifiers.

BCD™ BACK CHAMBER DAMPING

A RESONANCE-CONTROLLED TWEETER DESIGN

The RASC™ tweeter features a large rear chamber incorporating Revival Audio’s BCD™ Back Chamber Damping approach.

The structured chamber and simulated asymmetric rim construction are designed to absorb unwanted resonance and lower the tweeter's resonance frequency.

By controlling energy behind the dome, the design helps maintain clarity and transparency through the critical vocal and upper-midrange frequencies.

BSC™ BASALT SANDWICH CONSTRUCTION WOOFER

LIGHTWEIGHT, RIGID AND HIGHLY DAMPED

The ATALANTE 3 features Revival Audio’s 7-inch BSC™ Basalt Sandwich Construction woofer, an innovative driver technology designed to combine rigidity, low mass, and effective damping.

BSC™ uses basalt fibre derived from volcanic rock to create a specialized diaphragm structure. Basalt offers a strong stiffness-to-weight relationship while providing useful damping characteristics for loudspeaker applications.

The resulting sandwich construction combines basalt fibre, specialized adhesive and felt layers to create a diaphragm that is:

• Lightweight


• Rigid


• Well damped


• Fast responding


• Highly controlled

This allows the woofer to reproduce bass and lower-midrange information with speed, definition, and tight dynamic impact.

BASALT FIBRE TECHNOLOGY

Basalt is a naturally occurring volcanic material that can be transformed into high-performance fibres.

Revival Audio uses basalt fibre as a key material within its BSC™ driver technology because of its combination of mechanical strength, stiffness, damping, and non-petroleum-based origin.

The resulting diaphragm is engineered to minimize unwanted resonances while maintaining fast sound propagation.

For the listener, this translates into clean bass transients, precise dynamics, and natural midrange integration.

ASYMMETRIC OPEN-BASKET DESIGN

The BSC™ woofer incorporates an asymmetric open-basket design engineered to maximize airflow around the driver.

The highly vented structure helps minimize acoustic resistance behind the diaphragm while supporting efficient driver operation.

This contributes to the woofer's ability to deliver fast, controlled and dynamic bass reproduction.

POWERFUL FERRITE MAGNET SYSTEM

The BSC™ woofer uses a large ferrite magnet system designed to provide strong motor force and efficient driver operation.

The substantial magnetic structure also assists with thermal management by helping dissipate heat generated around the voice coil.

Combined with the BSC™ diaphragm, the driver delivers the dynamic authority expected from a much larger loudspeaker while retaining the compact proportions of a bookshelf design.

PATENTED ARID™ TECHNOLOGY

PRECISION CONTROL FOR TRANSPARENT HIGH FREQUENCIES

The ATALANTE 3 incorporates Revival Audio’s patented ARID™ (Anti Reflection Inner Dome) technology within its RASC™ tweeter.

ARID™ is designed to control unwanted reflections and resonances behind the tweeter dome. The large rear chamber and specialized internal geometry help absorb unwanted acoustic energy before it can interfere with the tweeter's output.

The result is cleaner high-frequency reproduction with improved transparency and resolution.

HAND-TUNED CROSSOVER DESIGN

SIMPLE, PRECISE AND MUSICAL

Revival Audio takes a minimalist approach to the ATALANTE 3 crossover network.

The crossover is carefully tuned by hand and uses only the components necessary to achieve the desired acoustic response.

The crossover point is set at 2.8 kHz, creating a seamless transition between the RASC™ tweeter and 7-inch BSC™ woofer.

This carefully balanced architecture helps the ATALANTE 3 maintain coherent tonal integration across its frequency range.

COMPACT SPEAKER, BIG SOUND

The ATALANTE 3 demonstrates how advanced driver technology can transform the performance of a compact bookshelf loudspeaker.

Its 7-inch BSC™ woofer provides tight and articulate bass, while the RASC™ tweeter delivers detailed and controlled high frequencies.

With a sensitivity of 87 dB and nominal impedance of 6 ohms, the ATALANTE 3 is suitable for a broad range of high-quality integrated amplifiers, preamplifier/power amplifier combinations, and dedicated stereo systems.

Revival Audio recommends amplifier power starting from 30 watts, with power handling up to 150 watts.

DESIGNED FOR REAL-WORLD LISTENING ROOMS

The ATALANTE 3 is designed for rooms between approximately 15 and 35 m², making it an excellent choice for dedicated listening rooms, apartments, offices, and premium living spaces.

Its compact 390 × 240 × 270 mm dimensions allow it to integrate easily into a variety of speaker stands and room layouts while delivering performance far beyond its physical size.

FRENCH HIGH-END AUDIO ENGINEERING

The Revival Audio ATALANTE 3 combines French loudspeaker design with proprietary driver technologies developed to deliver natural, dynamic and highly resolved sound.

From its RASC™ 28 mm soft-dome tweeter and patented ARID™ technology to its innovative 7-inch BSC™ basalt-fibre woofer, every element is engineered around the same goal: accurate, engaging and emotionally compelling music reproduction.

For listeners looking for a high-end bookshelf speaker with exceptional detail, controlled bass, wide dispersion and sophisticated French design, ATALANTE 3 offers a compelling entry into the Revival Audio range.

TECHNICAL SPECIFICATIONS

SPECIFICATION	ATALANTE 3
Type	2-Way Bookshelf Loudspeaker
Tweeter	1 1/8" (28 mm) Soft-Dome RASC™ Tweeter with ARID™ Technology
Woofer	7" (18 cm) BSC™ Basalt Sandwich Construction Woofer
Frequency Response	44 Hz – 22 kHz (-3 dB)
Sensitivity	87 dB / 2.83 V / 1 m
Nominal Impedance	6 Ohms
Minimum Impedance	4.4 Ohms @ 175 Hz
Crossover Frequency	2.8 kHz
Power Handling	150 Watts
Recommended Amplifier Power	Starting from 30 Watts
Recommended Room Size	15–35 m²
Dimensions (H × W × D)	390 × 240 × 270 mm
Net Weight	11 kg / 24.25 lbs
