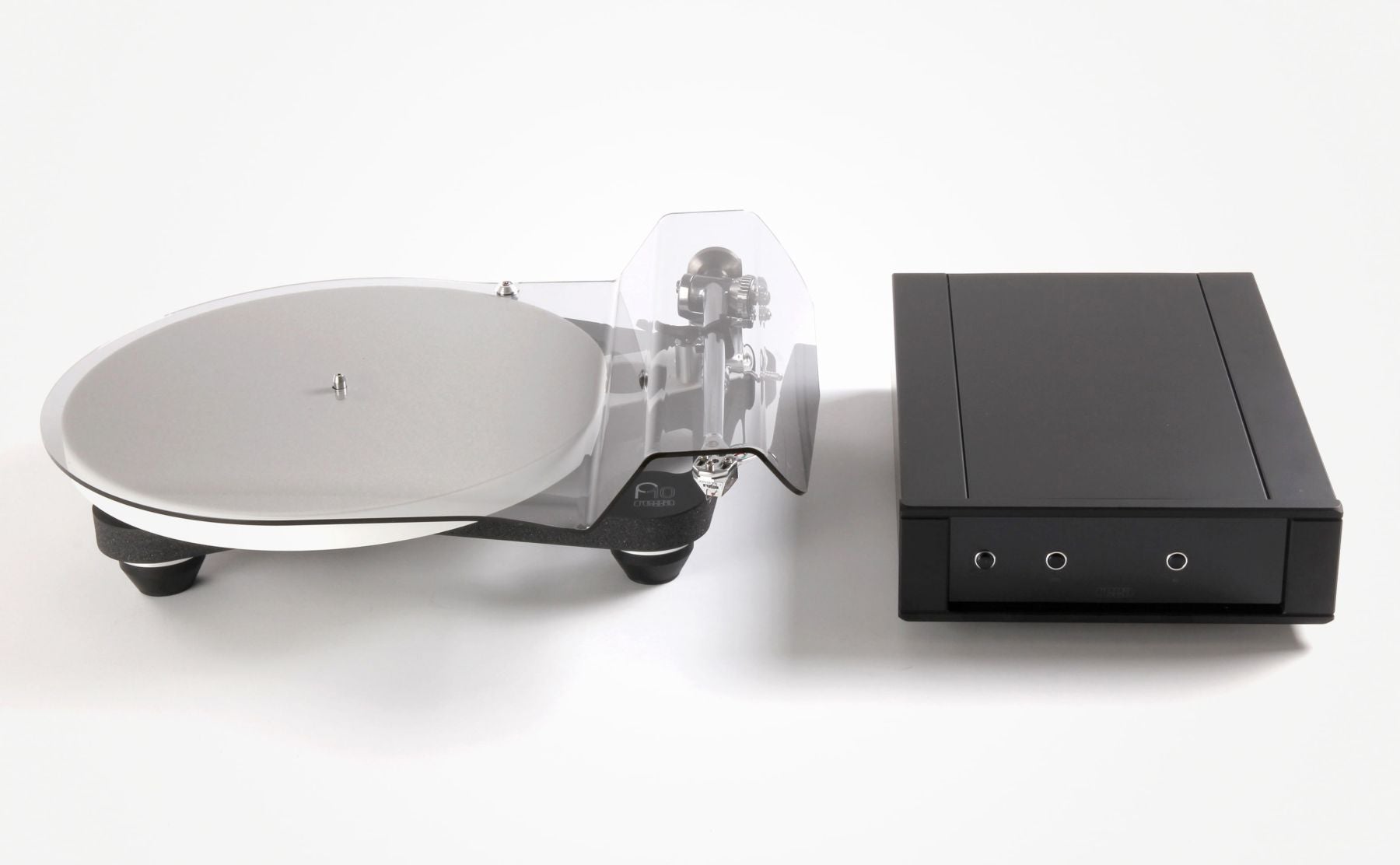

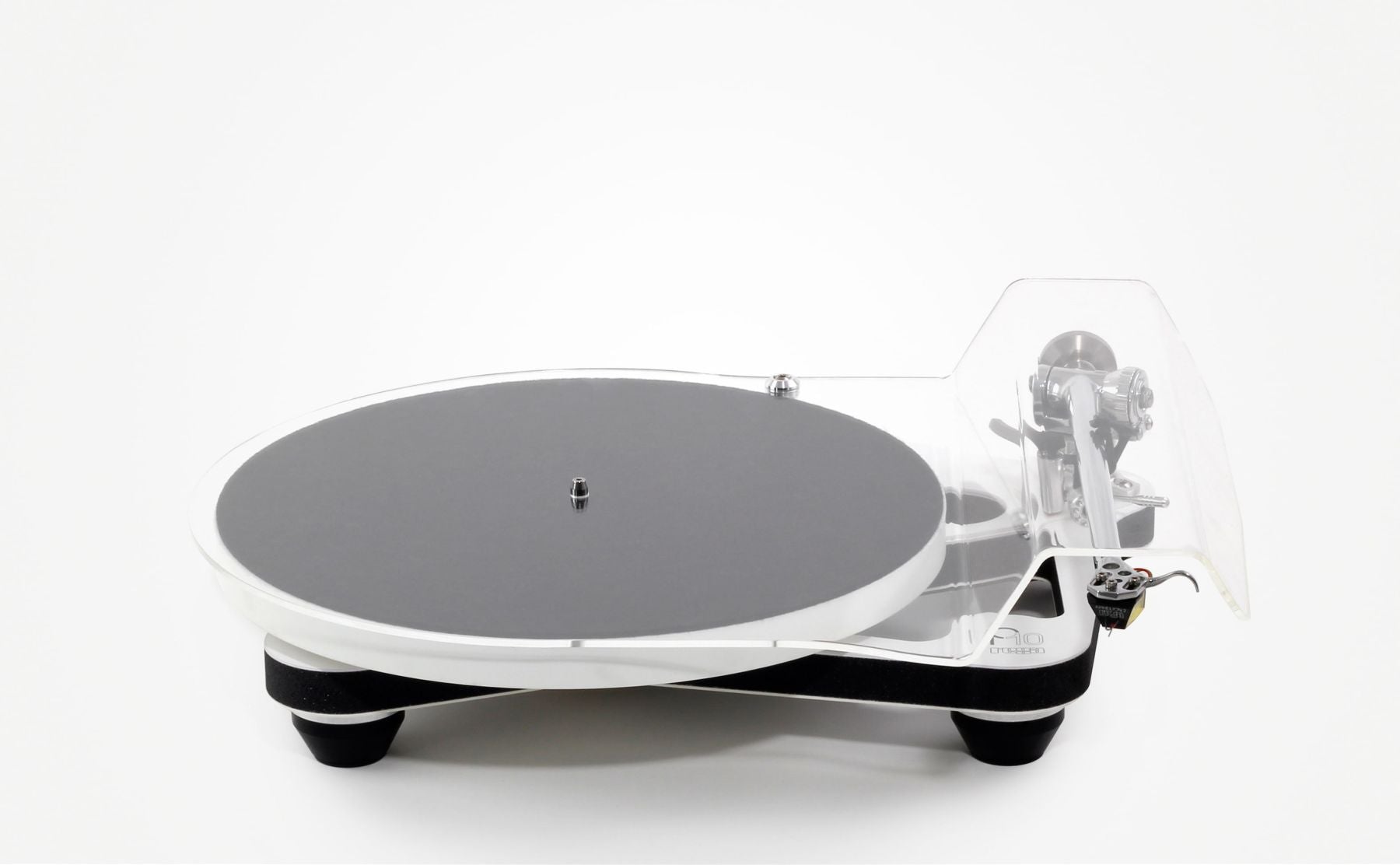

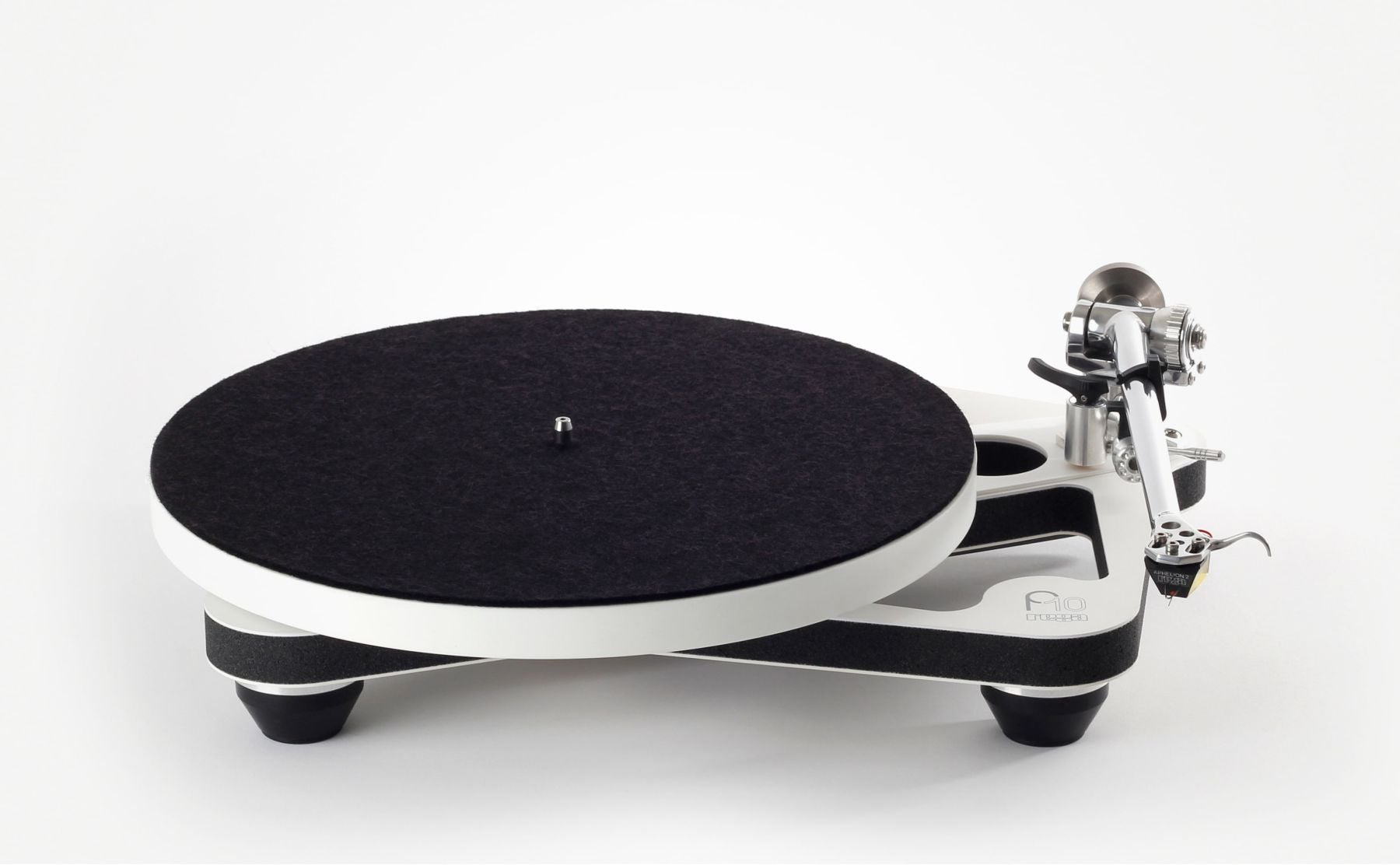

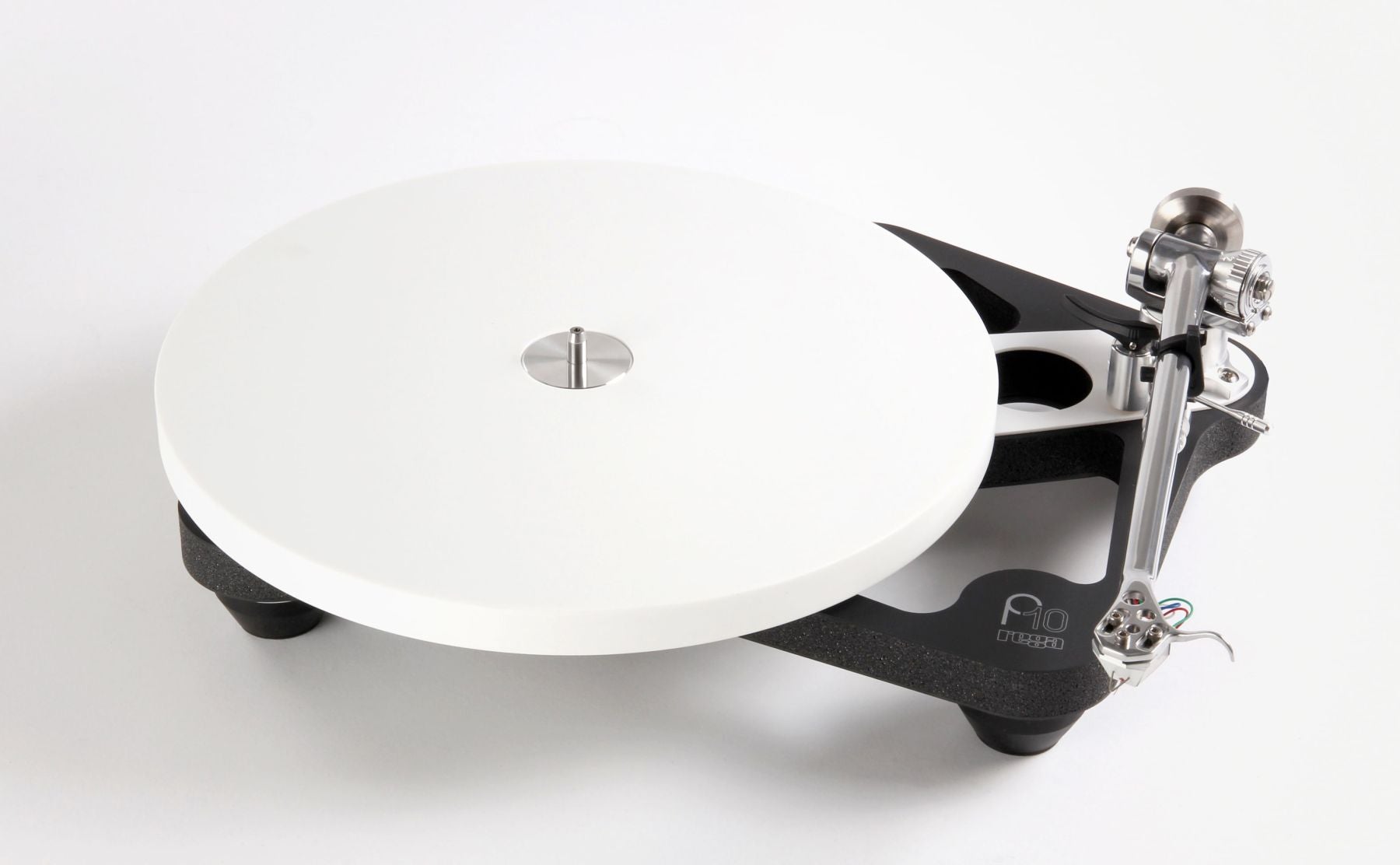

REGA PLANAR 10

The REGA PLANAR 10 is a reference-level audiophile turntable engineered to extract an exceptional level of detail, timing, rhythm, and musical information from the vinyl groove. Inspired by Rega’s ultimate Naiad turntable, the Planar 10 combines an ultra-lightweight Tancast 8 skeletal plinth, ceramic bracing, the precision RB3000 tonearm, a custom ceramic oxide platter, a hand-matched 24 V synchronous motor, and the advanced P10-PSU power supply.

Designed and manufactured in the UK, the Planar 10 follows Rega’s philosophy that controlling unwanted energy and reducing mass can produce greater musical accuracy than simply adding weight. Its rigid skeletal construction, precision bearing assembly, advanced motor control, and Reference EBLT drive belt work together to provide exceptional speed stability and highly precise vinyl playback.

INSPIRED BY THE REGA NAIAD

The Rega Planar 10 takes key engineering principles developed for the company’s ultimate Naiad turntable and applies them to a production model designed for serious audiophile systems. Every major component has been engineered around the same objective: minimize unwanted vibration, resonance, and energy transfer so the tonearm and cartridge can retrieve more information directly from the record groove.

The result is a turntable designed for high-end vinyl playback, combining exceptional timing, rhythmic accuracy, transparency, scale, and three-dimensional musical presentation.

ULTRA-LIGHTWEIGHT Tancast 8 SKELETAL PLINTH

At the heart of the Planar 10 is an ultra-lightweight skeletal plinth constructed from Tancast 8 polyurethane foam core, a material originally developed for aerospace applications. The foam core is sandwiched between two exceptionally thin and rigid layers of high-pressure laminate (HPL).

This construction makes the Planar 10 plinth approximately 30% lighter than the original RP10, while simultaneously increasing rigidity. The skeletal design reduces unnecessary mass while concentrating structural strength precisely where it is required.

This low-mass approach helps prevent the storage and transmission of unwanted energy, allowing the platter, tonearm, and cartridge to operate with greater precision.

DOUBLE BRACE TECHNOLOGY

The Planar 10 introduces Rega’s advanced Double Brace Technology, using a ceramic top brace and phenolic resin bottom brace positioned between the tonearm mounting point and main hub bearing.

Rather than relying on a heavy plinth to provide structural stability, the bracing creates a rigid stressed-beam assembly at the critical interface between the tonearm and main bearing.

By concentrating rigidity where it matters most, Rega minimizes unwanted flexing, resonance, and energy transfer. This allows the cartridge to read the record groove with greater accuracy while reducing the possibility of mechanical energy being stored within the chassis.

PRECISION RB3000 REFERENCE TONEARM

The RB3000 is Rega’s reference precision tonearm and is engineered specifically to complement the Planar 10’s low-mass, high-rigidity architecture.

Its bearing assembly benefits from Rega’s highly precise manufacturing processes, producing an exceptionally accurate fit between the bearing housing and spindles. The tonearm uses a preloaded, zero-tolerance bearing assembly adjusted to less than 1000th of a millimetre, providing extremely low-friction movement with virtually no unwanted play.

The RB3000 also features Rega’s advanced aluminium arm tube, meticulously hand polished and redesigned to redistribute mass, increase rigidity, and reduce mechanical stresses and resonances. Its construction uses a minimum of mechanical joints and stiff materials in critical areas, supporting accurate tracking of extremely small groove information.

PRECISION HUB BEARING ASSEMBLY

The Planar 10 features a low-mass central bearing assembly developed using modern CNC manufacturing techniques.

A single-piece machined aluminium sub-platter and hardened tool-steel spindle rotate inside a custom brass bearing housing designed for improved mechanical integrity. The assembly is integrated into the chassis to minimize unwanted energy transfer and energy storage within the plinth.

This precision bearing system provides the stable mechanical foundation required for accurate platter rotation and consistent vinyl playback.

CERAMIC OXIDE DIAMOND-CUT PLATTER

One of the defining features of the Planar 10 is its custom ceramic oxide platter.

The platter is manufactured from ceramic oxide powder that is compressed and fired before being diamond cut to achieve exceptional flatness and dimensional accuracy. Its flywheel-effect construction provides a stable rotational platform while the latest design improves coupling between the platter and sub-platter.

The combination of high manufacturing precision, rotational mass distribution, and rigid construction helps the Planar 10 maintain excellent speed stability and timing accuracy.

24 V LOW-VIBRATION SYNCHRONOUS MOTOR

The Planar 10 uses Rega’s latest-generation 24 V synchronous low-vibration motor technology.

Its motor is mounted from underneath using a technique derived directly from the Naiad. This mounting arrangement provides a high level of mechanical coupling while maintaining effective vibration isolation. It also reduces stress on the motor body while keeping the drive pulley extremely stable.

Each motor is hand-tuned and matched to its own P10-PSU before installation, allowing Rega to optimize the anti-vibration system for the individual motor and power supply combination.

REFERENCE EBLT DRIVE BELT

The Planar 10 is fitted as standard with Rega’s Reference EBLT drive belt.

Developed through extensive material research, the EBLT belt uses a bespoke rubber compound and specialized curing process designed to deliver highly consistent mechanical properties. Rega manufactures the belts using precision tooling designed to achieve exceptional roundness and dimensional accuracy.

This precision is critical to maintaining consistent platter rotation and contributes to the Planar 10’s outstanding speed stability and timing accuracy.

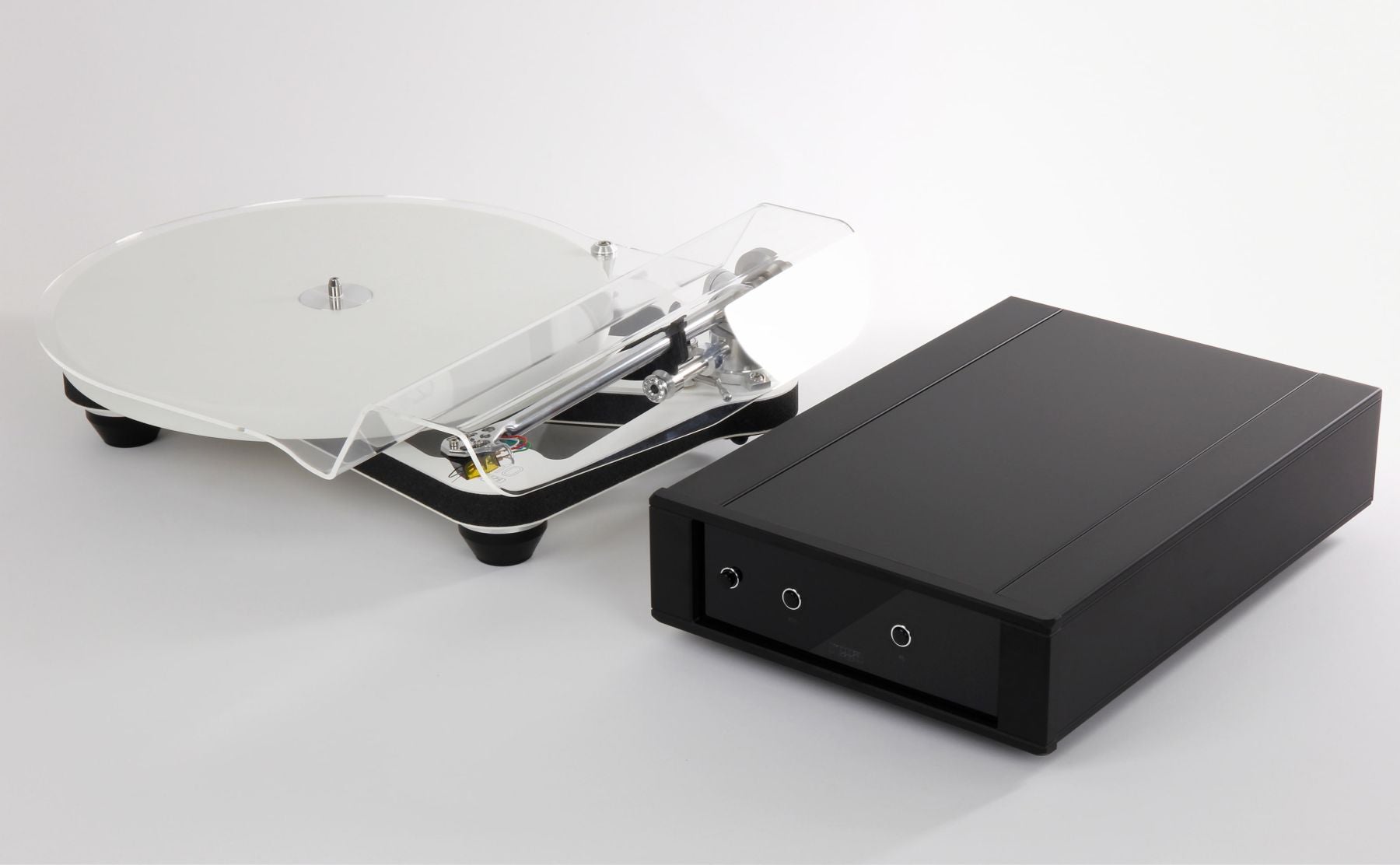

P10-PSU ADVANCED POWER SUPPLY

The P10-PSU is a dedicated outboard power supply engineered specifically for the Planar 10’s 24 V motor.

It provides:

• Electronic 33⅓ RPM and 45 RPM speed selection


• User-adjustable electronic fine speed control


• Advanced anti-vibration motor control


• Highly stable motor speed regulation


• Individual motor matching and optimization


• DSP-based motor control


• Near-perfect sinusoidal motor waveform generation

The P10-PSU uses a high-stability crystal-based Digital Signal Processing (DSP) generator to produce the precise frequencies required for accurate platter rotation. Rega then applies factory-set vibration removal and fine-speed adjustments to optimize each motor and PSU combination.

REMOVABLE SINGLE-PIECE DUSTCOVER

Rega has eliminated the outer frame used on the previous-generation design and introduced a lightweight, removable single-piece dustcover.

This further reduces the overall mass of the turntable while providing practical protection for the platter, tonearm, and cartridge when the system is not being used.

The Matt White Planar 10 is supplied with a clear dustcover and black mat, while the turntable is also available in Matt Polaris Grey.

FACTORY-FITTED CARTRIDGE OPTIONS

The Rega Planar 10 can be specified with factory-fitted high-performance Rega Moving Coil cartridges, allowing customers to configure the turntable as part of a complete high-end analog system.

APHETA 3 MOVING COIL CARTRIDGE

The Apheta 3 is a high-performance Moving Coil cartridge featuring a fine-line nude diamond stylus, aluminium cantilever, high-powered neodymium magnet, hand-wound micro-coil, and Rega’s three-point mounting system.

APHELION 2 REFERENCE MOVING COIL CARTRIDGE

The Aphelion 2 Reference represents Rega’s highest-level cartridge option for the Planar 10. It features a graded zero-tolerance black anodized aluminium body, boron rod cantilever, fine-line nude diamond stylus, iron micro-cross and coil assembly, high-specification fine wire, and Rega’s three-point mounting system.

These cartridge options are offered as factory-fitted configurations and should be specified according to the chosen Planar 10 package.

FINISH OPTIONS

The Rega Planar 10 is available in two understated matte finishes designed to complement premium high-end audio systems:

• Matt Polaris Grey


• Matt White

The Matt White version is supplied with a clear dustcover and black mat.

REGA PLANAR 10 FOR HIGH-END VINYL SYSTEMS

The Planar 10 is designed for listeners who want to extract the highest possible level of musical information from their vinyl collection without compromising Rega’s fundamental design philosophy.

Its combination of ultra-lightweight construction, ceramic Double Brace Technology, RB3000 reference tonearm, precision central bearing, ceramic oxide platter, 24 V low-vibration motor, Reference EBLT drive belt, and P10-PSU creates an exceptionally controlled analog playback platform.

Rather than adding mass, Rega concentrates engineering precision where it has the greatest mechanical and sonic impact. The result is a highly revealing, rhythmically precise, dynamically expressive, and transparent high-end turntable capable of delivering the scale, timing, detail, and three-dimensionality expected from a reference-class vinyl source.

KEY FEATURES

• Reference RB3000 precision tonearm


• Tancast 8 ultra-lightweight skeletal plinth


• Ceramic and phenolic Double Brace Technology


• Custom ceramic oxide diamond-cut platter


• Low-mass central hub bearing assembly


• Single-piece machined aluminium sub-platter


• Hardened tool-steel spindle and custom brass bearing housing


• 24 V synchronous low-vibration motor


• Individual motor-to-PSU matching


• Dedicated P10-PSU outboard power supply


• DSP-based motor control


• Electronic speed change


• Electronic fine speed adjustment


• Reference EBLT drive belt fitted as standard


• Removable single-piece dustcover


• Optional factory-fitted Apheta 3 or Aphelion 2 Reference cartridge


• Matt Polaris Grey and Matt White finishes


• Designed and assembled in the UK


• Lifetime Limited Warranty against confirmed manufacturing defects

TECHNICAL SPECIFICATIONS

The specifications above are based on the current official Rega Planar 10 product information.

WHY CHOOSE THE REGA PLANAR 10?

The REGA PLANAR 10 is a true high-end audiophile turntable for listeners seeking exceptional vinyl reproduction from a mechanically optimized analog source. Inspired by the Rega Naiad, it combines an ultra-lightweight Tancast 8 plinth, ceramic Double Brace Technology, reference-grade RB3000 tonearm, precision ceramic platter, advanced 24 V motor system, Reference EBLT belt, and dedicated P10-PSU.

For a premium vinyl system where timing, speed stability, low resonance, groove-tracking accuracy, transparency, and musical expression matter most, the Planar 10 provides a highly refined platform engineered to reveal more information from every record.
