Rotel Michi X5 (Series 2) Integrated Amplifier

Sale price$7,999.00

The Michi X5 Series 2 Integrated Amplifier combines 600 Watts of unwavering Class AB output power and an ESS SABRE 8-Channel Digital to Analog converter to deliver breathtaking precision and unparalleled control. Analog, Digital, XLR, aptX™ HD Bluetooth, PC-USB, Moving Magnet and Moving Coil Phono Stage sources are all supported.

Rotel Michi X5 (Series 2) Integrated Amplifier
Rotel Michi X5 (Series 2) Integrated Amplifier Sale price$7,999.00

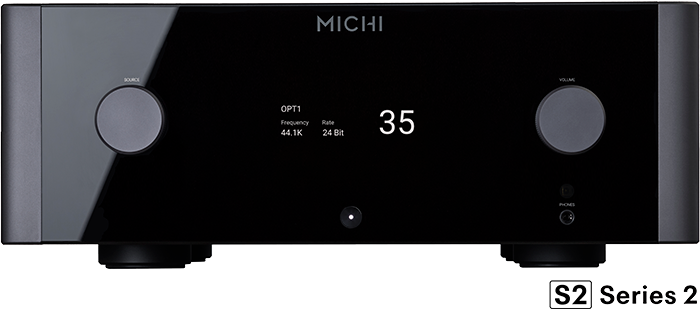

Michi X5 Series 2



The Michi X5 Series 2 Integrated Amplifier is authoritative and precise, capable of delivering a speaker-taming 600 watts of Class AB output power. The X5’s linear power supply is built around two massive in-house manufactured, shielded, low-noise toroidal transformers. Equipped with an ESS SABRE 8-Channel Digital to Analog converter, this amplifier renders ultra-revealing music with breathtaking accuracy.

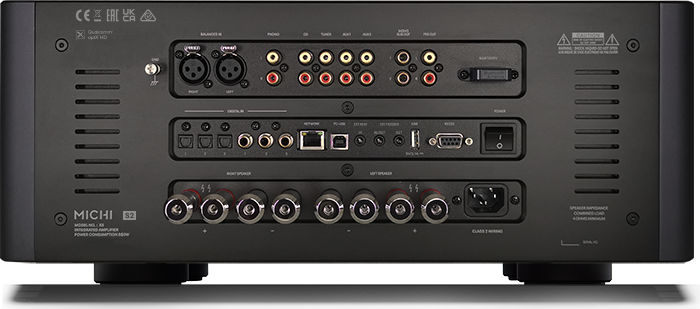

A wide array of inputs ensures support of your favorite music sources including Analog RCA and XLR Balanced, Moving Magnet or Moving Coil Phono, aptX™ HD Wireless Bluetooth, Coaxial and Optical. The PC-input supports PCM (32-bit 384kHz) and Quad DSD (11.2MHz) with full MQA hardware decoding up to 24-bit 384kHz.


Whether you're a music lover, audiophile, professional sound engineer or all of the above, the Michi X5 Series 2 Integrated Amplifier has been passionately engineered for you. Meticulously manufactured to the highest standards of build quality, and featuring an understated, graceful industrial design, the Michi X5 Series 2 is sure to quickly become the centerpiece of your audio system.


Michi, expectations amplified.



Roon TestedCertified Roon Tested Class ABSupports MQA and MQA StudioPower2 x 600 Watts of
robust power, 4 ohms
BluetoothBluetooth with aptX™ HD and AAC ICESS premium 32-bit 8-Channel Digital to Analog Converter

Engineered with care

DIMENSIONS (W × H × D)
485 x 195 x 452mm
19" ×  7 5/8" × 17 3/4"

FRONT PANEL HEIGHT
177 mm (7")

POWER REQUIREMENTS
120V, 60Hz

POWER CONSUMPTION
850W

STANDBY POWER CONSUMPTION
<0.5W

NET WEIGHT
43.8kg (96.56 lbs.)

BTU RATING
2194 BTU/h
CONTINUOUS POWER OUTPUT
600W/Ch (4Ω)
350W/Ch (8Ω)

TOTAL HARMONIC DISTORTION (THD)
<0.009%

FREQUENCY RESPONSE
Line Level Inputs: 10Hz - 100kHz (+0 dB, -0.6 dB)
Digital Inputs: 20Hz - 20kHz (0 ± 0.4 dB)
Phono Input: 20Hz - 20kHz (+0 dB, -0.2 dB)

S/N RATIO (IHF "A" Weighted)
Line Level Inputs: 102dB
Digital Inputs: 102dB
Phono Input: 80dB

Other Specifications



INTERMODULATION DISTORTION (60Hz:7kHz, 4:1)
<0.03%

DAMPING FACTOR (20 Hz - 20kHz, 8 ohms)
350

CHANNEL SEPARATION
>65dB


INPUT SENSITIVITY

Line Level Inputs (RCA): 380mV
Line Level Inputs (XLR): 580mV
Phono Input (MM): 5.7mV
Phono Input (MC): 570 uV

INPUT IMPEDANCE
Line Level Inputs (RCA): 100kΩ
Line Level Inputs (XLR): 100kΩ
Digital Inputs: 75Ω
Phono Input (MM): 47kΩ
Phono Input (MC): 100Ω

INPUT OVERLOAD
Line Level Inputs (RCA): 12.5V
Line Level Inputs (XLR): 12.5V
Phono Input (MM): 197mV
Phono Input (MC): 19mV

PREOUT LEVEL
1V

OUTPUT IMPEDANCE
470Ω
TONE CONTROLS
±10dB at 100Hz / 10kHz

COAX/OPTICAL DIGITAL INPUT SIGNALS
SPDIF LPCM (Up to 24-bit/192kHz)

PC-USB
USB Audio Class 1 (up to 24-bit/96kHz)
USB Audio Class 2 (up to 32-bit/384kHz)
MQA, DSD and DoP support
Roon Tested support
