LYNGDORF TDAI-2210

---

The LYNGDORF TDAI-2210 is a high-performance 2-channel integrated streaming amplifier combining Lyngdorf Audio’s proprietary True Digital Amplifier technology, advanced RoomPerfect™ room correction, high-resolution music streaming, extensive digital connectivity, modular expansion, and a full-color touchscreen in a compact, premium chassis.

Delivering 2 x 210 watts into 4 ohms and 2 x 105 watts into 8 ohms, the TDAI-2210 is engineered to drive a wide range of high-end loudspeakers with authority and precision. Its fully digital amplification architecture keeps the signal in the digital domain through the amplification stage, while the advanced output-stage volume control minimizes unnecessary signal attenuation and additional analog circuitry.

With Roon Ready, Spotify Connect, TIDAL Connect, Google Cast, AirPlay 2, Internet Radio, Bluetooth, DLNA/UPnP, USB playback, HDMI connectivity, and multiple high-resolution digital inputs, the TDAI-2210 is designed to serve as the central component of a modern audiophile stereo system.

TRUE DIGITAL AMPLIFICATION

TDAI stands for True Digital Amplifier Integrated, reflecting Lyngdorf Audio’s approach to digital amplification. The TDAI-2210 uses a 100% digital amplification architecture in which the digital music signal drives the speakers directly rather than being converted through a conventional analog amplification stage.

This architecture reduces the number of analog components and signal paths between the source and loudspeaker. By minimizing potential sources of noise, hiss, crosstalk, and distortion, the TDAI-2210 is designed to deliver highly transparent, precise, and consistent performance across its volume range.

The amplifier provides 210 watts per channel into 4 ohms, with a maximum output current of 35A per channel, giving it the current delivery required for demanding loudspeaker loads.

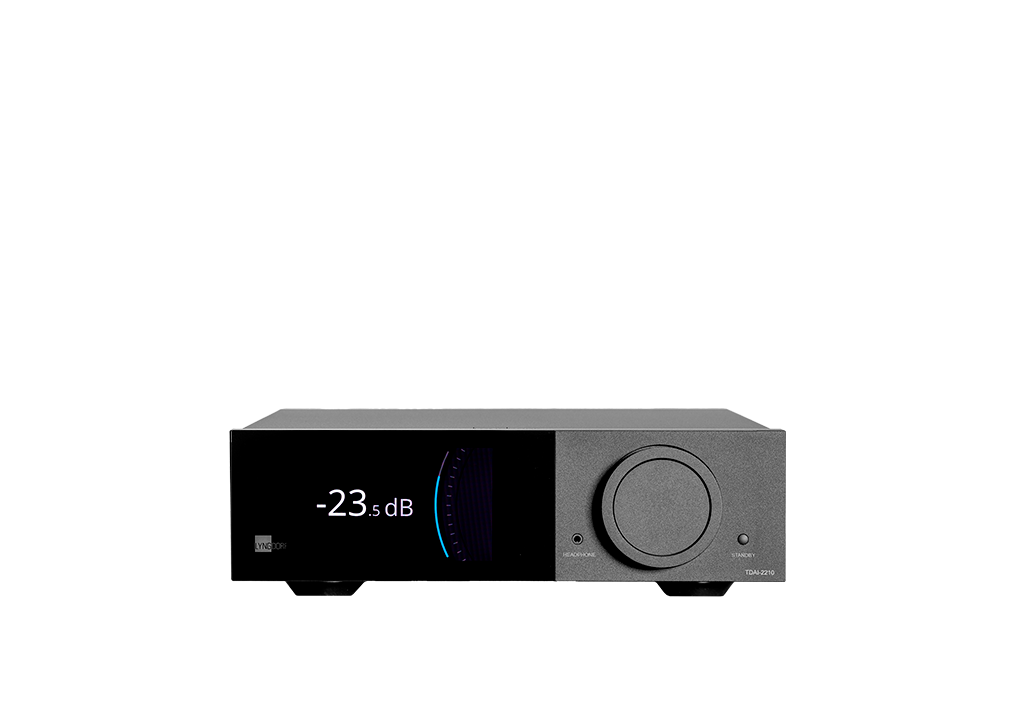

ADVANCED VOLUME CONTROL

The TDAI-2210 incorporates Lyngdorf Audio’s distinctive volume-control architecture. Instead of simply attenuating the music signal at the input stage, the volume control adjusts gain within the output stage.

The large precision volume wheel provides smooth, accurate level adjustment while complementing the amplifier's True Digital Amplifier architecture. This approach helps maintain signal integrity and consistent sound quality across different listening levels.

ROOMPERFECT™ ROOM CORRECTION

One of the defining technologies of the TDAI-2210 is RoomPerfect™, Lyngdorf Audio’s proprietary digital room calibration system.

RoomPerfect™ is designed to compensate for the interaction between loudspeakers and the listening environment. Room acoustics can introduce excessive bass, weak or uneven bass response, and problems with imaging and soundstage presentation. RoomPerfect™ analyzes these characteristics and corrects them in the digital domain.

The result is a more balanced relationship between the loudspeakers and the room without requiring extensive acoustic treatment.

RoomPerfect™ calibration can be performed directly from the TDAI-2210 touchscreen or through the My Lyngdorf App, without requiring a computer or specialist room-calibration software. A dedicated XLR microphone input is provided for RoomPerfect™ measurement, and the required microphone, stand, and cable are included with the amplifier.

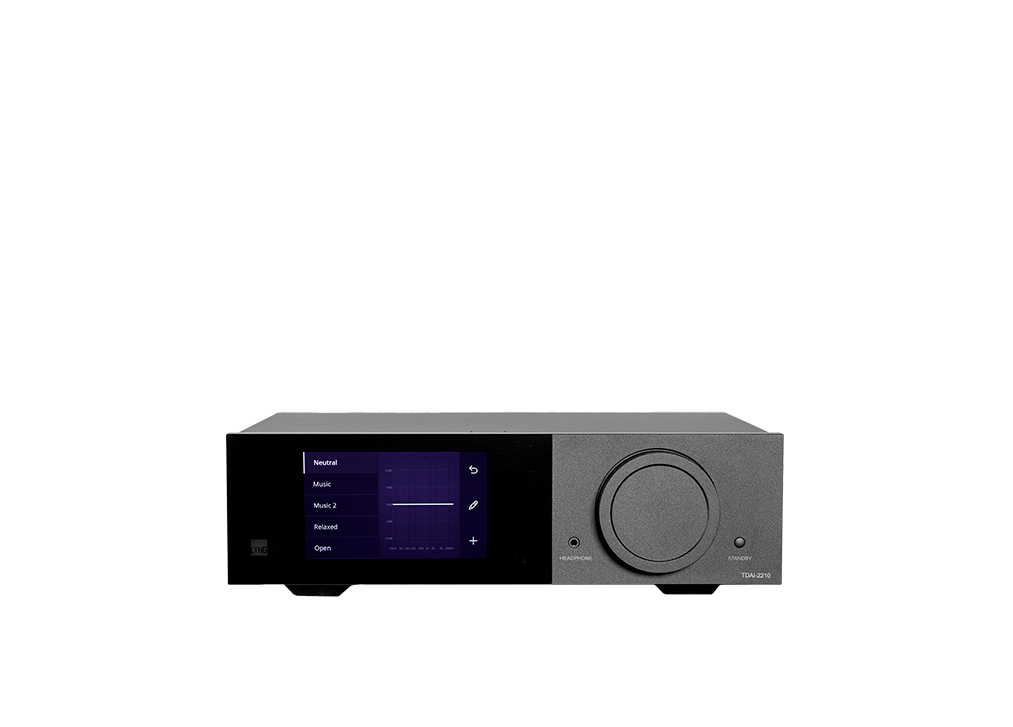

FULL-COLOR TOUCHSCREEN CONTROL

The TDAI-2210 introduces a high-quality full-color touchscreen with a smooth real-glass surface, providing intuitive control of the amplifier and its extensive functions.

The icon-based interface supports touch, tap, and slide controls for setup, source selection, volume adjustment, RoomPerfect™ calibration, system customization, and music playback. The display can also show important system information, current volume, settings, and music cover artwork.

The glass surface is designed for a smooth fingertip experience while helping reduce the visibility of fingerprints, making the touchscreen both functional and visually refined.

HIGH-RESOLUTION MUSIC STREAMING

The TDAI-2210 is designed as a complete digital music hub, with an integrated network streaming platform supporting a broad range of popular services and playback technologies.

Streaming and network features include:

• Roon Ready


• Spotify Connect


• TIDAL Connect


• Google Cast


• Apple AirPlay 2


• Internet Radio via airable


• DLNA / UPnP


• Bluetooth Low Energy


• Local USB file playback


• Audirvana compatibility

This combination allows the TDAI-2210 to function as the central streaming amplifier for a modern high-end stereo system without requiring multiple separate source components.

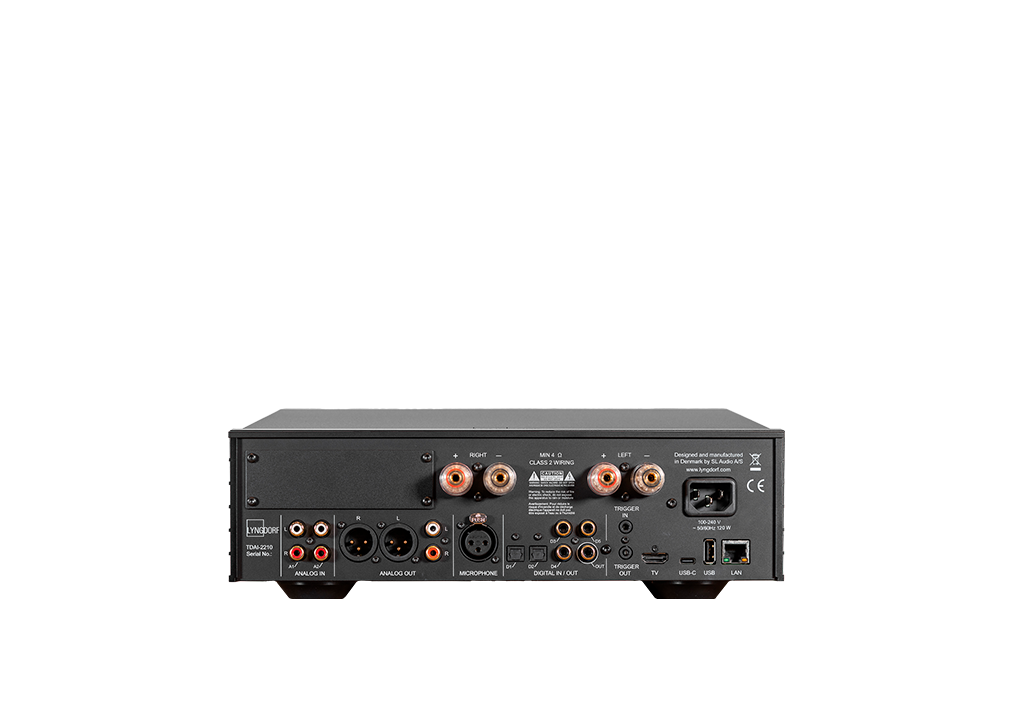

EXTENSIVE DIGITAL CONNECTIVITY

The TDAI-2210 provides extensive digital connectivity for high-resolution music sources, digital transports, computers, televisions, and other modern components.

The standard digital connections include:

• 3 x Coaxial digital inputs, up to 192kHz/24-bit


• 2 x Optical digital inputs, up to 96kHz/24-bit


• 1 x USB-C input, up to 192kHz/24-bit


• 1 x HDMI 2.1 eARC input, up to 192kHz/24-bit


• 1 x Coaxial digital output, up to 96kHz/24-bit

The result is a highly flexible digital front end capable of integrating both dedicated audiophile sources and everyday digital entertainment equipment.

HDMI 2.1 AND HOME ENTERTAINMENT INTEGRATION

The TDAI-2210 can be equipped with an optional HDMI 2.1 input/output module, extending its capabilities for high-end television and home entertainment systems.

The HDMI 2.1 module provides two additional HDMI inputs and one HDMI input/output with eARC/ARC, with support for audio signals up to 192kHz/24-bit and HDMI CEC integration.

The module also supports HDMI 2.1 video pass-through up to 8K at 50/60Hz and 4K at 100/120Hz, allowing the TDAI-2210 to integrate into modern high-resolution home entertainment systems without compromising advanced video connectivity.

MODULAR ANALOG INPUT UPGRADE

For listeners who want to integrate premium analog sources, Lyngdorf offers an optional High-End Analog Input Module for the TDAI-2210.

The module adds:

• 1 x MM phono input with RIAA equalization


• 2 x single-ended RCA analog inputs


• 1 x balanced XLR analog input

Input sensitivity can be increased by up to 24dB, with the first 6dB of gain handled through gold-plated relays to make effective use of the analog-to-digital converter's available headroom.

This modular architecture allows the TDAI-2210 to evolve with the rest of a high-end audio system rather than requiring a completely separate amplifier when additional source requirements arise.

HIGH-QUALITY ANALOG OUTPUTS AND HEADPHONE AMPLIFICATION

Although the TDAI-2210 is built around a digital signal architecture, it provides flexible output connectivity for different system configurations.

The standard amplifier includes:

• 1 x balanced XLR stereo output


• 1 x single-ended RCA stereo output


• 1 x 3.5mm headphone output


• 1 x coaxial digital output

This allows the TDAI-2210 to serve as the heart of a sophisticated two-channel system while accommodating additional amplification, external equipment, or personal listening.

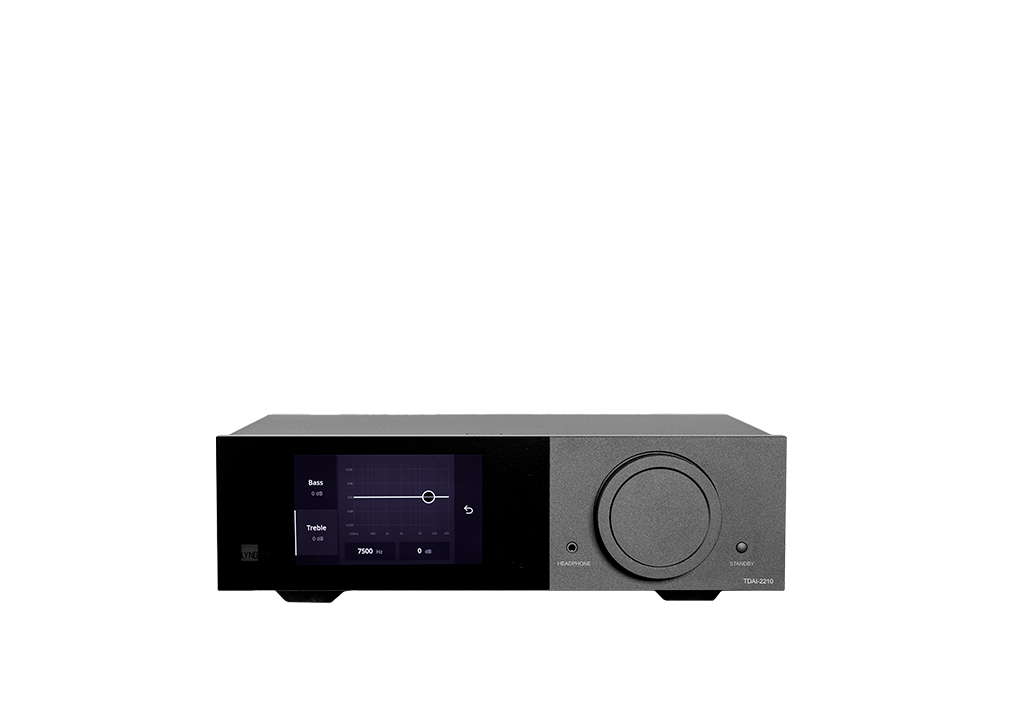

PRECISION DIGITAL EQ AND SYSTEM CONTROL

Beyond RoomPerfect™, the TDAI-2210 provides several tools for tailoring the system to different listening preferences and loudspeaker configurations.

Available processing features include:

• RoomPerfect™


• Voicings


• Bass and treble tone controls


• Subsonic filter at 18Hz with 24dB/octave slope

The amplifier can be controlled from its touchscreen, infrared remote, web interface, or the My Lyngdorf App for iOS and Android. It also supports IP control, HDMI CEC, trigger input/output, and wired Ethernet connectivity for integration into sophisticated audio and home automation systems.

MY LYNGDORF APP

The My Lyngdorf App provides convenient wireless control of the TDAI-2210 from a smartphone or tablet.

Users can adjust inputs and volume, configure RoomPerfect™ settings, select Voicings, and browse Internet Radio. The interface can also be customized to provide quick access to frequently used functions.

The app is available for iOS and Android devices.

ENGINEERED AND TESTED IN DENMARK

The TDAI-2210 is designed, assembled, and tested at Lyngdorf Audio in Denmark. Each amplifier undergoes a 24-hour test cycle with its inputs and outputs used and both amplifier channels driven under load.

Every unit is measured against its specifications as part of Lyngdorf Audio's quality-control process, emphasizing long-term reliability and consistent performance.

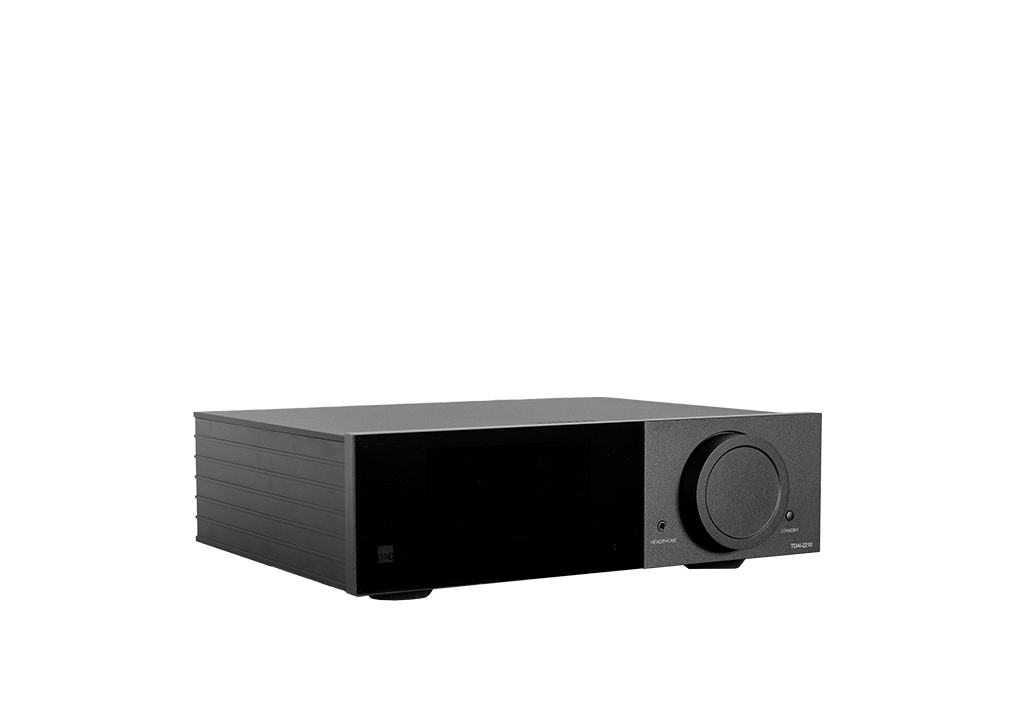

COMPACT HIGH-END AUDIO DESIGN

Despite its extensive functionality and 210-watt-per-channel output, the TDAI-2210 maintains a compact footprint suitable for modern listening rooms, furniture, and desktop-oriented high-end systems.

The 325 x 102 x 300 mm chassis is finished in matte black, combining a minimalist Scandinavian aesthetic with the functionality of the integrated touchscreen and large precision volume wheel.

At just 4.8 kg, the TDAI-2210 offers an unusually compact solution for a high-performance integrated streaming amplifier with extensive digital connectivity and room correction.

A COMPLETE HIGH-END STREAMING AMPLIFIER

The LYNGDORF TDAI-2210 brings together digital amplification, high-resolution streaming, RoomPerfect™ room correction, HDMI 2.1 capability, modular analog connectivity, touchscreen control, and substantial power output in a single high-end component.

For audiophiles seeking a high-end integrated amplifier with streaming, a Roon Ready amplifier, a RoomPerfect™ amplifier, or a versatile digital streaming amplifier with HDMI and USB-C, the TDAI-2210 provides a comprehensive platform designed around modern digital audio and demanding two-channel listening.

Its combination of 2 x 210W output, True Digital Amplifier technology, RoomPerfect™, extensive streaming support, modular connectivity, and Danish engineering makes the TDAI-2210 a flexible centerpiece for a premium stereo system.

KEY FEATURES

• 2-channel integrated streaming amplifier


• 2 x 210W @ 4Ω / 2 x 105W @ 8Ω


• Lyngdorf True Digital Amplifier technology


• 35A maximum output current per channel


• Advanced output-stage volume control


• Full-color touchscreen with real-glass surface


• RoomPerfect™ digital room correction


• Roon Ready


• Spotify Connect


• TIDAL Connect


• Google Cast


• Apple AirPlay 2


• Internet Radio via airable


• DLNA / UPnP


• Bluetooth


• USB local file playback


• Audirvana compatibility


• USB-C digital input up to 192kHz/24-bit


• 3 x coaxial digital inputs up to 192kHz/24-bit


• 2 x optical digital inputs up to 96kHz/24-bit


• HDMI 2.1 eARC connectivity


• Optional HDMI 2.1 input/output module


• Optional High-End Analog Input Module


• Optional MM phono stage


• Optional balanced XLR analog input


• Balanced XLR and RCA analog outputs


• 3.5mm headphone output


• Voicings and bass/treble controls


• Subsonic filter


• My Lyngdorf App


• Ethernet LAN and IP control


• HDMI CEC integration


• Trigger input and output


• Infrared remote control included


• RoomPerfect™ microphone, stand, and cable included


• Designed, assembled, and 24-hour tested in Denmark


• Matte black finish

TECHNICAL SPECIFICATIONS

SPECIFICATION	LYNGDORF TDAI-2210
TYPE	2-Channel Integrated Streaming Amplifier
POWER OUTPUT	2 x 210W @ 4Ω / 2 x 105W @ 8Ω
MAXIMUM OUTPUT CURRENT	35A Per Channel
FREQUENCY RESPONSE	±0.5dB, 20Hz–20kHz
THD	0.05% Maximum, 20Hz–20kHz
THD-N	0.04% @ 1W/8Ω; 0.04% @ 1W/4Ω
DIGITAL INPUTS	3 x Coaxial, 2 x Optical, 1 x USB-C, 1 x HDMI 2.1 eARC
DIGITAL OUTPUT	1 x Coaxial
STANDARD ANALOG INPUTS	2 x RCA
ROOMPERFECT INPUT	1 x XLR Microphone Input
ANALOG OUTPUTS	1 x RCA, 1 x Balanced XLR, 1 x 3.5mm Headphone
OPTIONAL ANALOG MODULE	1 x MM Phono, 2 x RCA, 1 x Balanced XLR
OPTIONAL HDMI MODULE	2 x HDMI Inputs, 1 x HDMI Output/Input with eARC/ARC
ROOM CORRECTION	span>RoomPerfect™
OTHER EQ	Voicings, Bass/Treble, Subsonic Filter
STREAMING	Roon Ready, Spotify Connect, TIDAL Connect, Google Cast, AirPlay 2, Internet Radio, DLNA/UPnP, Bluetooth
NETWORK	RJ45 Ethernet LAN
CONTROL	Touchscreen, My Lyngdorf App, Web Interface, IP Control, IR Remote
HDMI CONTROL	CEC
TRIGGER	1 x Input / 1 x Output
STANDBY POWER	<0.5W
IDLE POWER	18–26W
DIMENSIONS	325 x 102 x 300mm / 12.8 x 4 x 11.8in
WEIGHT	4.8kg / 10.6lb
FINISH	Matte Black
