STREAM1

---

RECONNECT WITH YOUR MUSIC

The STREAM1 is our entry-level Hi-Fi music streamer and server that does not compromise on functionality. Our most versatile gateway product yet, you can tailor the STREAM1 in different configurations to meet your needs thanks to modular storage and output options, able to flexibly fill both music streamer and server duties. Enjoy it as a fully-loaded music player, streaming transport, a storage server or a combination of them all – the choice is yours.

Whether you’re a seasoned audiophile with a meticulously curated system or a listener seeking a simple but elegant solution, this music source promises to be the driving force behind your audio experience.

At Innuos, we craft both hardware and software in-house, fine-tuning every detail for unmatched synergy. From precision clocking to advanced noise reduction through power supply architecture and customized firmware, every detail is engineered to allow you to reconnect with your music

Designed to grow with you, STREAM1 isn’t just an introduction to Hi-Fi streaming — it’s the foundation of an evolving system. With upgrade paths and modular design, it offers an accessible yet powerful step into superior audio performance. Build your ideal STREAM1 solution with options including:

- LPS1 power supply upgrade
- Optional output modules: StandardDAC Board, PerformanceDAC Board, SPDIF Board, or PhoenixUSB Board
- 2TB or 4TB of pre-fitted M2 nVME storage – or install your own.

Whether you already own a DAC or prefer a fully connected streamer, exclusively stream, or wish to build a library of all your local files, this product is designed to be the digital heart of your system. Flexible but uncompromising in sound quality, STREAM1 is a gateway to rediscovering your music collection.

MAIN FEATURES

CX Power

Enjoy superior sound quality thanks to the CX Regulator designed in collaboration with Dr Sean Jacobs. Independent and low-noise power is supplied directly to the Output Module stage, ensuring a clear, rich and precise audio signal. Power the overall system with the included medical-grade filtered SMPS, or upgrade with the dedicated LPS1.

Storage

Add M2 NMVe SSD storage and create a home to maximize all your digital files and enjoy even more library management features in Sense app with the full scope of a music server. Choose from 2TB or 4TB of factory pre-fitted storage – or simply add your own instead.

LPS1

Take the sound quality of STREAM1 significantly further with the partnering LPS1, a perfectly matched linear power supply with a 150VA toroidal transformer and premium Mundorf capacitors for even greater clarity in sound. Leverage a second Nichicon-regulated DC output to power accessories such as external DACs and network switches.

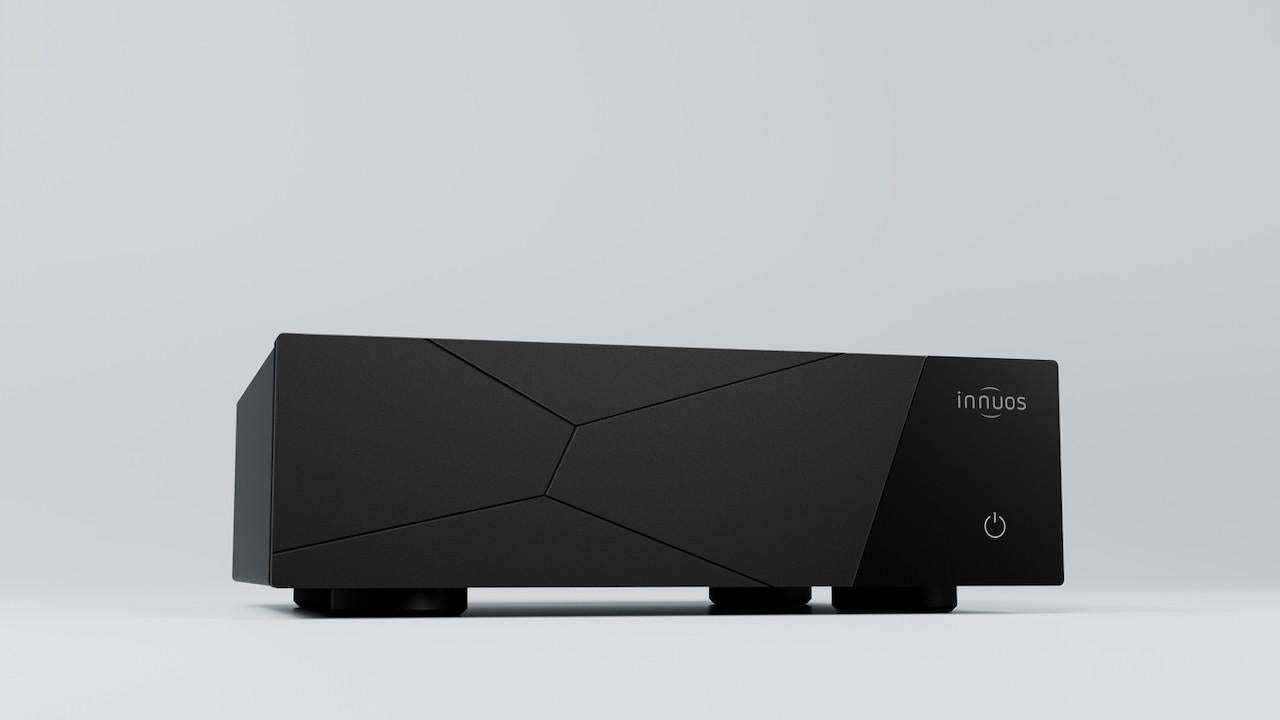

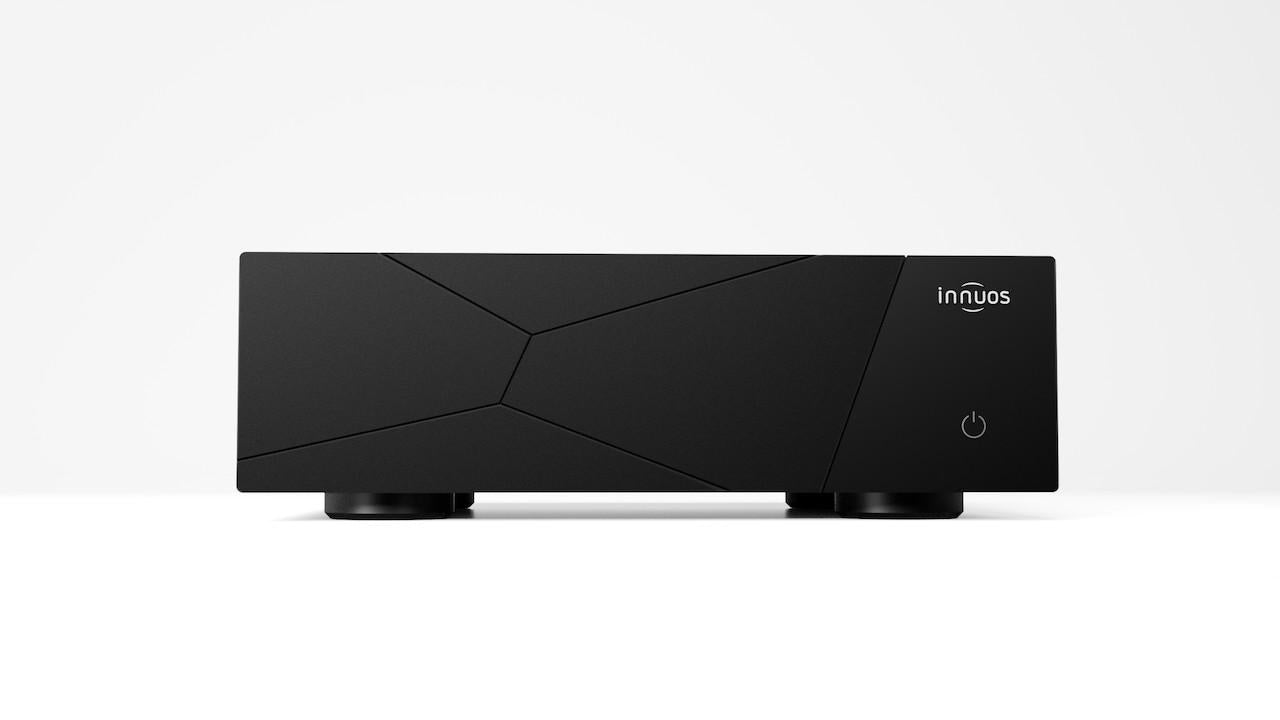

Compact Design

Small but mighty, the STREAM1 makes no compromises on features despite its compact, half-width design. Enjoy the full scope of all Sense has to offer in a small footprint design, with 10mm CNC-machined Aluminium front fascia and a continuous design with LPS1, whether stacked or placed side-by-side

Powerful Performance

Enjoy a smooth and responsive system thanks to the new Stream series mainboard, using 13th Gen Intel Quad-Core processing and 8GB of industrial-grade DDR5 RAM for a fast yet efficient platform that exceeds 200% faster processing than its predecessor. Hear the benefits of a low-latency system with the OS carried on a dedicated TLC power-loss protected SSD, featuring Real-Time Kernel technology trickled down from the ZEN Next-Gen series.

Connectivity

STREAM1 is ready for the latest changes in connectivity, equipped with USB-C for the latest high-speed USB drives, DACs, or for charging smart devices.Still want to rip CDs to the internal storage? Add your own USB Optical Drive and begin ripping in seconds through using intuitive customised ripping engine. Connect to super-fast network speeds through the new 2.5gb Ethernet ports, with a bridged ‘Streamer’ output to connect another network device to.

OPTIONAL OUTPUT MODULES

The STREAM1 comes with a range of optional output modules, allowing you to choose the one that best suits your system requirements, and to ensure the very best audio performance from that specialized output choice. It also gives you scope to change this module as your needs may change when connecting to your choice of DAC, amplifier, active speakers, or more.

Standard DAC Board

• Add RCA analogue output, plus optical and coaxial SPDIF outputs


• Supports PCM up to 24bit/192KHz

Performance DAC Board

• Latest AKM DAC chip and high-quality TCXO clocks


• Support PCM up to 32bit/768KHz, Native DSD up to DSD512


• Independent power supplies for digital and analogue stages


• High-Quality Gold-plated RCA Connectors is a text that

Performance DAC Board

• Latest AKM DAC chip and high-quality TCXO clocks


• Support PCM up to 32bit/768KHz, Native DSD up to DSD512


• Independent power supplies for digital and analogue stages


• High-Quality Gold-plated RCA Connectors is a text that

SPDIF Board

• Provide a superior SPDIF Coaxial, Optical and AES outputs for your DAC


• Supports PCM up to 24bit/192KHz


• Optimised power supply for ultra-low noise


• High-Quality Gold-plated Connectors

TECHNICAL SPECIFICATIONS

File Formats

• WAV, AIFF, FLAC, ALAC, AAC, MP3, DSF, DFF


• MQA Supported

Sample Rates

• PCM: Up to 32bit/768KHz
  DSD: Up to DSD256 via DoP, up to DSD512 via Native DSD


• (24bit/192KHz maximum output on SPDIF & BaseDAC modules)

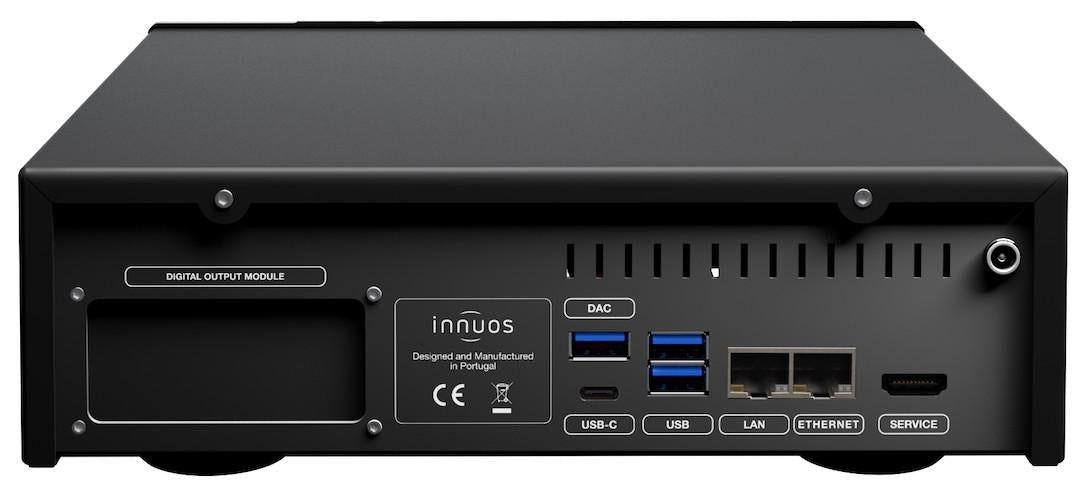

Connectivity

• USB (DACs, Imports, Backups, USB Drive playback)
  - 3 x USB 3.2
  - 1 x USB-C


• Network
  - 2 x 2.5gb Ethernet, Bridged (wired only)


• Other
  - 1 x Digital Output Module Bay
  - 1 x Storage Expansion Bay (1 x M2 nVME SSD)
  - 1 x HDMI (service only)
  - 1 x DC Power Inlet

Streaming Sources

• Streaming Services*
  - Qobuz
  - TIDAL
  - Deezer
  - HighResAudio
  - IDAGIO
  - Spotify Connect
  - TIDAL Connect
  - Qobuz Connect
  - Internet Radio & Podcasts
  - Radio Paradise FLAC and Interactive services

• Local Music Files
  - Internal M2 NVMe SSD
  - NAS Drives/Servers
  - USB Drives**

*Premium subscription required
**’Folder View’ only, full library integration unavailable

CD Ripping

• Available via external USB Optical Drive + installed SSD storage


• Metadata Sources: Discogs, FreeDB, GD3, Musicbrainz


• Ripping format options: FLAC or WAV

Control Software & Integrations

• Innuos Sense App for iPadOS/iOS v16.6 (or later)


• Innuos Sense App for Android 7 (or later)


• Innuos Sense App for Amazon Fire OS 7 (or later)


• Any web browser via my.innuos.com or IP address.


• Roon (Core and Endpoint modes supported)


• HQPlayer (NAA Endpoint mode only)


• AssetUPnP (UPnP Server mode only)

Power

• 19v DC Input, external Switch-Mode Power Supply (Optional LPS1 upgrade available)

Dimensions

• Dimensions: 240mm x 200mm x 80mm (W x D x H)

Contents

• Innuos Stream 1


• Switch Mode Power Supply


• AC Power Cable (2.0m)


• Ethernet Cable (2.0m)


• Quick Start Guide
