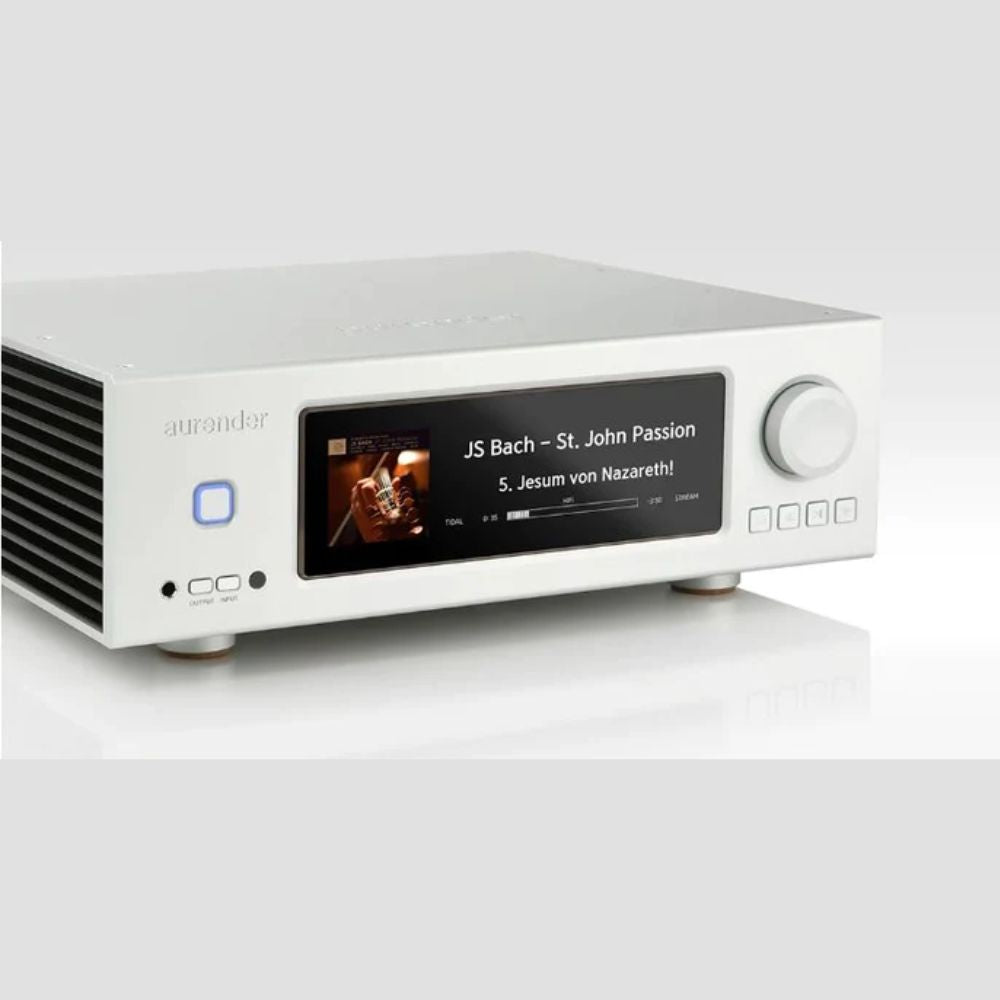

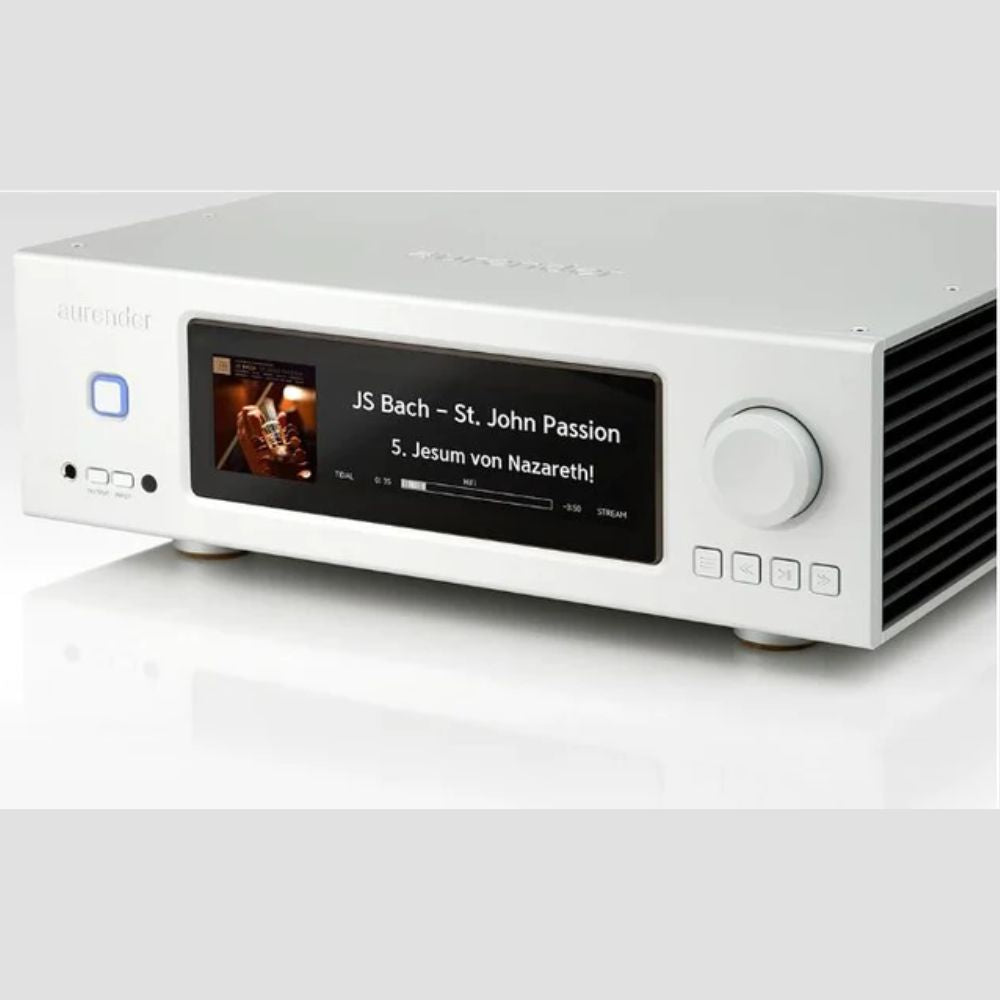

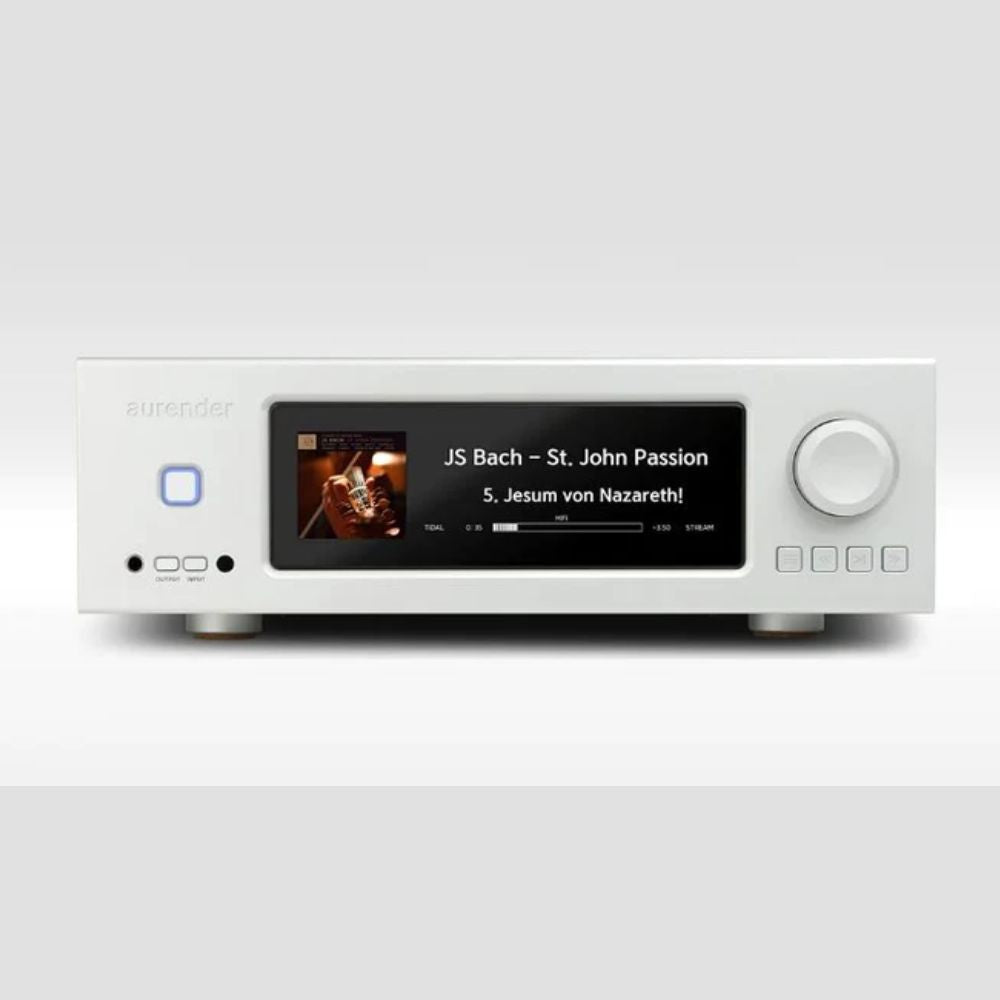

Aurender AP20
Shipping times may vary between 1 to 4 weeks depending on vendor supply and other factors. Please text or call 651-217-2083 to find the most accurate fulfillment times.
Shopify Payments is one of the most secure processors available, using 128-bit SSL encryption technology to protect your information during checkout.
Will this product work in my system? We want you to feel great about your purchase. Many of our products are eligible for a ten day home audition. This allows you to test out the product in your home system, risk free, before you buy. Call or email for details.
Choose options
AP20
A premium Integrated Amplifier
Ultra High-Performance Class D Amplifiers
There’s Class D, and then there’s ridiculously good Class D. AP20 utilizes the finest amplifier modules available. Designed by renowned engineer Bruno Putzeys, the Purifi Eigentakt 1ET400A amplifier is free of digital harshness, edginess, and grain. Featuring impressive specifications that are reflected in its extraordinary audio performance, AP20’s dual-mono amplifier section represents the state-of-the-art of Class D amp technology.
Dead-Quiet Linear Power Supply

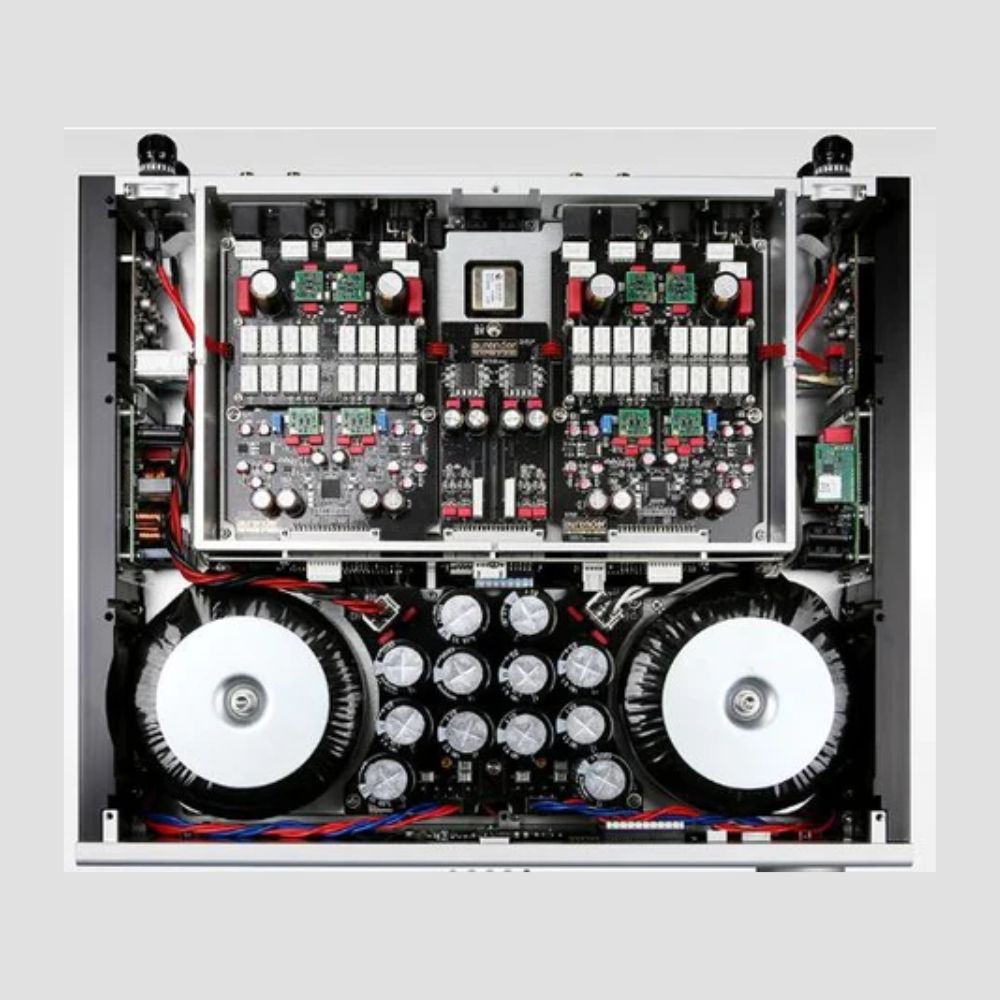

Most Class D amplifier implementations utilize switch mode power supplies because they are efficient, cool-running, and inexpensive. However, this can introduce noise and distortion to the signal path, resulting in an audio presentation that lacks a sense of natural analog grace. So, in typical Aurender fashion, AP20 uses SIX discrete toroidal transformers to power the CPU, left & right DAC boards, FPGA processor, and power output stages, respectively.
Aurender’s Best DAC
Aurender designed the AP20 for those seeking the simplicity of an all-in-one unit without sacrificing a high level of resolution, transparency, and inner detail. Built around an integrated dual-mono AKM4497 DAC module, AP20’s best-in-class DAC section delivers high-resolution PCM, DSD, and MQA full-decoding at the highest level.
Analog Volume Control
In any system, the quality of the audio presentation is significantly impacted by the volume control mechanism of the preamplifier. Remarkably, AP20 employs an analog-domain volume control based on an R2R stepped-attenuator system. Volume control of this quality is utterly uncommon in digitally-equipped integrated amps, and it is a major reason why AP20 provides such a natural, open sound.
Master Clock Input
Although AP20 is equipped with an extremely precise OCXO clock system, jitter can be minimized further by connecting a 10MHz Master Clock signal generator such as Aurender’s MC10.
Dedicated Headphone Section
In addition to being a stellar amplifier for loudspeaker systems, AP20 also features a 1/4″ headphone output for quiet
Physical Specifications
| Dimensions | 16.93″W x 14.2″D x 5.9″H |
| Weight | 57.3 lb |
| Material | Machined Aluminum Chassis |
| Front Panel Display | 8.8″ 1920 x 480 Wide IPS Color LCD |
Technical Specifications
| Power Supply | Full Linear, 2x 400VA Toroidy Transformers (L&R Power Amp), 2x 50W (L&R Audio Boards), 1x50W (CPU), 1x25W (FPGA) |
| CPU | Intel Low Power Quad Core |
| RAM | 8GB |
| Library Storage Capacity | 2X 2.5″ Compartments (User-Installable Storage) |
| SSD for System & Cache | 480GB NVME |
| Data USB Ports | 2X USB 3.0 (Rear) |
| Software Suite | Aurender Conductor, A30 Manager |
| Ethernet Port | Double-Isolated Gigabit LAN |
| Uninterruptible Power Supply (UPS) | Yes (Super Capacitors) |
| Power Consumption | Play (47W), Peak (80W), Standby (6W) |
| CD Ripping Capability | N/A |
Audio Specifications
| Volume Control | Relay-Based R2R Stereo Attenuator -64dB ~ 0dB., Velocity Sensitive Operation |
| Analog Outputs | XLR (Balanced) |
| DAC Chipset | AKM 4497 – Dual-Mono |
| Audio Word Clock | OCXO |
| Analog Outputs Supported Format | PCM: Up to 32-bit / 768 kHz; DSD: Up to DSD512 |
| Digital Outputs | N/A |
| SPDIF & AES/EBU Output Supported Format | N/A |
| Digital Inputs | 1X Coax RCA, 1X Coax BNC, 2X Optical/Toslink |
| Headphone Section | 1 x 1/4″ (6.5mm) Unbalanced |
| MQA Support | MQA Full-Decoder On Board |
| Compatible Formats | DSD (DSF, DFF), WAV, FLAC, AIFF, ALAC, M4A, APE and others |
| DSD-to-PCM Conversion | N/A |
Amplifier Specifications
| Amplifier Module | 2x Purifi 1ET400A Class D Amplifier Module in Dual-Mono Configuration |
| Rated Power Output | 200 W into 8 ohms / 350 W into 4 ohms |
| THD (20Hz-20kHz) | 0.003 % (1W to 200 W, 8 ohms and 4 ohms) |
| Damping Factor | 800 (ref. 8Ω 20 Hz to 6.5 kHz) |
| Output Impedance | <65μΩ @ 1kHz |
| Power Configuration | Full linear & Dual-Mono – 2 x 400VA Audio grade Toroidy toroidal transformers |
| Power Supply Filter Capacitors | Total 80,000uF ( 40,000 uF / channel) |
| Binding Posts | WBT nextgen™ pole terminal – Signal conductor made of pure copper |
OCXO Precision Clock
AP20’s OCXO based precision clock generation system incorporates a Field-Programmable Gate Array (FPGA) with sub 100fs jitter-reducing clock generator to precisely time digital audio data transmissions and minimize jitter to below negligible levels.
Analog Pass-Through Inputs

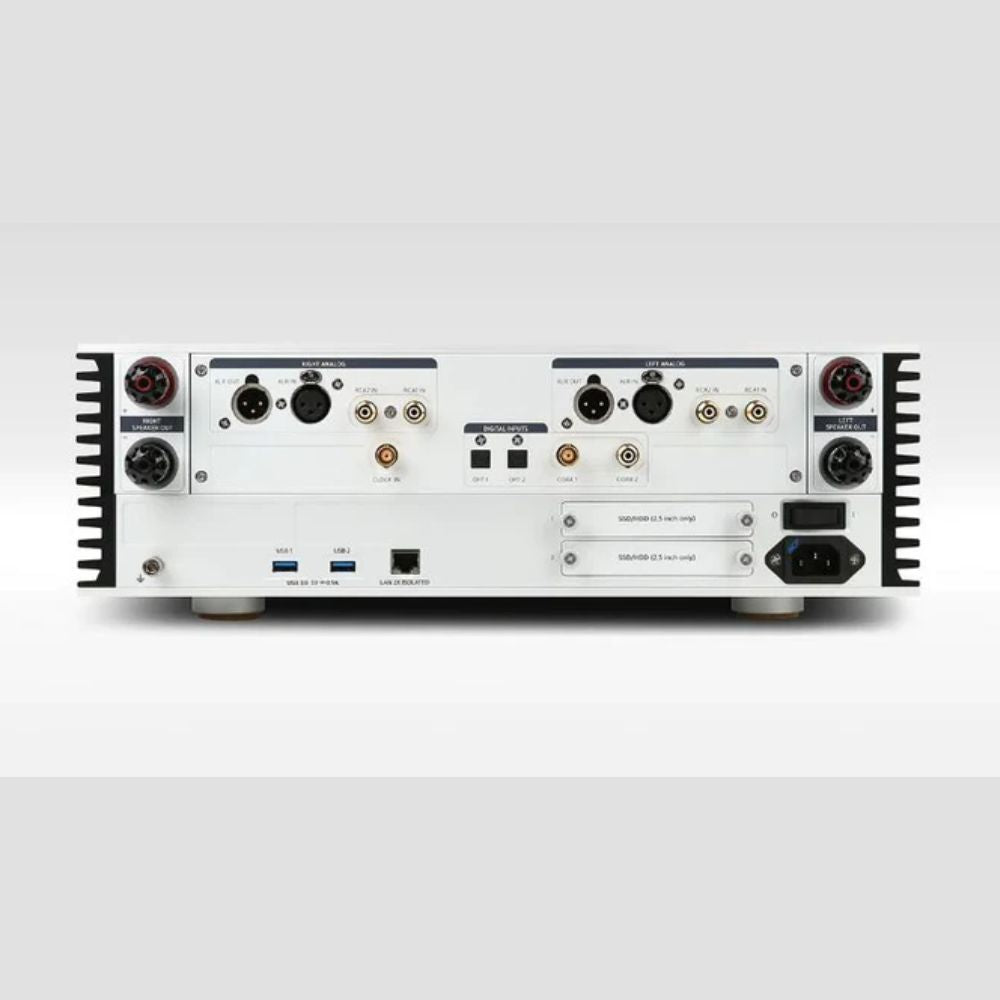

The AP20 provides a suite of analog inputs including 1X balanced XLR and 2X single-ended RCA, offering an ideal solution for integrating external analog sources into your audio system. Vinyl enthusiasts can connect their phono stage to an available analog input and enjoy pure analog pass-through without any A/D conversion in the signal path.
Digital Connectivity
With a variety of digital inputs including 1X RCA SPDIF, 1X BNC SPDIF, and 2X TOSLINK optical interfaces, AP20 is well-equipped to render external digital sources such as a CD transport, media player, or TV via its superior internal DAC.
Variable Output XLR Output
AP20’s high-quality balanced XLR output allows the user to feed a second system such as a distributed whole-home audio installation, or subwoofer(s) with line-level input (XLR-to-RCA adapters may be required in some cases).
