Vinnie Rossi Brama Integrated Amplifier

Analog is always timeless.

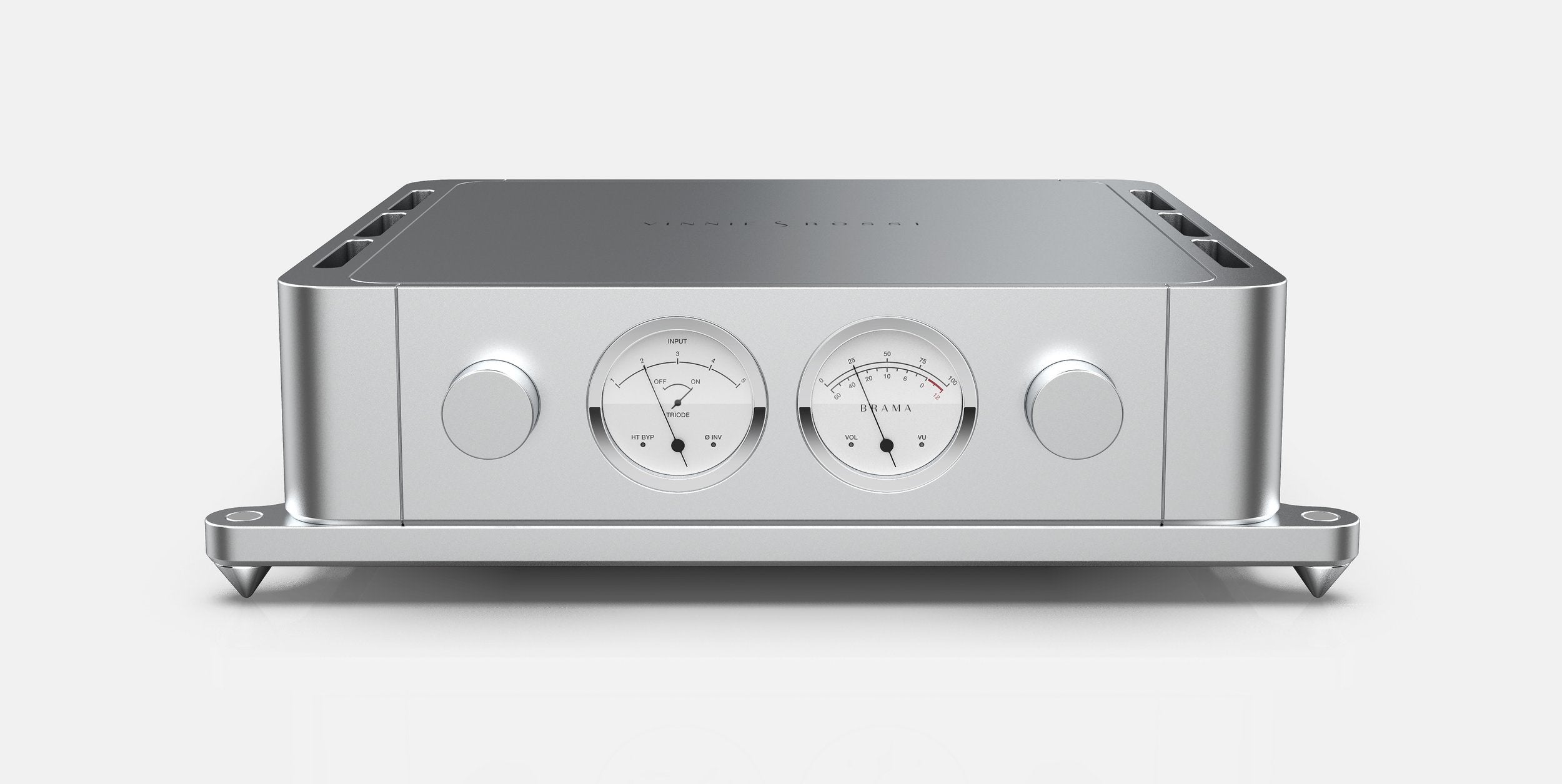

The front panel of the Brama Integrated Amplifier reveals a clean layout, luxurious feel, and timeless design that intentionally excludes digital displays and push buttons. Each bespoke, analog gauge features precision air core movements, responsive driver circuitry, and machined aluminum hands. Sapphire glass and highly-polished stainless bezels seamlessly integrate the gauges to the front panel. Solid aluminum knobs on the front panel are attached to Swiss-made, precision-stepped rotary switches that give manual control an incredibly satisfying feel. As with all Brama gauges, backlight intensity is adjustable via the Brama Remote and is visually stunning, day or night!

Responsive, resilient power.

Brama Integrated Amplifier’s massive power supply boasts a custom-wound 1750VA, magnetically shielded transformer with a highly inductive, insulated core. Dual secondary windings feed independent, dual-mono linear power supply PCBs for both the preamplifier and power amplifier sections. Ultrafast soft recovery diodes, massive filter capacitors, and super-regulated outputs deliver vanishingly low noise and superb dynamics. The AC mains power is continuously monitored for fault conditions, delivering protection and notification to the Brama Remote in microseconds. No need to replace interior fuses, as our Hall-effect current sensors deliver advanced protection faster than you can blink!

300B, or not to be…

Brama Integrated Amplifier’s linestage is Vinnie Rossi’s realization of the audiophile dream – having it both ways, each at the highest possible level of performance: Whether you are seeking the tonally rich and holographic presentation of 300B directly-heated triodes, or the absolute purity of solid-state, the Brama linestage is the only one in the world that lets you enjoy both sonic presentations with the press of a button. Fully balanced, dual mono input-to-output architecture is positioned directly behind the rear panel for the shortest possible signal paths. Super-regulated power supplies for both the power rails and 300B heating supply achieve ultra-low noise and optimal transient response.

Control. Lots of it.

Brama Remote’s intuitive menu structure, high resolution display, and tactile push buttons provide you with seamless control of your listening experience. A built-in ambient light sensor and accelerometer automatically controls the display brightness and senses when you are ready to take control. Bluetooth communication with your Brama Integrated Amplifier means there are no line-of-sight or range issues, and USB-C connectivity makes battery recharging and firmware updates easy. Brama Remote is machined from a solid block of aluminum and uses sapphire glass for the display area, offering remarkable scratch resistance and clarity.

Additional Features

Controls

 • Volume control: 100-step, precision resistor ladder topology

• Input select: 1 through 5

• Gain: Low/High

• Triode mode: Off/On (Class A, 300B linestage)

• Balance: 12-steps L/R from center

• Phase: Normal/Inverted outputs

• Stereo/Mono mode

• Memory Inputs: Yes (each input saves the setting for Triode,

Gain, Balance, Phase and Stereo/Mono)

• Home Theater Bypass mode: Yes

___________________________________

Front Panel

• Left gauge: Input (1-5) and Triode (Off/On), with indicator LEDs

for HT-Bypass and Phase Inversion

• Right gauge: Volume mode (0-100) and VU mode, with indicator

LEDs to show selected mode

• Gauge backlight: Off, Low, Medium, High

• Gauge Glass: Sapphire crystal

• Left knob: 24-position, Swiss rotary encoder with magnetic

sensing and built-in push-button switch for powering On/Off (3-second

push-and-hold)

• Right knob: 48-position, Swiss rotary encoder with magnetic

sensing and built-in push-button switch for mute (quick press) and

Volume/VU mode select (3-second push-and-hold)

___________________________________

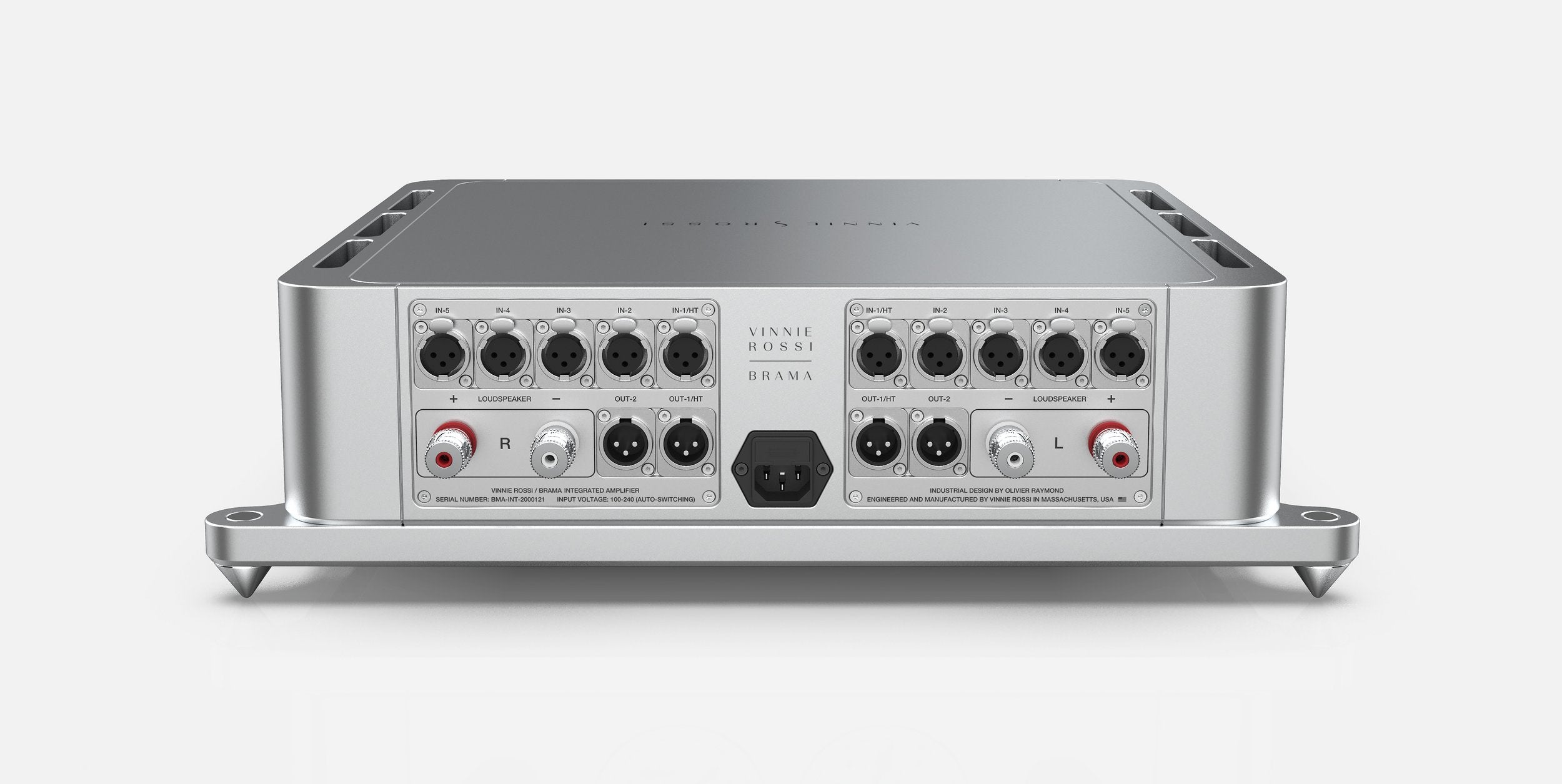

Rear Panel

 • Line-level inputs: 5 sets of balanced XLR inputs

(1 set of RCA-to-XLR adapters are included)

• Line-level outputs: 2 sets of balanced XLR outputs (volume controlled)

• Speaker outputs: WBT Nextgen 0710-Ag binding posts

• AC input jack: IEC 320-C14 with built-in fuse holder

___________________________________

Remote

 • 2.4” high-resolution LCD display with sapphire glass

• Connectivity to Brama: Bluetooth

• Adjustable backlight (Manual mode / Auto-mode via ambient

light sensor)

• 3.7V Li-ion rechargeable battery (user-replaceable)

• USB-C jack (for battery charging and firmware updates)

• Built-in accelerometer (for automatic wake up from sleep mode)

• Machined from a solid block of aluminum

___________________________________

Power Supply

 • Transformer: Custom-designed, 1750VA toroid with dual-mono

secondary windings (for both L and R linestage and power output stages). Fully encapsulated in epoxy resin and shielded.

• Belleson SPX-VR super-regulated power supplies for L/R linestage sections and 300B cathode heating.

• Separate, isolated power module for control and gauge circuitry.

___________________________________

Protection

 • AC mains voltage (under and overvoltage protection)

• Preamplifier outputs (over-current protection)

• Speaker outputs (over-current and over-temperature protection)

• Automatic reporting to Brama Remote (diagnostics)



Specifications

______________________________________

AC Mains: 100-125Vac or 200-250Vac, 50/60Hz

(Transformer primaries are automatically switched based on the

AC mains voltage detected)

______________________________________

Output Power (8-ohms): 200W RMS per channel

Output Power (4-ohms): 350W RMS per channel

______________________________________

THD+N (using solid-state linestage): < 0.1% (20Hz – 20kHz)

THD+N (using 300B DHT linestage): < 1% (20Hz – 20kHz)

______________________________________

Frequency Response:

5Hz – 100kHz (+/- 0.5dB)

______________________________________

Signal-to-Noise Ratio: > 100dB

______________________________________

Input Impedance: 100k ohm

______________________________________

Gain: 24db (low) / 32db (high)

______________________________________

Balanced line-output impedance: < 100 ohms

______________________________________

Speaker Output Impedance: < 0.01 ohms

______________________________________

IEC Jack Fuse: 12A, Slow Blow (5x20mm)

______________________________________

Product Weight: 85 lbs (38.5 kg)

Product Dimensions (including knobs, jacks, feet):

20.5″ width x 17″ depth x 5.75″ height (520mm x 430mm x 145mm)

Remote Dimensions: 6″ x 2″ x 0.5″ (150mm x 50mm x 12.5mm)

Shipping Weight: 110 lbs (50 kg)

Shipping Carton Dimensions: 24″ x 24″ x 14″ (610mm x 610mm x 355mm)
