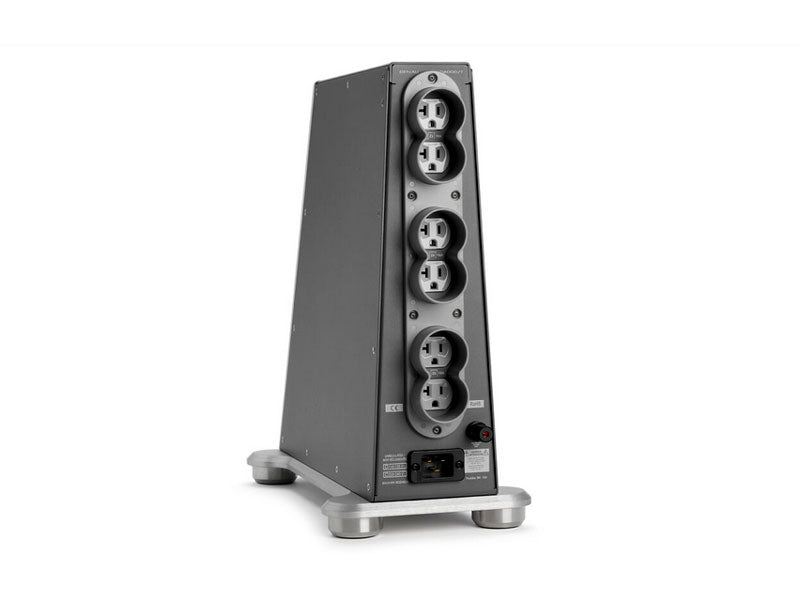

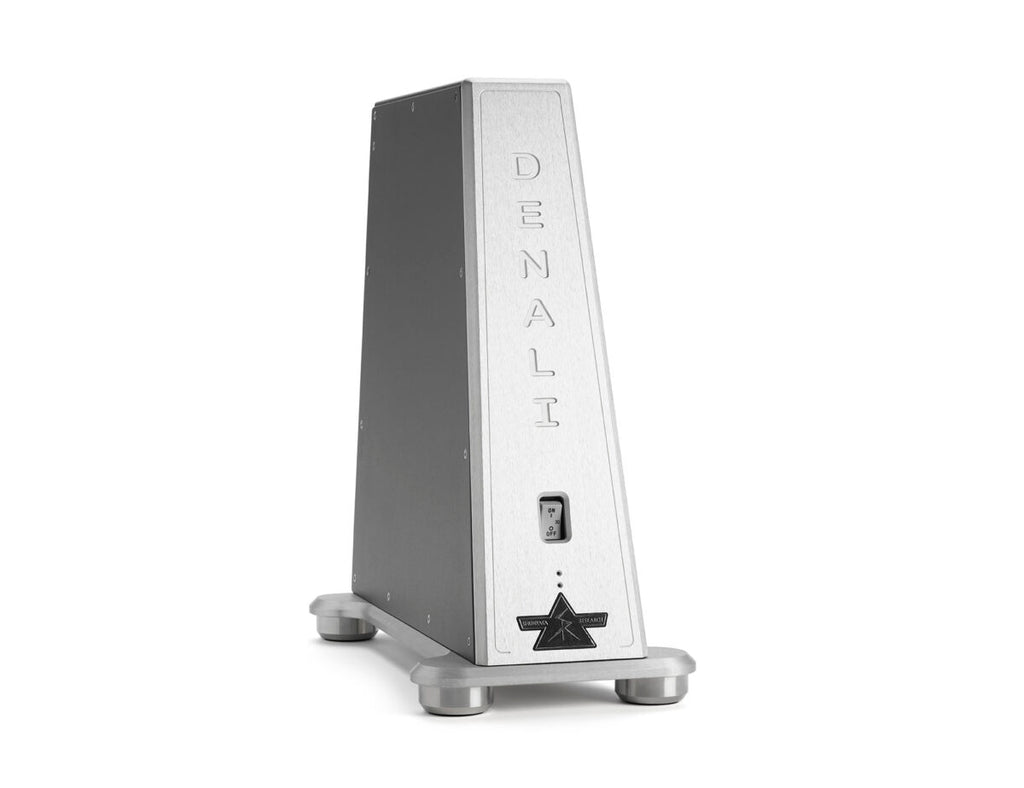

Shunyata Research Denali 6000/T v2 Power Conditioner

Peak Performance: The Denali 6000/T v2

The Denali 6000/T v2 is packed with updated v3 filtering, larger versions of Shunyata’s patented QR/BB technology and NIC (Noise Isolation Chambers). CGS Ground noise filtering minimizes ground noise. As always, the integral three-stage Trident Defense System provides optimum protection from spikes and surges.

Even the Denali 6000/T v2’s heavy, integrated stand provides massive isolation from floor borne vibration. Patented technologies from within the Denali 6000/Tower are now applied within critical medical and studio, mastering and film applications world-wide.

With its litany of updates, the Denali 6000/Tower v2 stands as the most meticulously crafted, scientifically vetted product of its kind.

The Denali 6000/Tv2 is available for a limited time only!

Technology

QR/BB™ TECHNOLOGY

The QR/BB™ module possesses the ability to act as an electric charge reservoir, meaning it stores and releases energy in a manner that improves a component’s access to instantaneous current.

Dynamics are actually improved reducing any sense of dynamic strain often heard from amplifiers that are connected with lesser power cables.

The sonic result is a lifelike presentation of timing and dynamic contrasts in sound that cannot be replicated by ANY other means. In layman’s terms, it acts like a super-charger for amplifiers, pre-amps, DACs and CD players.

DYNAMIC TRANSIENT CURRENT DELIVERY

DTCD™ Analysis is a technique that measures instantaneous current through low impedance electrical conductors and contacts. Shunyata Research uses it to optimize the design, specification and construction of parts and materials to ensure maximum current delivery performance. Each part, conductor, noise circuit and material allows for maximum throughput of instantaneous current.

Listeners will experience earth-shaking low-frequency performance from even the highest-current amplifiers as well as dynamic contrasts unheard of outside of a live event. More than any other design parameter, Shunyata Research’s skill in eliminating resistance and maximizing peak-current delivery is unmatched.

NIC™ TECHNOLOGY

The NIC™ (Noise Isolation Chamber) is a patented technology that reduces high frequency power line noise.

NICs™ use a non-reactive ferroelectric substance that actually absorbs high frequency noise. This reduces noise without any of the negatives associated with power filter coils, capacitors and transformers.

Specifications--

Maximum Voltage:

125 VAC r.m.s. unregulated

240 VAC r.m.s. unregulated

Input Current Ratings:

Maximum Continuous Current: 20A @ 125 VAC

Maximum Continuous Current: 16A @ 240 VAC

Output Current Ratings:

Maximum Current per Socket: 20A @ 125 VAC

Maximum Current per Socket: 16A @ 240 VAC

Transient Suppression:

40,000 Amps @ 8/50 μs

Over-Current Protection:

Hydraulic Electromagnetic Breaker

Wiring System:

Buss system: 8 gauge ArNi® VTX™

Circuit wiring: 10 gauge ArNi® VTX™

Voltage Rating: 600 V 105° C

Noise Suppression:

IEC Input to Output:

> 50 dB NR (Bandwidth: 100 kHz – 30 MHz)

Socket to Socket:

> 60 dB NR (Bandwidth: 100 kHz – 30 MHz)

Connectors & Sockets:

Inlet: IEC C20

Outlet Sockets: NEMA 5-20R

Isolation Zones: 6 individual zones

QR-BBTM / NICTM System: 6,775 mm2

Vibration Control:

Vibration dampening panels (internal)

AC outlet dampening gaskets

Shunyata Isolation SSF-50 Footer

Construction:

Aluminum and steel chassis

Anodized, aluminum faceplate

GPNR:

Length: 127 mm

Diameter: 38 mm

Dimensions:

Width: 7.75 inches (19.7 cm)

Depth: 17.25 inches (43.8 cm)

Height: 17.75 inches (45.0 cm)

Weight:

24.1 lbs (11.0 kg)
