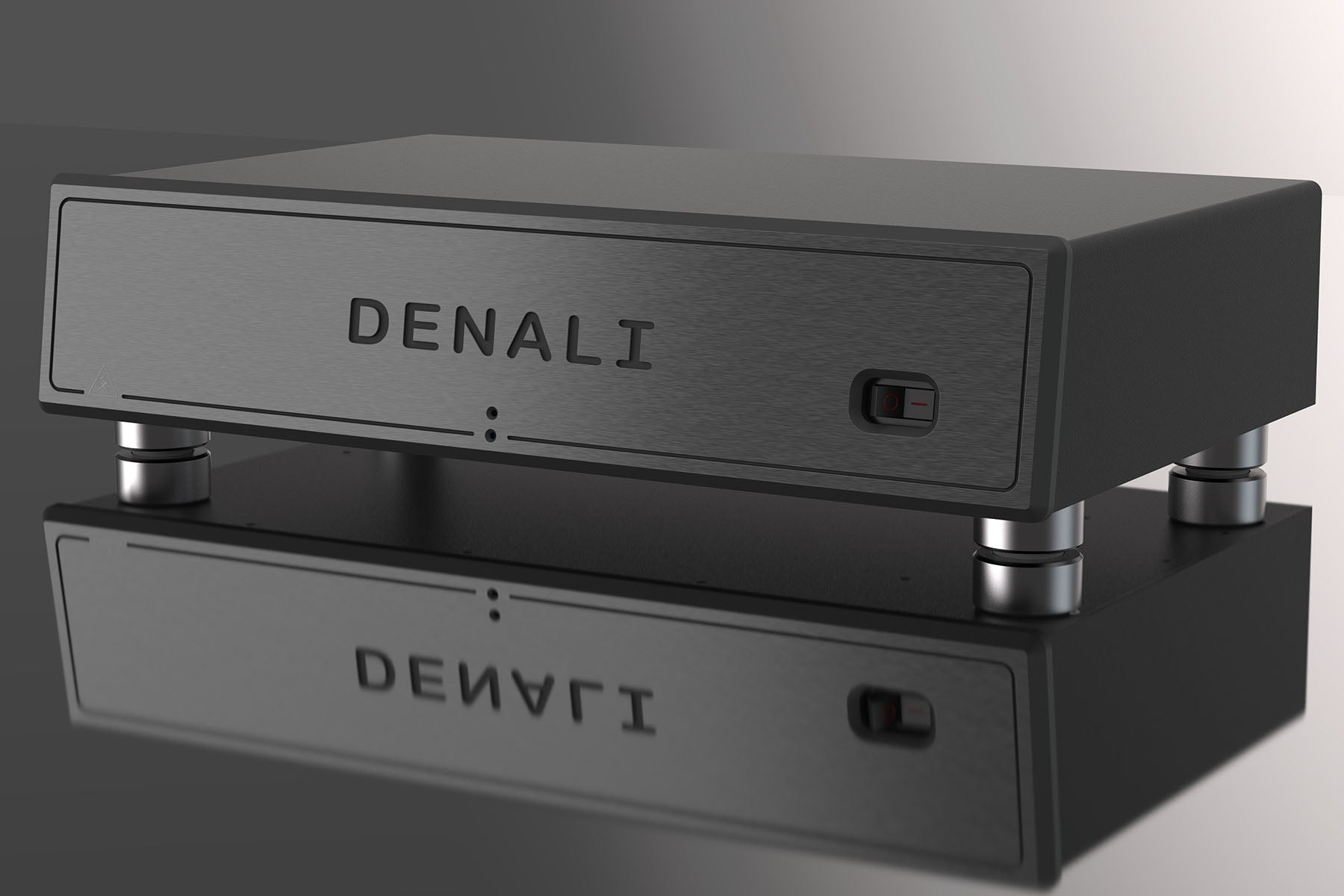

Shunyata Research Denali 6000/s v2 Power Conditioner

The Denali 6000/S, V2

The Denali 6000/S v2 adds measurably improved performance and technology to a design that had already won multiple Product of the Year Awards and raves from every critic that has reviewed it. Design advances within include objectively lowered noise, 6 zones of isolation and superior high-current performance for amps and other high-current electronics on all outlets. The Denali 6000/S v2 features patented technologies and proprietary components that are unavailable in any other competitive product. The Denali supplies unrestricted peak current to multiple components while dramatically reducing noise from the power line and intercepting noise from component-to-component interactions, isolating each component in the system.

The Denali 6000/S is designed to provide the finest performance available, at a price-point intended to embarrass the competition.

Reviews and Awards--

Technology

QR/BB™ TECHNOLOGY

The QR/BB™ module possesses the ability to act as an electric charge reservoir, meaning it stores and releases energy in a manner that improves a component’s access to instantaneous current.

Dynamics are actually improved reducing any sense of dynamic strain often heard from amplifiers that are connected with lesser power cables.

The sonic result is a lifelike presentation of timing and dynamic contrasts in sound that cannot be replicated by ANY other means. In layman’s terms, it acts like a super-charger for amplifiers, pre-amps, DACs and CD players.

DYNAMIC TRANSIENT CURRENT DELIVERY

DTCD™ Analysis is a technique that measures instantaneous current through low impedance electrical conductors and contacts. Shunyata Research uses it to optimize the design, specification and construction of parts and materials to ensure maximum current delivery performance. Each part, conductor, noise circuit and material allows for maximum throughput of instantaneous current.

Listeners will experience earth-shaking low-frequency performance from even the highest-current amplifiers as well as dynamic contrasts unheard of outside of a live event. More than any other design parameter, Shunyata Research’s skill in eliminating resistance and maximizing peak-current delivery is unmatched.

NIC™ TECHNOLOGY

The NIC™ (Noise Isolation Chamber) is a patented technology that reduces high frequency power line noise.

NICs™ use a non-reactive ferroelectric substance that actually absorbs high frequency noise. This reduces noise without any of the negatives associated with power filter coils, capacitors and transformers.

Specifications--

Maximum Voltage:

90-125 VAC r.m.s. unregulated (US)

220-240 VAC r.m.s. unregulated (EU, AS, AU)

Input Current Ratings:

Maximum Continuous Current: 20A (US, AS)

Maximum Continuous Current: 16A (EU, AU)

Output Current Ratings:

Max Current/Outlet: 20A (US, AS)

Max Current/Socket: 16A (EU, AU)

Transient Suppression:

Maximum Transient Protection: 40,000 A @ 8/50 μs

Over-Current Protection:

Hydraulic Electromagnetic Breaker

Wiring System:

8 gauge ArNi® VTX™ Buss System

10 gauge ArNi® VTX™ Wiring

Ratings: 600 V 105° C

Noise Suppression:

Input to Output (100 kHz – 30 MHz): > 50 dB reduction

Zone to Zone (100 kHz – 30 MHz): > 60 dB reduction

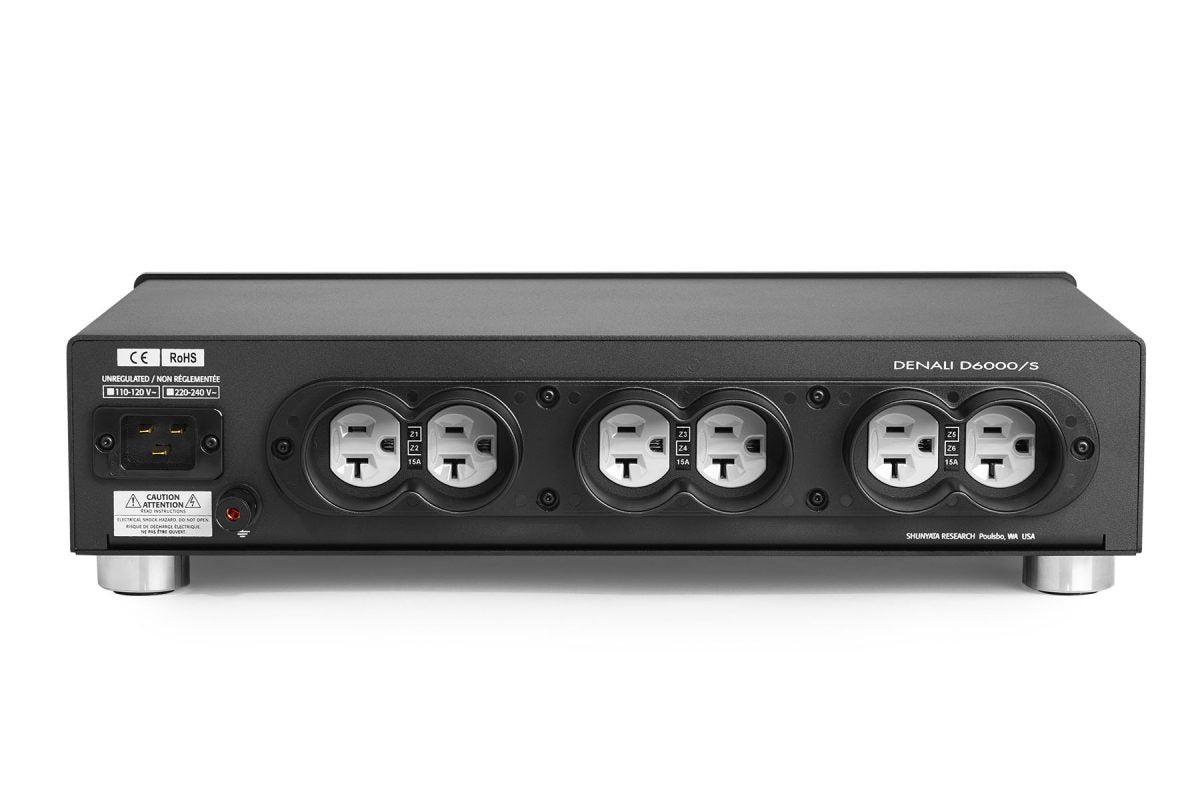

Outlets & Connectors:

Zones of Isolation: 6 Zones

Inlet: IEC C19RUS Outlets: 6 NEMA5-20R

AS Outlets: 6 NEMA 5-20R

EU Sockets: 6 CEE 7/3

AU Sockets: 6 AS/NZS 31123

Vibration Control:

Vibration dampening panels (internal)

AC outlet dampening gaskets

Shunyata Isolation SSF-38 Footer

Construction:

Aluminum and steel chassis

Anodized, aluminum faceplate

GPNR:

Length: 80 mm

Diameter: 38 mm

Dimensions:

Width: 17.0 inches (43.2 cm)

Depth: 10.0 inches (25.4 cm)

Height: 4.4 inches (11.2 cm)

Weight: 17.5 lbs (7.95 kg)
