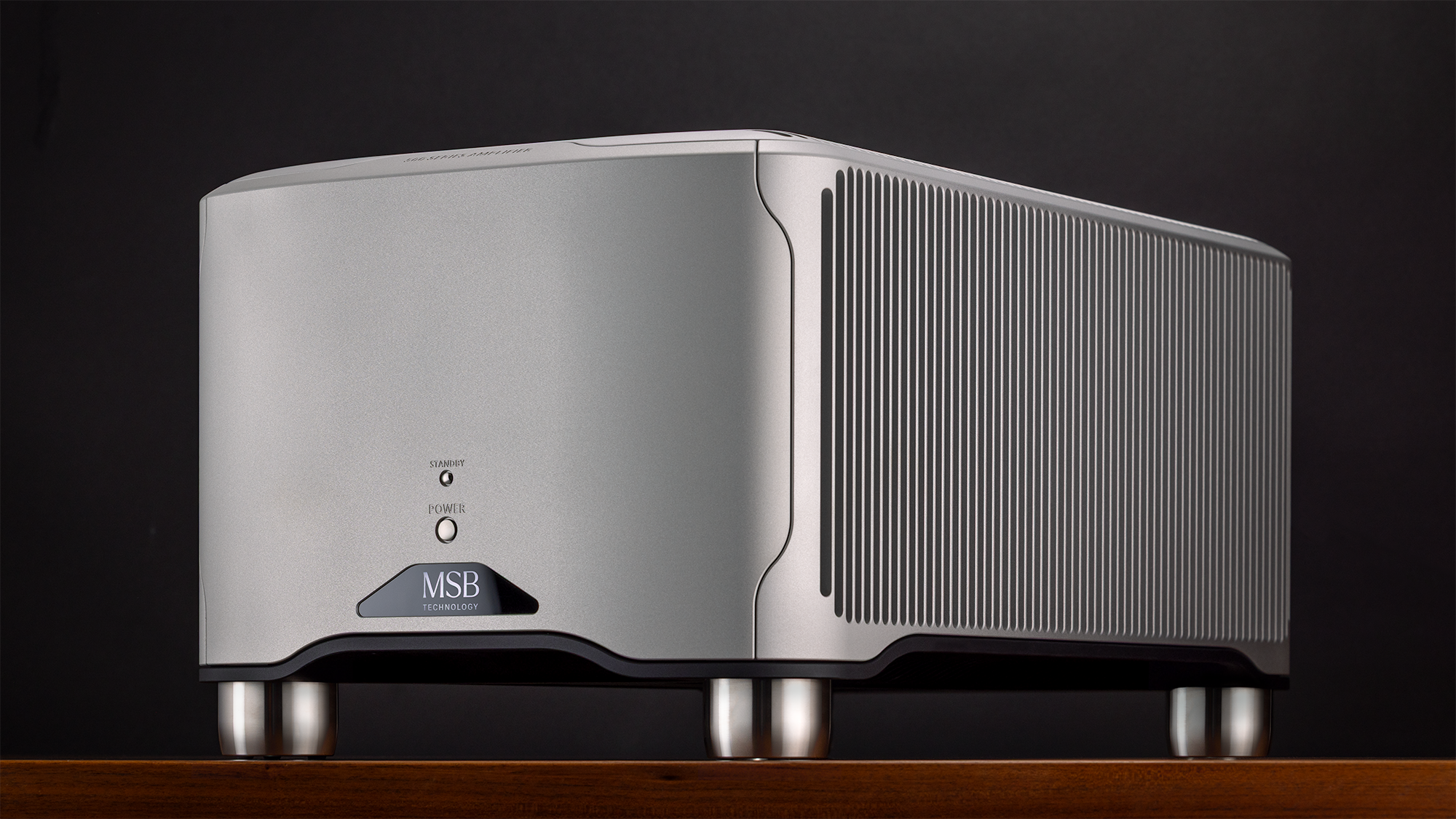

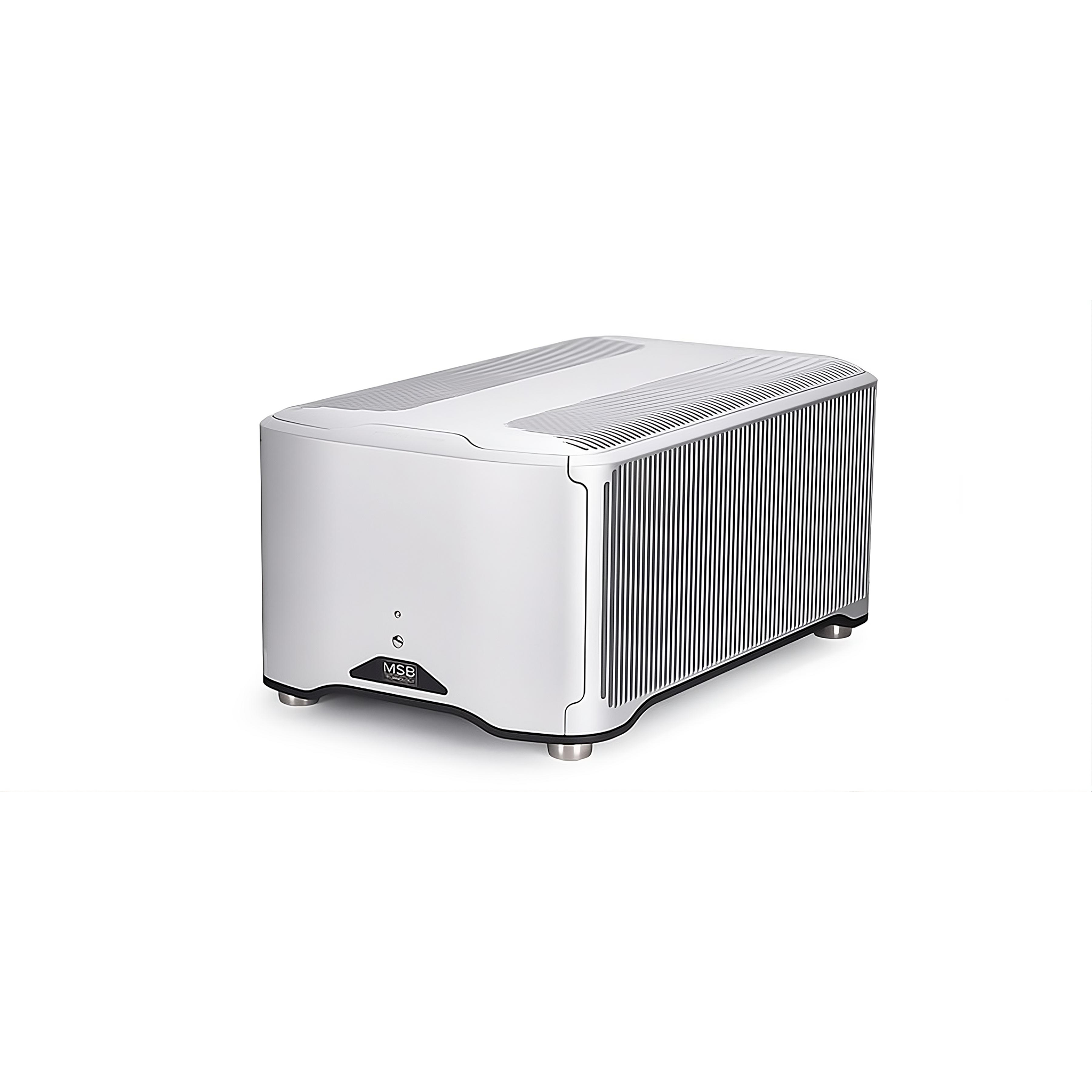

MSB Technology S500 Stereo Amplifier
MSB's cutting edge DACs required a complementary amplifier, resulting in a fresh, blank canvas design capable of confronting exceptionally wide dynamic range head-on. By fine-tuning the amplifier's architecture in critical areas, the primary design goals became audio quality, durability, and the capability to drive any type of speaker.
The concept of an amplifier has been revolutionized by integrating a fully modular design into the S500, along with a 1.0 Farad Power Core, a precisely matched impedance input stage, and an entirely machined CNC case. As MSB's most outstanding amplifier to date, the 500 series redefines excellence and establishes a new standard in the industry.
Shipping times may vary between 1 to 4 weeks depending on vendor supply and other factors. Please text or call 651-217-2083 to find the most accurate fulfillment times.
Shopify Payments is one of the most secure processors available, using 128-bit SSL encryption technology to protect your information during checkout.
Will this product work in my system? We want you to feel great about your purchase. Many of our products are eligible for a ten day home audition. This allows you to test out the product in your home system, risk free, before you buy. Call or email for details.
Choose options
S500 STEREO AMPLIFIER
Equipped with custom, low-noise, high-current toroidal transformers and robust high-current output buffers, the S500 delivers a transparent, three-dimensional listening experience that is entirely devoid of listener fatigue. Every component was carefully selected for its sonic performance and long-lasting durability, guaranteeing the longevity of your amplifier.
Powered by innovation.
The world’s leading DACs needed an amplifier to match. The result was a clean slate design that could meet our DAC’s ultra high dynamic range head on. With the amplifier’s architecture optimized in critical areas, audio performance, longevity, and an ability to drive any speaker became our principal design parameters. We redefined the idea of what an amplifier can be, embedding the S500 with a fully modular design alongside a 1.0 Farad Power Core, a matched impedance input stage and an all billet CNC case. The finest amplifier we’ve ever created, the 500 series redefines excellence and sets a new bar in the industry.
Design without compromise.
The S500 features a discrete design featuring a class A matched impedance input stage. This result is a product with minimized signal reflections, input noise, and distortion while also maximizing power transfer and dynamic range in a zero negative feedback design. With custom low-noise high-current toroidal transformers and rugged high-current output buffers, the S500 provides a transparent, holographic listening experience that’s completely fatigue free. All components were meticulously chosen for their sonic performance and longevity, ensuring your amplifier is built to last.

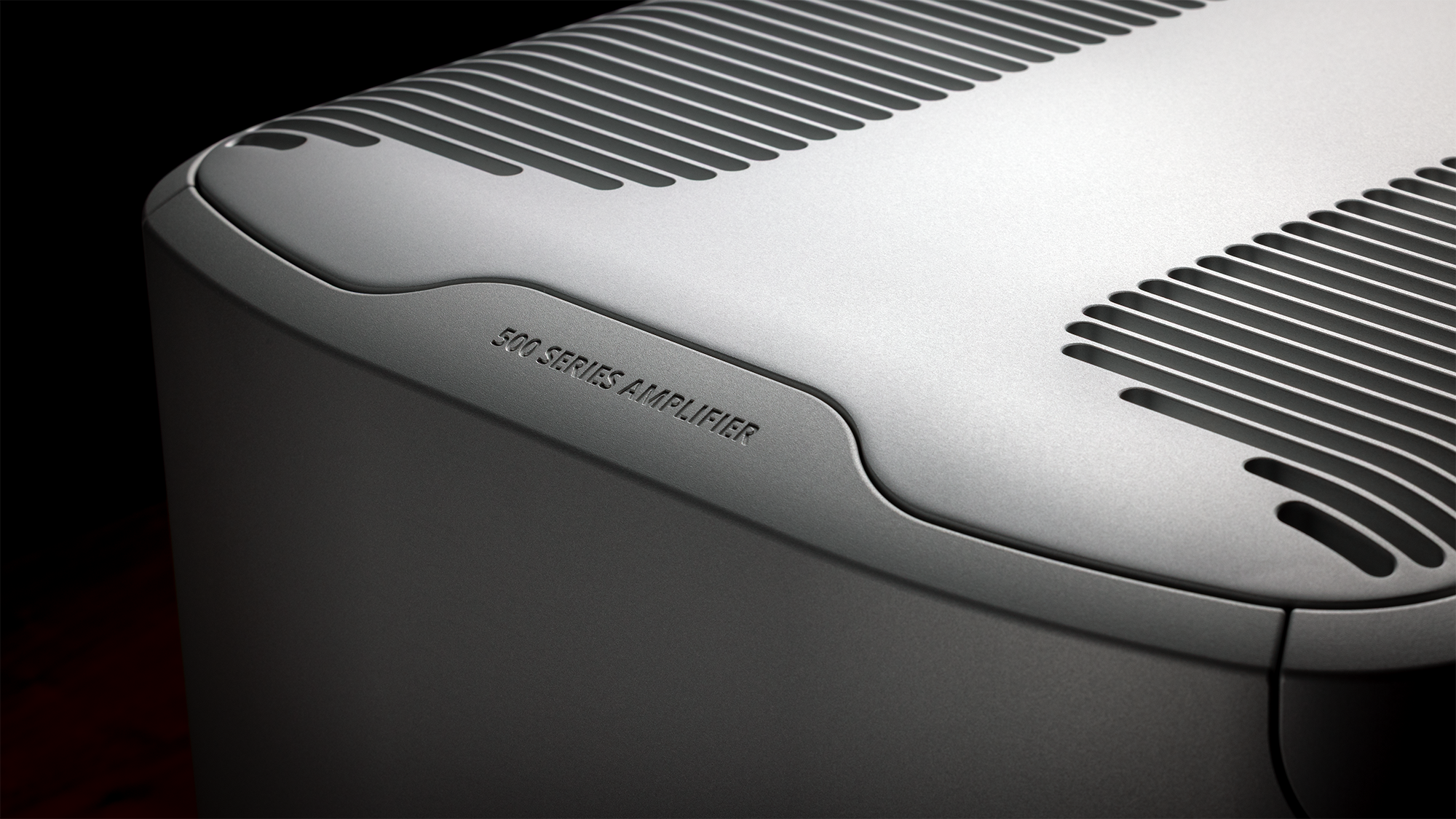

Billet CNC heatsink.
The 500 series amplifier is designed and lovingly crafted in our factory based in California. Each of the heatsinks start out as a 51lb aluminum block before sixty percent is removed over eight hours of machining, resulting in 17.5 lbs of refined aluminum. This high efficiency design provides a surface area of over 10,000 in² per amplifier. What’s more–the fin thickness is slightly varied to help reduce resonances and ringing in the heatsinks, while multiple high power heat pipes distribute heat evenly for optimal thermal and electrical performance.
Core values.
Building the 500 series amplifiers with a core enclosure greatly improved their reliability and performance. Upon completion, the cores are rigorously tested and stocked for orders, ensuring the highest quality product is ready at a moment’s notice. With this segmentation, your system is optimized for performance and resilience.
Smart control features.
The S500 is equipped with a simple, user-friendly control interface. Intuitive push buttons, remote commands, and the 12V triggers guarantee control over power and standby modes. Further control of amplifier “power on” timers and soft-start circuits allow a multi-amplifier system to power up without putting strain on your listening room’s electrical system.
Powerful configurations.

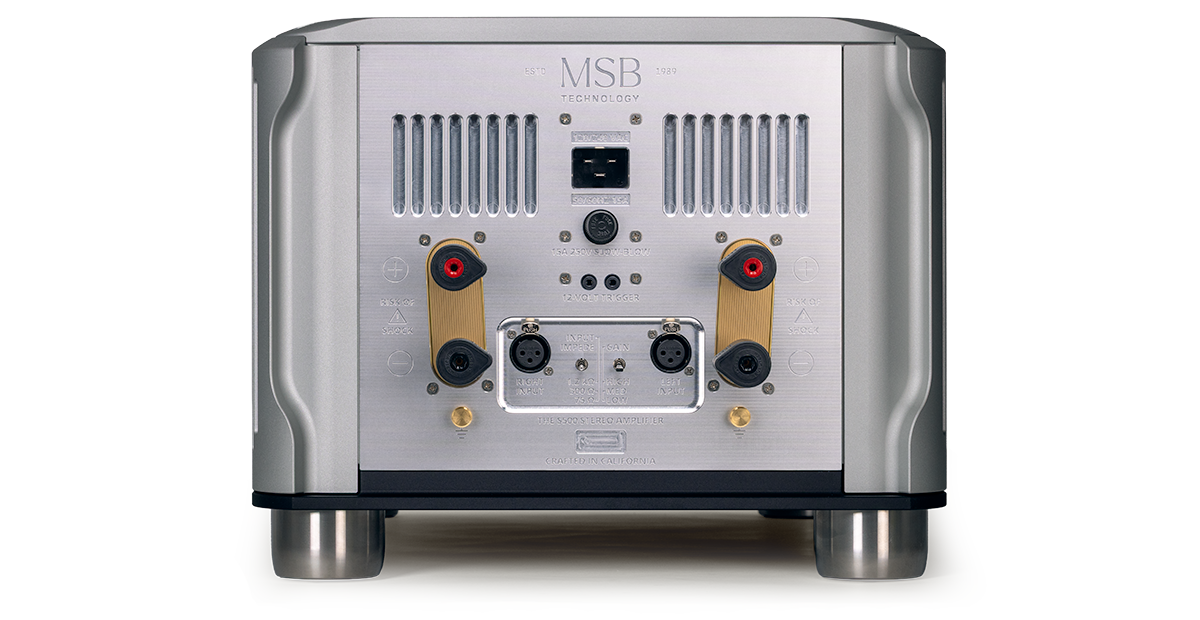

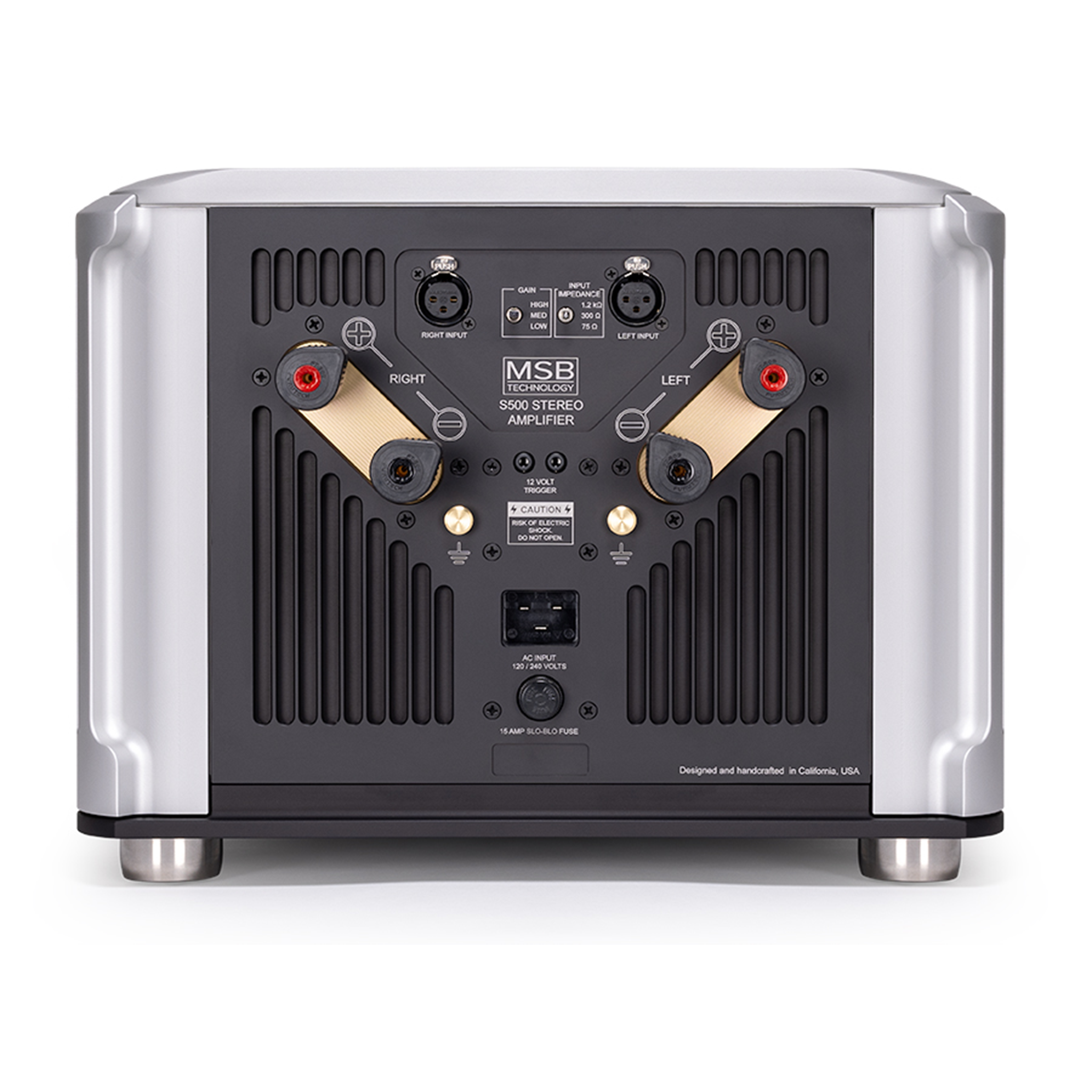

Intuitively oriented speaker lugs direct your speaker cables in the right direction without strain. Multiple ground posts enable EMI reduction strategies, including shielded cables and system star grounds. A 20 amp IEC connection is provided for high current delivery, while three gain settings optimize dynamic range for any speaker.
TECHNICAL SPECIFICATIONS
| Static Power Consumption | 270 Watts |
| Operating Voltage Range | 120/240V (Auto switching), 100V (Fixed) |
| Fuse | 1/4"x1-1/4" 15A 250V Slow Blow |
| Input | 2x XLR Input |
| Output | 1x Binding post set per channel |
| Controls |
|
| Continuous Power Output (8Ω) < 1% distortion | 500 W |
| Continuous Power Output (4Ω) < 1% distortion | 900 W |
| Frequency Response (20 to 20kHz) | ±0.025dB |
| Signal to Noise (20 to 22kHz) | >136dB (>140dBA) |
| Equivalent Input Noise (22kHz BW) | 0.5μV |
| Crosstalk @ 2kHz | <-110dB |
| Low Gain (75Ω source impedance) | 16.2dB |
| Medium Gain (75Ω source impedance) | 22.2dB |
| High Gain (75Ω source impedance) | 28.2dB |
| Input Impedance (User Selectable) | 75Ω / 300Ω / 1.2kΩ |
| Output Impedance (20 to 20kHz) | 0.07Ω |
| Topology - Input/Gain Stage |
|
| Topology - Output Stage |
|
| Chassis Dimensions |
|
| Shipping Dimensions |
|
| Included Accessories |
|
