DMP-A8

---

Streaming Services at Your Fingertips

Access your favorite music services directly on the DMP-A8, including Tidal, Qobuz, and Amazon Music. Plus, explore a wide range of high-quality online music platforms through third-party apps like Spotify and Apple Music. Control it all with ease using the DMP-A8's intuitive touchscreen or the EverSolo app.

Network Streaming

Roon Ready, Spotify Connect, Tidal Connect, DLNA, and AirPlay are supported by the DMP-A8. High quality music can be streamed from devices on your network, make it simpler to enjoy online music services and easier to playback your favourite songs at home.

Your Library Playback

Experience seamless local music playback and streamlined file management with Eversolo Music Library. Easily import music files from local hard drives or network storage, and let the system automatically retrieve metadata from the cloud. Your music library will be expertly organized by artist, album, genre, and sample rate, making it effortless to search and discover new favorites.

Multiple Network Protocols

DMP-A8 not only has two high-speed USB 3.0 ports, an SSD slot for local storage expansion, but also supports NFS, SMB v1/v2/v3, and UP sharing protocols, allowing users to browse and play multimedia content saved on NAS or network drives connected in the same network. Even high data rate DSD512 master files can be played without stuttering, provided your network is stable and up to the task.

Add Your Own Storage

A M.2 NVME 3.0 2280 SSD (solid state drive) slot is built in to allow installation of a solid-state drive. The maximum storage is 4TB. Faster, stable, and without noise, this adds flexibility should you be interested in high-quality local music playback.

Media Management System

Effortlessly manage your media files with the DMP-A8's robust management system. Perform editing operations like copying, pasting, cutting, and deleting directly on the device, without needing a computer. Plus, enjoy flexible connectivity options:

- USB OTG for easy file transfer between PC and DMP-A8
- Internal SMB sharing for seamless media sharing between devices on your network

The DMP-A8 doubles as a network storage drive, streamlining your media playback and management experience.

CD Playback

Enjoy seamless CD playback on the DMP-A8 by connecting a compatible external USB optical disc drive. The built-in CD Rip app ensures lossless audio data transfer, thanks to its advanced data validation and error correction features.

With intelligent album and song matching, the app effortlessly rips tracks from officially released CDs and automatically generates album and artist information, making it easy to digitize your CD collection.

Big LCD Touchscreen

Equipped with a large 6" LCD high-definition touchscreen, DMP-A8 is a powerful streaming but remains intuitive to use. Thanks to an exquisite user interface, as well as on-screen touch controls for system settings, local music library management, and third-party app access, it's as smooth and easy to use as your smartphone.

Smart App

Android, iPhone, and iPad control apps have been developed for the DMP-A8. In addition to basic playback control and system settings, they also support asynchronous viewing of music library data and menus, which is convenient for music playback and data searching. If you're far away from the DMP-A8, there's no worry — just use the app and its mirroring function to control the streamer using the interface you already know.

VU Meters

Experience music in a whole new way with the DMP-A8's stunning VU meters. Multiple dynamic designs bring your music to life, visually enhancing your listening experience.

Immerse yourself in real-time music displays, showcasing full-format audio, including DSD. This interactive feature adds a captivating visual dimension to your music enjoyment.

Aluminum Chassis

DMP-A8 is made of aviation-grade CNC aluminum, creating a stable chassis structure. Enjoy a combination of modern visual appearance and classic build quality, with brushed panels and a frosted anodized body.

EOS Audio Engine

EOS (Eversolo Original Sampling-Rate Audio Engine) has been developed by Eversolo engineers, with the goal of outputting the original sampling rate on the Android operating system. DMP-A8's playback completely bypasses typical Android SC restrictions, enabling the direct audio output of third-party apps such as Apple Music.

Master Recording Playback

Almost all ultra-high sampling master recording formats are supported by DMP-A8, including CD-quality formats (FLAC, WAV, APE), DSD512 (.dsf/.dff/.iso/.dst) stereo/multichannel, and MQA.

MQA Full Decoding

DMP-A8 includes MQA (Master Quality Authenticated) technology through USB, Optical, and Coaxial, which enables you to play back MQA audio files and streams, delivering the sound of the original master recording.

Hybrid DACs

with Separated Digital (AK4191EQ) and Analog (AK4499EX) Sections

DMP-A8 features an industry-leading two-chip DAC solution from AKM, stereo D/A conversion. The design minimizes the effects of digital noise within the analog output, resulting in a perceived improvement in signal to noise ratio. DSD512, PCM768 @32bit, and MQA hardware decoding are supported.

Dual High-Precision Clocks

Much like the upgraded DMP-A6 Master Edition, the DMP-A8 features two ultra-low phase noise Accusilicon femtosecond high-precision clocks for audio decoding circuit (45.1584MHz and 49.152MHz), which correspond to the decoding of 44.1KHz and 48KHz multiplied sampling rates respectively. This effectively suppresses Jitter, ensuring highly accurate conversion and decoding of digital-to-analog audio signals, providing ultra-high dynamic range and resolution for output. Upgraded OPA1612 op-amps with ultra-low noise and low distortion (0.000015% at 1kHZ) further this effect.

Ideal Implementation

Just as — if not more — important as the DAC chips is how they've been implemented in a system. Thanks to EverSolo development engineers' rich experience in analog circuit design, DMP-A8 has a professional-grade calibration and circuit design. The total harmonic distortion ratio which has been measured is -120dB (0.00009%), while signal-to-noise ratio and dynamic range are 128dB. These indicators are a core foundation for sound quality.

Flexible and Powerful DSP Functionality

New to DMP-A8 are Digital Signal Processing options. Incorporating a robust DSP module, A8 supports DSP volume control, Parametric EQ, Finite Impulse Response filtering, High Pass and Low Pass filters, loudness enhancement, compressor, and delay. The DSP module supports up to PCM 192Khz. PCM and DISD formats with a sampling rate higher than this will bypass the DSP. DSP is only for internal player, network streaming, optical input, coaxial input, USB input, Bluetooth input and ARC input, and takes effect only when producing analog output.

Abundant Digital Filters

Choose from a variety of digital filter modes in the DAC setting menu to meet different demands and preferences. DMP-A8 features 7 PCM filters and 4 DSD filters from which to select.

Qualcomm QCC5125 Bluetooth Module

In addition to wired inputs, DMP-A8 also features a built-in Bluetooth audio receiver in the form of the Qualcomm QCC5125 module. Thanks to support for the full suite of SBC, AAC, aptX, aptX LL, aptX HD, and LDAC codecs, you'll know you're getting the best possible Bluetooth quality when you pair your mobile phone, tablet, or computer.

XMOS 316 Processor

The 3rd generation XMOS 316 has faster speed and better USB bandwidth than previous processors, which ensures lossless transmission for high-definition audio data. The USB output supports DSD512 Native, PCM768@32bit, and MQA full decoding. Optical and Coaxial outputs support DSD64 (DoP) and PCM192@24Bit.

Handpicked Audio Components

The sound quality of DMP-A8 analog output is monitor-level. The primary elements of the audio circuit are excellent, including WIMA capacitors from Germany, NICHCON dedicated audio capacitors, Murata chip capacitor and Omron relays from Japan, TI Audio Operational Amplifiers from the USA, and more. The goal is to provide more authentic and pure sound performance.

Resistor to Resistor (R2R) Volume Control Circuit

A fully balanced analog volume adjustment network composed of precision resistors and relays achieves accurate volume control, effectively suppressing distortion and noise in the analog signal. It also features volume protection, automatically reducing excessive volume to the designated safe level during startup or input interface switching. The incorporation of R2R analog volume control ensures that the DAC can operate at its optimal state continuously.

Fully Balanced Analog Preamplifier

The DMP-A8 is equipped with a high-performance fully balanced preamplifier circuit, supporting XLR and RCA analog inputs. It also features a + 10dB analog gain and, when combined with the R2R analog volume control network, ensures ultra-low noise and distortion for the output.

Dual Power Supply Design

In order to eliminate interference and noise between the system circuit and the audio circuit, and to enhance sound purity, separate designs are employed for the power supply of the system and the audio circuit. A linear power supply is composed of a multi-winding toroidal transformer, specifically designed to match the characteristics of analog audio circuits. A high-quality switching power supply is tailored for the system circuit, significantly reducing ripple and magnetic leakage interference, and providing strong support for high-quality digital audio processing. Furthermore, it incorporates a patented smart switching technology for the linear power supply voltage input, enabling compatibility with voltages worldwide without flipping switches.

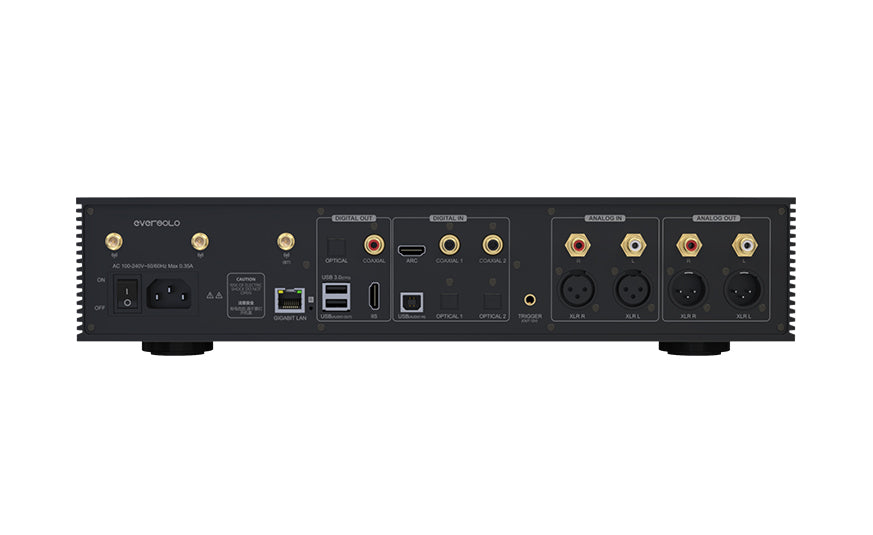

Rich Inputs and Outputs

DMP-A8 can be used as a digital hub to connect with external high-end DACs by HDMI IIS, USB, optical, and coaxial outputs. As a DAC, it supports a wide range of digital inputs: HDMI eARC for television, two coaxial, two optical, plus USB B input to connect PCs and mobile devices. As a high-performance preamplifier, it supports analog input via XLR and RCA. It also supports aptX HD Bluetooth audio input, making it easy to connect with various digital audio sources. The DMP-A8 can be directly paired with active speakers or power amplifier via analog preamp outputs RCA and XLR. The new Trigger out port can achieve the linkage with power amplifier systems.

HDMI ARC Input

The DMP-A8, equipped with HDMI ARC (Audio Return Channel) input, can be connected to display devices such as TVs and projectors that have HDMI ARC capability. This allows the separation and transfer of audio signals from the HDMI signal to the DMP-A8, providing your TV with a higher quality sound.

HDMI-IIS Output

DMP-A8 supports IIS output, which can connect to external DACs with IIS input, supporting PCM 768K and DSD512 with the highest sampling rate.

SPECIFICATIONS

Model	EVERSOLO DMP-A8
Display	6" LCD touchscreen
Internal Memory	4GDDR4 +64GeMMC
DAC	AK4191EQ+AK4499EX
Audio Processor	XMOS XU316
Op-amp Chip	OPA1612
Power Supply	High-quality, low-noise linear + digital dual power supply
SSD	M.2 NVME 3.0 2280 protocol, up to 4TB
USB-A Port	USB3.0*2
Ethernet	RJ-45(10/100/1000Mbps)
WiFi	WiFi 2.4G+5G dual band
Playback and DAC Decoding	Support up to stereo DSD512, PCM 768KHz 32Bit
Music Service	Tidal, Qobuz, Highresaudio, Amazon Music, Deezer, Radio Paradise, WebDAV, UPnP
Streaming	Air Play, DLNA, Spotify, Tidal Connect, Qobuz Connect etc.
Bluetooth Audio Input	BLuetooth BT5.0, support SBC/AAC/aptX/aptX LL/aptX HD/LDAC
USB-B Audio Input	Supports Windows (10, 11), Android, IOS. Support up to stereo DSD512, PCM 768KHz 32Bit.
Optical/Coaxial Audio Input	Support up to stereo PCM 192KHz 24Bit, Dop64
Optical/Coaxial Audio Output	Support up to stereo PCM 192KHz 24Bit, Dop64
HDMI ARC	Support up to stereo PCM 192KHz 24Bit
Control Method	Mobile App，Touch screen control，IR+Bluetooth remote control
USB Audio Output	Support up to stereo DSD512，PCM 768KHz 32Bit
IIS Output	Support up to stereo DSD512, PCM 768KHz 32Bit
Analog preamp audio input	XLR(Balanced)*1+RCA(nbalanced), Maximum Gain +10dB
Analog Audio Output	Preamp Audio Output:XLR(Balanced)+RCA(UnBalanced)
XLR Output Audio Characteristics	Output level: 4.2V Frequency response: 20Hz~20KHz (±0. 25dB) Dynamic range: > 128dB SNR: >128dB THD+N: <0.00009%(-120dB) @No-wt Crosstalk: >-121dB
RCA Output Audio Characteristics	Output level: 2.1V Frequency response: 20Hz~20KHz (±0. 25dB) Dynamic range: > 125dB SNR: >125dB THD+N: <0.00010%(-119dB)@A-WT Crosstalk: >-121dB
PSU	AC 110~240V 50/60Hz
Rated Power	16W
Dimensions	W 388mm*L 248mm* H 90mm
Packing List	Power cable*1, Remote Control*1，Screwdriver*1，user manual*1
