Features
• High performance proprietary FPGA-based digital decoding without digital filter
• Discrete R2R ladder DACs with low noise precision resistors
• Galvanic isolated S/PDIF - AES/EBU Digital input
• Jitter free digital interface AQlink (I2S protocol), uncompromising digital connection to La Diva cd transport
• Zero S/PDIF Jitter design, digital receiver stage PLL (phase locked loop) technology
• Discrete Regulator (MOSFET, J-FET, BJT) for analog and digital DAC’s power supply
• RJ45 (AQlink) input connection, employs CAT6 cable
• 2 separate low noise power transformers, one for the analog and one for the digital section
• MODULAR DESIGN with upgradeable multi board system
• Fully discrete analog stage, not even a single Op-Amp is used
• Proprietary USB Firmware / driver :
Apple MAC OS - Linux OS : USB asynchronous native support, no need to install drivers software
• Fully upgradeable asynchronous USB module with resolution 44.1kHz to 384kHz PCM up to 24 bits, DSD64, DSD128, operates with computers running OSX 10.7 and above, WINDOWS 10 , 8 , 7 and XP ASIO - WASAPI bit perfect high-speed
• AQ-i modular input: D111 XLR | D112 AT&T ST Fiber | D113 RCA | D114 TOSLINK with High Resolution platform

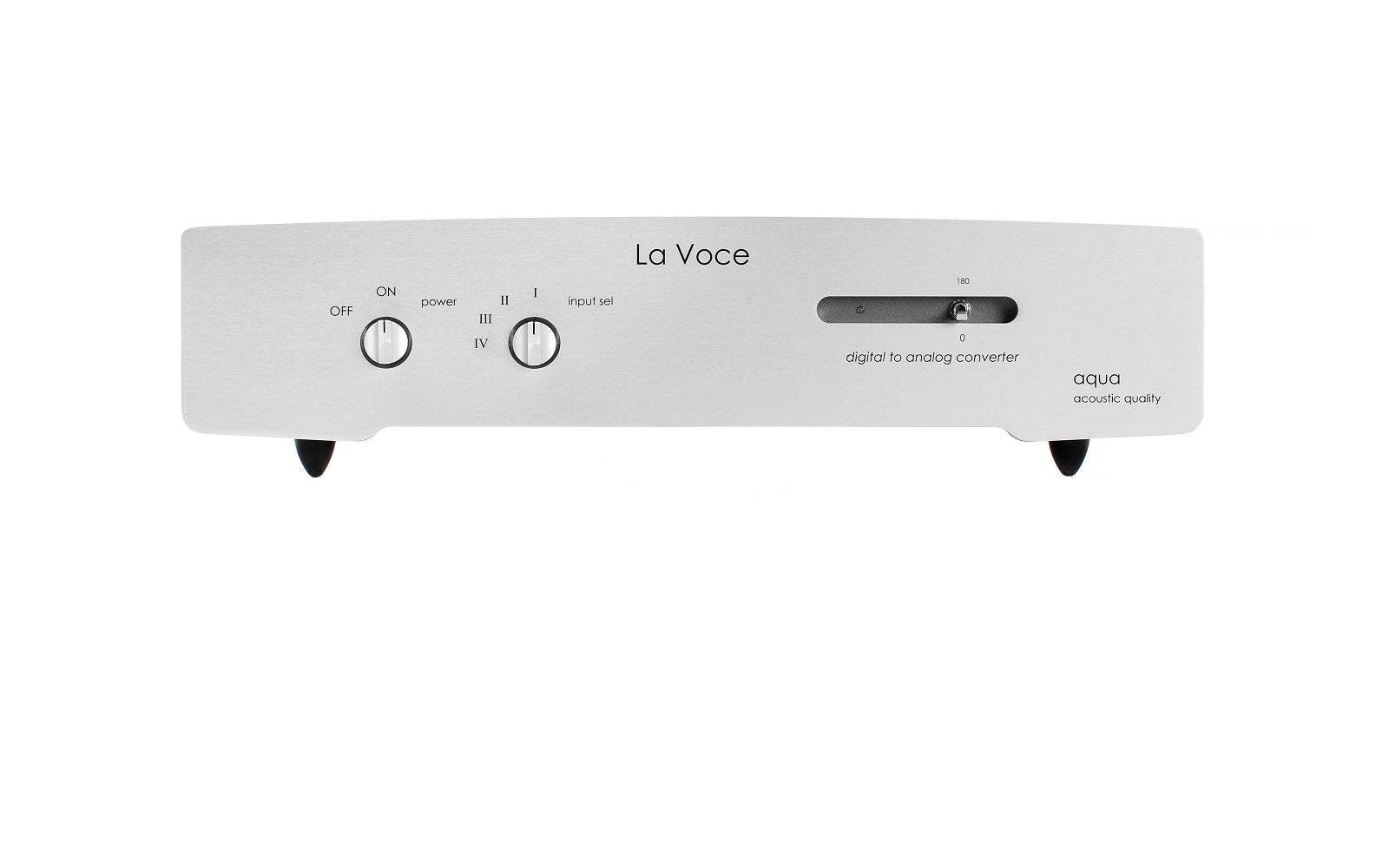

• Digital phase selector on front panel
• High-quality parts selected for sound quality:
- 105° long life capacitors
- low noise Metal Foil ultra-precision resistors
- metallized film pulse capacitor
- ultra-fast diodes
• Aluminum anti-resonant cabinet with Nextel
• Designed and handmade in Italy

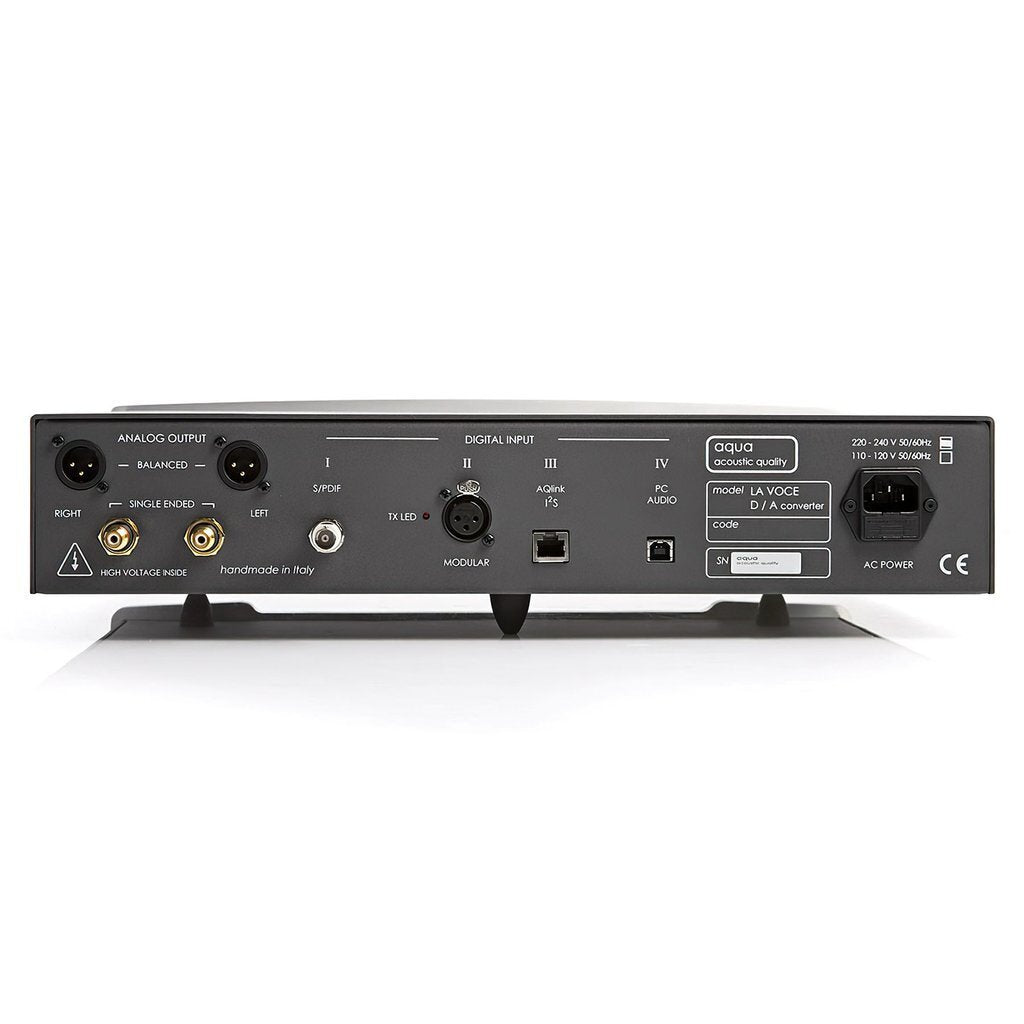

Input:
- RJ45 AQlink (I2S serial bus) - PCM 24 bit / 384kHz – DSD64, DSD128 via DoP
- BNC coax (S/PDIF) 75 ohm - PCM 24 bit / 192kHz – DSD64 via DoP
- USB port - PCM 24 bit / 384kHz – DSD64, DSD128 via DoP
- MODULAR INPUT upgradeable, options:
- AES/EBU balanced 110 ohm - PCM 24 bit / 192kHz
– DSD64 via DoP
- RCA coax (S/PDIF) 75 ohm - PCM 24 bit / 192kHz – DSD64 via DoP
- AT&T (ST Fiber) - PCM 24 bit / 192kHz – DSD64 via DoP
- Optical TOSLINK - PCM 24 bit / 96kHz
Analog output:
- RCA single-ended
- XLR balanced asymmetrical
